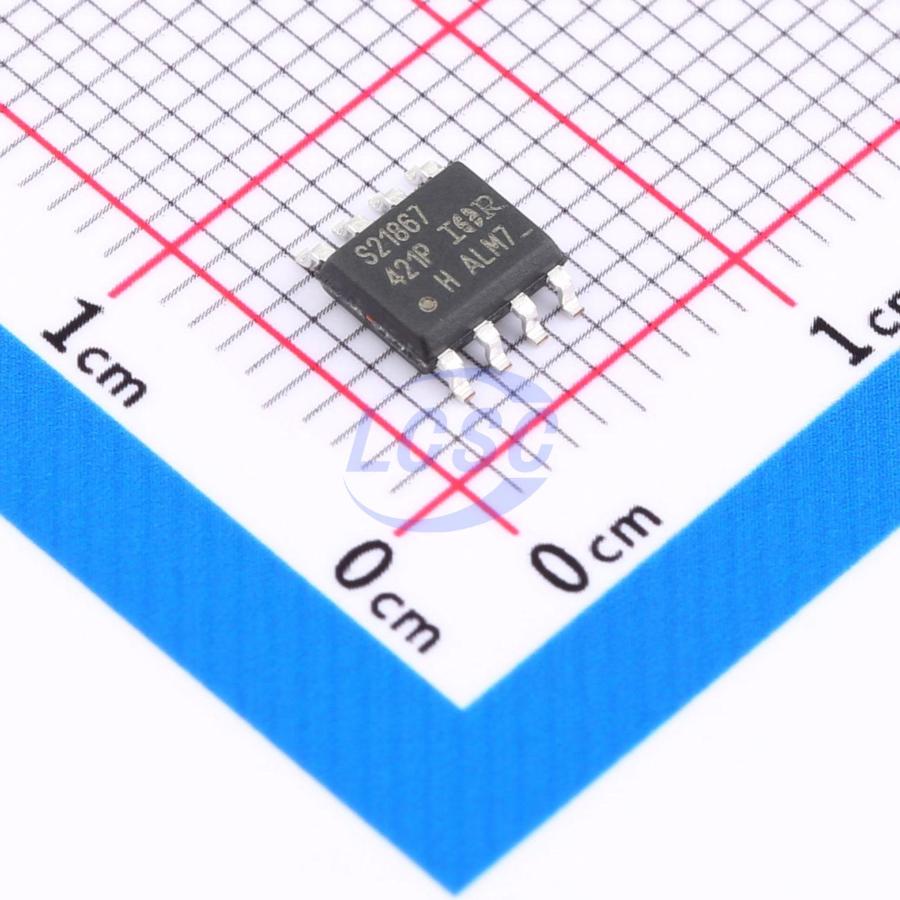

IRS21867STRPBF
5V~20V 4A 4A SOIC-8 Gate Drivers RoHS
HIGH AND LOW SIDE DRIVER
- Manufacturer
- Infineon
- Manufacturer part #
- IRS21867STRPBF
- Store part #
- C52290
- Package / case
- SOIC-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,594 in stock
#C52290
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹162.24 | ₹162.24 |
| 10+ | ₹144.55 | ₹1,445.50 |
| 30+ | ₹127.95 | ₹3,838.50 |
| 100+ | ₹115.43 | ₹11,543.00 |
| 500+ | ₹93.21 | ₹46,605.00 |
| 1,000+ | ₹90.63 | ₹90,630.00 |
1 × ₹162.24
₹162.24
excl. GST
₹191.44 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IRS21867STRPBF
₹162.24 for 1 + GST
Specifications
- Low Level Delay Time
- 170ns
- High Level Delay Time
- 170ns
- Quiescent Current
- 120uA
- Voltage - Supply
- 5V~20V
- Operating Temperature
- -40℃~+150℃
- Driven Configuration
- High Side;Low Side
- Current - Output Low(IOL)
- 4A
- Rise Time
- 22ns
- Fall Time
- 18ns
- Features
- Interleaved conduction protection
- Current - Output High(IOH)
- 4A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.237 g
Overview
The IRS21867 is a high voltage, high speed power MOSFET and IGBT driver with independent high and low side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. Low VCC operation allows use in battery powered applications. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high-side configuration which operates up to 600V.
Applications
- Battery powered equipment
- Hand-tools
- Fork-lifts
- Golf-carts
- RC Hobby Equipment
- E-bike
Key features
- Floating channel designed for bootstrap operation
- Fully operational to +600V
- Tolerant to negative transient voltage, dV/dt immune
- Low VCC operation
- Gate drive supply range from 5V to 20V
- Undervoltage lockout for both channels
- 3.3V and 5V input logic compatible
- Matched propagation delay for both channels
- Logic and power ground +/-5V offset
- Lower di/dt gate driver for better noise immunity
- Output source/sink current capability 4.0A (Typ.)
- Leadfree, RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | EG21867#C20416238EG Micro · SOP-8 | EG Micro | SOP-8 | 2,093 | ₹70.48 · 2,093 in stock | View |
 | NSG21867#C41414500WXNSIC · SOP-8 | WXNSIC | SOP-8 | 1,450 | ₹80.23 · 1,450 in stock | View |
 | FAN7390MX-MNS#C50646515Minos · SOP-8 | Minos | SOP-8 | 3,908 | ₹89.82 · 3,908 in stock | View |
 | DOS21867#C52140035DOINGTER · SOIC-8 | DOINGTER | SOIC-8 | 700 | ₹87.21 · 700 in stock | View |
| NSG2203U#C52975880WXNSIC · SOP-8 | WXNSIC | SOP-8 | 3,699 | ₹62.23 · 3,699 in stock | View | |
