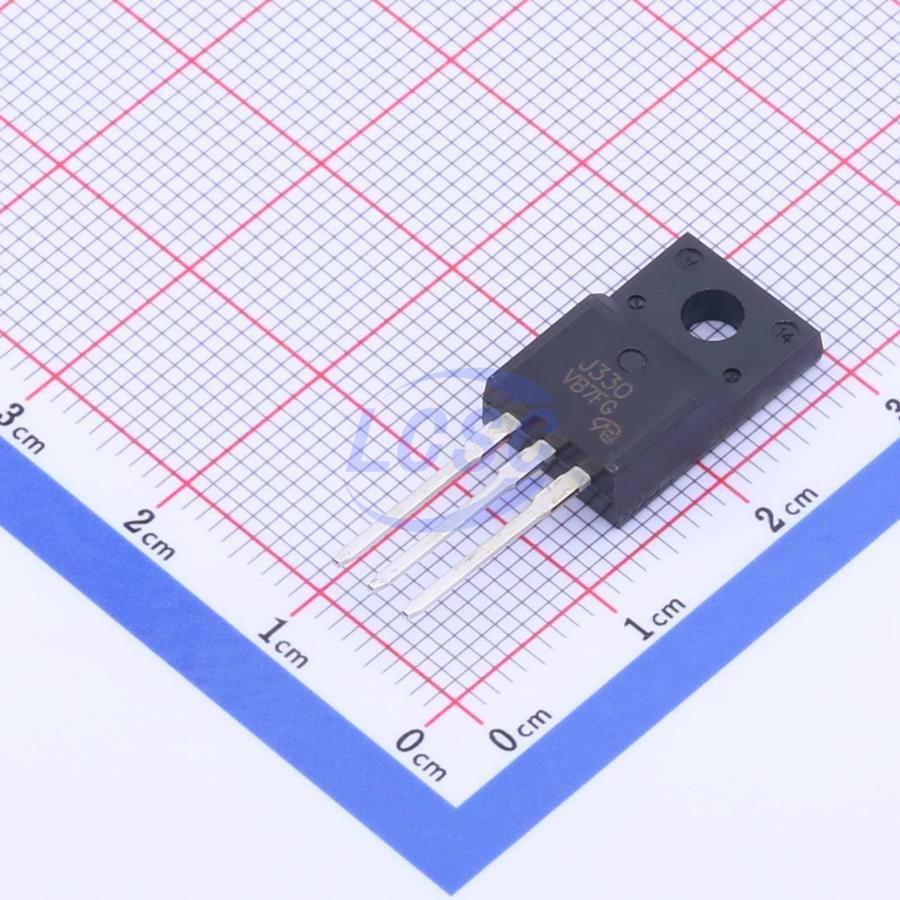

J330-VB
P-Channel 60V 30A 41.7W Through Hole TO-220F
TO-220FRoHSActive
MOSFET P-CH 60V 30A TO-220F
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- J330-VB
- Store part #
- C2680736
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C2680736
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹104.99 | ₹104.99 |
| 10+ | ₹85.84 | ₹858.40 |
| 50+ | ₹71.87 | ₹3,593.50 |
| 100+ | ₹62.49 | ₹6,249.00 |
| 500+ | ₹56.89 | ₹28,445.00 |
| 1,000+ | ₹53.90 | ₹53,900.00 |
1 × ₹104.99
₹104.99
excl. GST
₹123.89 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
J330-VB
₹104.99 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 230pF
- Current - Continuous Drain(Id)
- 30A
- Ciss-Input Capacitance
- 1.765nF
- Pd - Power Dissipation
- 41.7W
- Reverse Transfer Capacitance (Crss)
- 180pF
- RDS(on)
- 50mΩ@10V;60mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 67nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.65 g
Overview
Key features
- Halogen-free product as defined by IEC 61249-2-21
- Trench power MOSFET
- 100% Rg and UIS tested
- RoHS compliant per directive 2002/95/EC
