VBsemi ElecDatasheet (PDF)

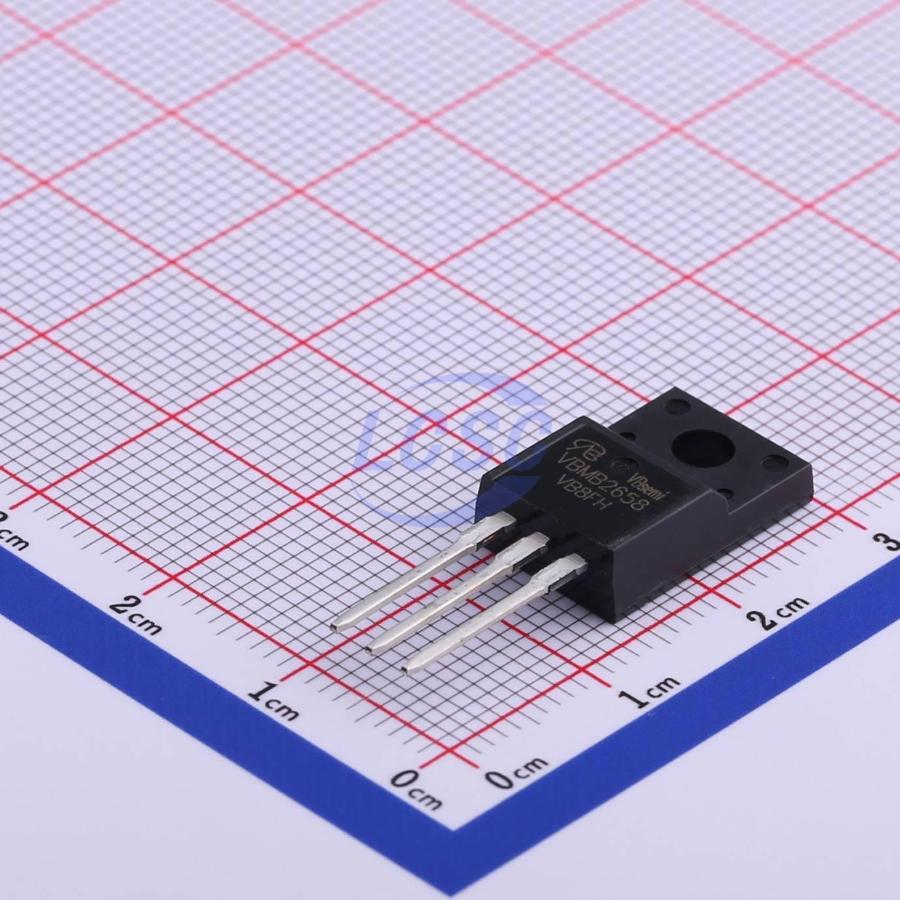

VBMB2658
P-Channel 60V 30A 41.7W Through Hole TO-220F
TO-220FRoHSActive
MOSFET P-CH 60V 30A TO-220F
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBMB2658
- Store part #
- C481043
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
22 in stock
#C481043
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹102.77 | ₹102.77 |
| 10+ | ₹83.63 | ₹836.30 |
| 50+ | ₹73.94 | ₹3,697.00 |
| 100+ | ₹64.47 | ₹6,447.00 |
| 500+ | ₹58.70 | ₹29,350.00 |
| 1,000+ | ₹55.82 | ₹55,820.00 |
1 × ₹102.77
₹102.77
excl. GST
₹121.27 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
VBMB2658
₹102.77 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+100℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 230pF
- Current - Continuous Drain(Id)
- 30A
- Ciss-Input Capacitance
- 1.765nF
- Pd - Power Dissipation
- 41.7W
- Reverse Transfer Capacitance (Crss)
- 180pF
- RDS(on)
- 50mΩ@10V;60mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 67nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.37 g
Overview
Key features
- Halogen-free as defined by IEC 61249-2-21
- Trench power MOSFET
- 100% Rg and UIS tested
- RoHS compliant per directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 2SJ265-VB#C19188193VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 27 | ₹118.65 · 27 in stock | View |
 | J330-VB#C2680736VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 40 | ₹104.99 · 40 in stock | View |
 | 2SJ649-VB#C29778757VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 27 | ₹123.00 · 27 in stock | View |
 | RJJ0621DPP-E0-VB#C29779005VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 10 | ₹102.93 · 10 in stock | View |
 | AOTF409-VB#C19188198VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 20 | ₹113.87 · 20 in stock | View |
