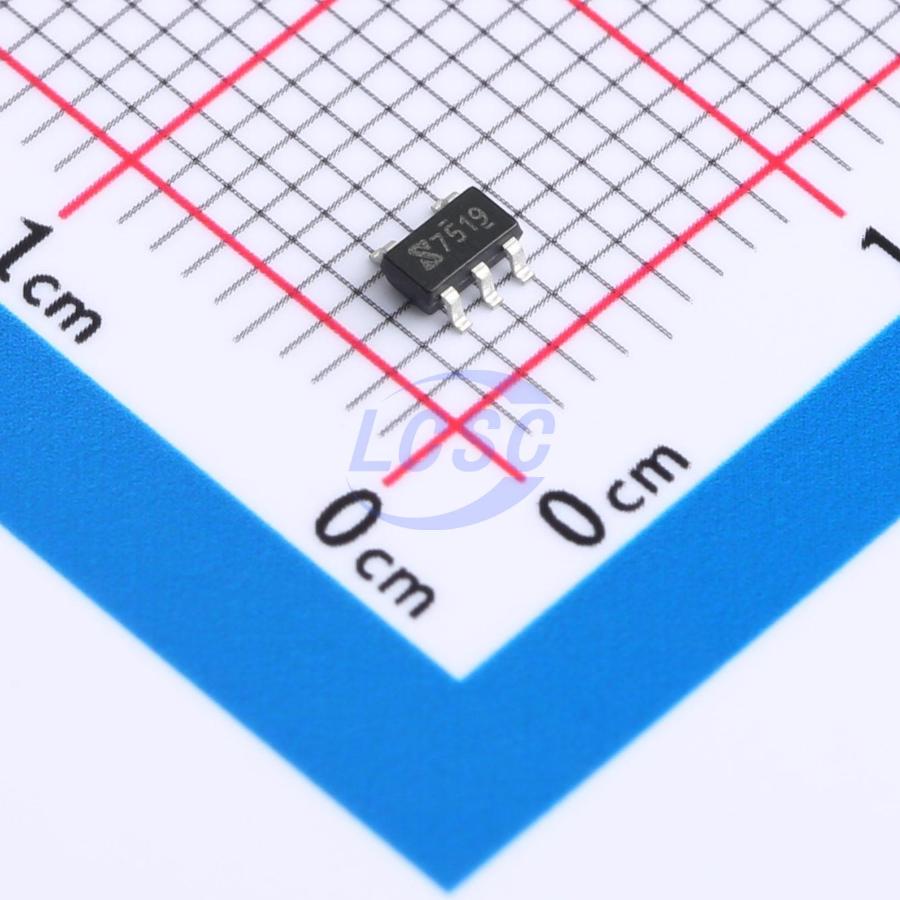

JSM27519
Gate Driver IC MOSFET IGBT SOT-23-5
4A Single-Channel, Low-Side, Non-Inverting Gate Driver
- Manufacturer
- JSMSEMI
- Manufacturer part #
- JSM27519
- Store part #
- C19077364
- Package / case
- SOT-23-5
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,175 in stock
#C19077364
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹49.57 | ₹247.85 |
| 50+ | ₹38.87 | ₹1,943.50 |
| 150+ | ₹34.45 | ₹5,167.50 |
| 500+ | ₹28.79 | ₹14,395.00 |
| 3,000+ | ₹26.26 | ₹78,780.00 |
| 6,000+ | ₹24.58 | ₹1,47,480.00 |
5 × ₹49.57
₹247.85
excl. GST
₹292.46 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
JSM27519
₹247.85 for 5 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Low Level Delay Time
- 25ns
- High Level Delay Time
- 25ns
- Quiescent Current
- 280uA
- Input Logic Level - High
- 2.7V
- Voltage - Supply
- 5V~25V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Low Side
- Current - Output Low(IOL)
- 4A
- Rise Time
- 5ns
- Fall Time
- 4ns
- Features
- Enable shutdown
- Current - Output High(IOH)
- 4A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.024 g
Overview
The JSM27519 device is a low voltage power MOSFET and IGBT in phase gate driver. Proprietary latch-immune of CMOS technology enables single-chip integrated architectures with high robustness. The JSM27519 logic input level is compatible with CMOS or TTL logic output levels down to 3.3V. The output driver has Internal Undervoltage Lockout (UVLO) circuitry with hysteresis and buffer stage of output current. The JSM27519 is designed to operate over a wide VCC range of -10V to 25V and wide temperature range of -40°C to 125°C.
Applications
- Switch-Mode Power Supplies
- General Gate Driver
- Driving MOSFETs and IGBTs
Key features
- Input output in-phase
- Compatible with 3.3V、5V、15V input logic
- -10 to 25V Single-Supply Range
- High capacitance load driving capability
- Operating Temperature Range of -40 to 125°C
- Undervoltage Lockout
- Undervoltage Lockout turn-on threshold 4.5V
- Undervoltage Lockout turn-off threshold 4.2V
- Turn on/Turn off Delays:
- Ton/Toff = 25ns / 25ns
- 4-A Peak Source and Sink-Drive Current
