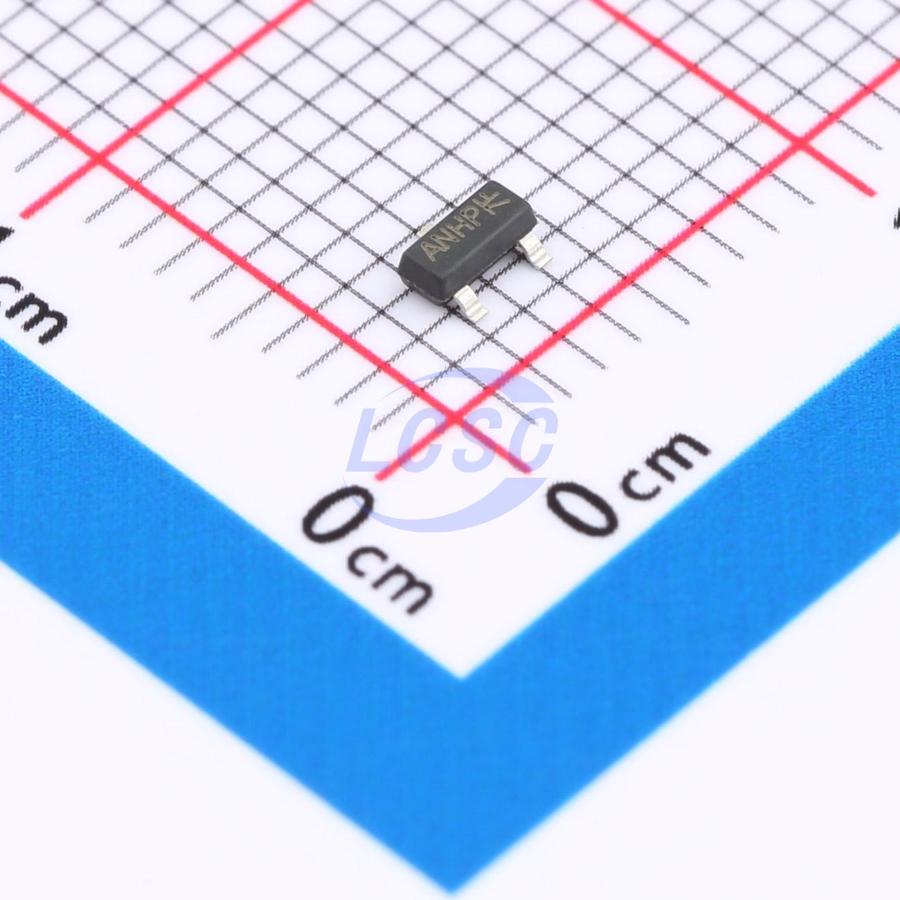

JSM3420S
20V 6A 1.56W Surface Mount SOT-23
SOT-23ROHS CompliantActive
MOSFET 20V 6A SOT-23
- Manufacturer
- JSMSEMI
- Manufacturer part #
- JSM3420S
- Store part #
- C963396
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,310 in stock
#C963396
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.69 | ₹86.90 |
| 100+ | ₹6.79 | ₹679.00 |
| 300+ | ₹5.83 | ₹1,749.00 |
| 3,000+ | ₹5.44 | ₹16,320.00 |
| 6,000+ | ₹4.87 | ₹29,220.00 |
| 9,000+ | ₹4.58 | ₹41,220.00 |
10 × ₹8.69
₹86.90
excl. GST
₹102.54 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
JSM3420S
₹86.90 for 10 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 6A
- Ciss-Input Capacitance
- 600pF
- Pd - Power Dissipation
- 1.56W
- Reverse Transfer Capacitance (Crss)
- 60pF
- RDS(on)
- 19mΩ@1.8V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 7.2nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1.1V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.057 g
Overview
Applications
- Power Management
- Battery-Powered Systems
- Automotive Electronics
- Portable Devices
- Load Switches
- Digital Cameras
Key features
- ID = 6A at VGS = 10V
- ID = 5A at VGS = 4.5V
- RDS(on) = 19mΩ (typ) at VGS = 10V
- RDS(on) = 23mΩ (typ) at VGS = 4.5V
- RDS(on) = 31mΩ (typ) at VGS = 2.5V
- RDS(on) = 42mΩ (typ) at VGS = 1.8V
- Low on-resistance
- Low input capacitance
- Fast switching speed
- Low input/output leakage current
Alternatives
Similar parts — check the datasheet before substituting.
