PMV40UN2R-JSM

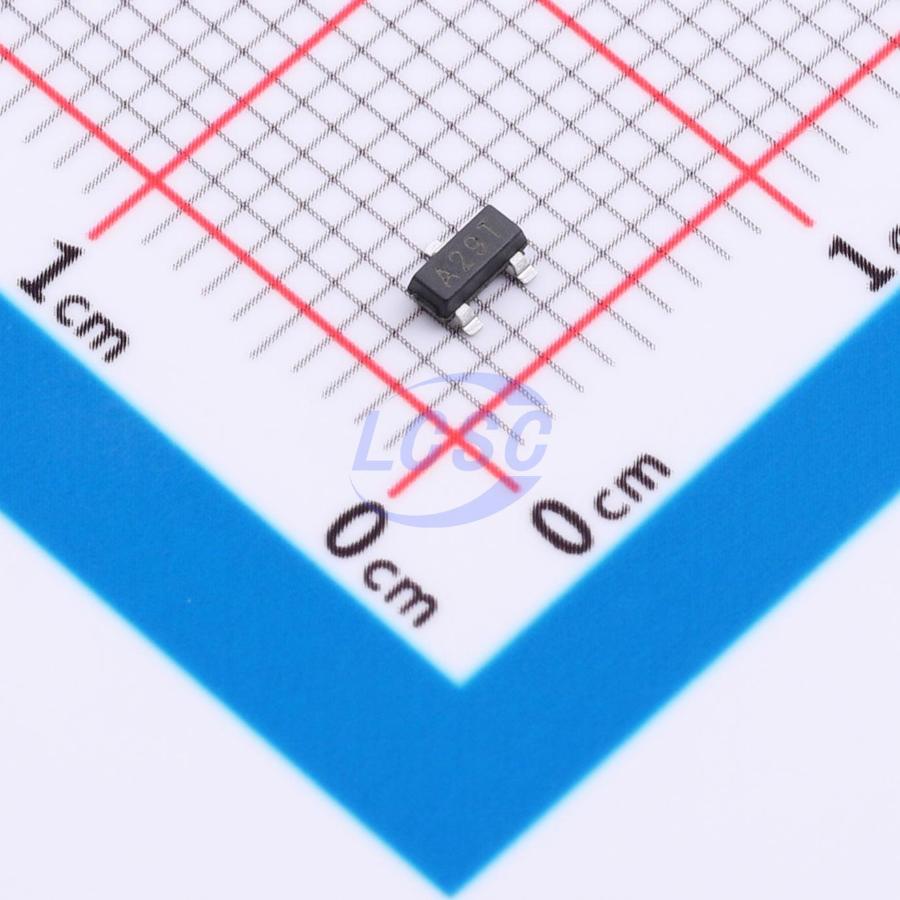

1.56W 20V 6A 19mΩ@10V 1 N-channel N-Channel SOT-23 Single FETs, MOSFETs RoHS
SOT-23ROHS CompliantActive
- Manufacturer
- JSMSEMI
- Manufacturer part #
- PMV40UN2R-JSM
- Store part #
- C53114086
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,275 in stock
#C53114086
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.31 | ₹56.55 |
| 50+ | ₹9.01 | ₹450.50 |
| 150+ | ₹7.86 | ₹1,179.00 |
| 500+ | ₹7.00 | ₹3,500.00 |
| 3,000+ | ₹6.31 | ₹18,930.00 |
| 6,000+ | ₹5.97 | ₹35,820.00 |
5 × ₹11.31
₹56.55
excl. GST
₹66.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PMV40UN2R-JSM
₹56.55 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 113pF
- Ciss-Input Capacitance
- 600pF
- Pd - Power Dissipation
- 1.56W
- Drain to Source Voltage
- 20V
- Configuration
- Standalone
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 6A
- Reverse Transfer Capacitance (Crss)
- 60pF
- RDS(on)
- 19mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 7.2nC
- Vgs
- ±10V
- Gate Threshold Voltage (Vgs(th))
- 750mV
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
Applications
- Power Management
- Automotive Electronics
- Portable Devices
- Load Switch
- Digital Signal Controller
Key features
- ID = 6A at VGS = 10V
- ID = 5A at VGS = 4.5V
- Typical RDS(on) = 19mΩ at VGS = 10V
- Typical RDS(on) = 23mΩ at VGS = 4.5V
- Typical RDS(on) = 31mΩ at VGS = 2.5V
- Typical RDS(on) = 42mΩ at VGS = 1.8V
- Low on-resistance
- Low input capacitance
- Fast switching speed
- Low input/output leakage current
