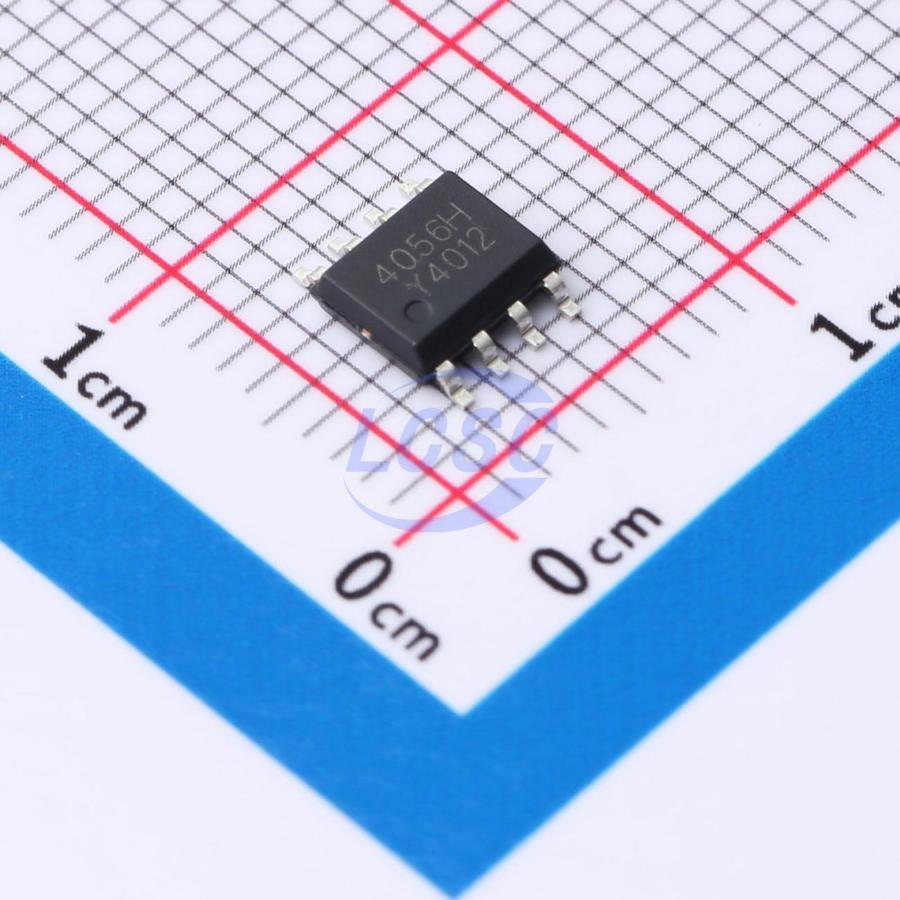

JTD4056H
Linear Charging IC Lithium Battery ESOP-8
1000mA single-cell lithium battery charger IC
- Manufacturer
- JTD
- Manufacturer part #
- JTD4056H
- Store part #
- C42443474
- Package / case
- ESOP-8
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,120 in stock
#C42443474
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.42 | ₹74.20 |
| 100+ | ₹5.87 | ₹587.00 |
| 300+ | ₹5.09 | ₹1,527.00 |
| 1,000+ | ₹4.51 | ₹4,510.00 |
| 4,000+ | ₹4.05 | ₹16,200.00 |
| 8,000+ | ₹3.81 | ₹30,480.00 |
10 × ₹7.42
₹74.20
excl. GST
₹87.56 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
JTD4056H
₹74.20 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 1.2uA
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.5V~6.5V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Overvoltage protection;Soft-start;Under-voltage lockout
- The Chip Type
- Charging IC
- Charge Current - Max
- 1A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.167 g
Overview
The 4056H is a single-cell lithium-ion battery constant-current/constant-voltage linear charger featuring 30V input voltage tolerance and overcharge protection. Its simple external application circuit makes it ideal for portable devices, compatible with both USB power supply and adapter power supply operation. The device employs an internally integrated PMOSFET architecture with a reverse-charge prevention circuit, eliminating the need for an external isolation diode. Its thermal feedback function automatically adjusts the charging current to limit the die temperature during high-power operation or high-temperature ambient conditions. The charge termination voltage is 4.2V, and the charging current is programmable via an external resistor. The charging process terminates automatically when the charging current drops to 1/5 of the programmed value. Upon removal of the input voltage, the device automatically enters a low-current sleep state with the current dropping to 0.
Applications
- Charging dock
- Bluetooth headset
- GPS
- Mobile phone
- Portable devices
Key features
- Maximum input voltage: 30V
- Full charge voltage: 4.2V
- Overvoltage protection voltage: 7.3V
- Maximum charge current: 1000mA
- Trickle/constant current/constant voltage three-stage charging
- No MOSFET, sense resistor, or isolation diode required
- Intelligent thermal regulation for maximum charge rate optimization
- Intelligent recharge function
- BAT input reverse polarity protection
- Standby mode quiescent current: 1.2μA
- C/5 charge termination
- 2.9V trickle charge threshold
- Charge status indication
- Package: ESOP8
