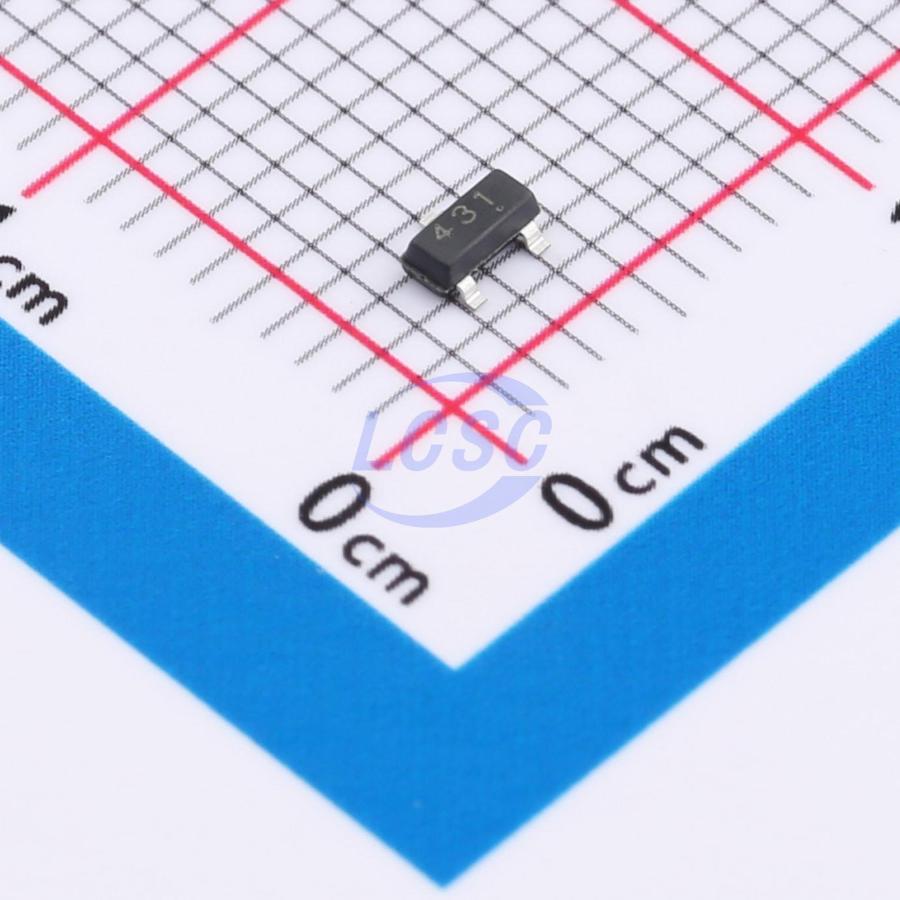

JTDH431
Shunt Voltage Reference IC Adjustable 100mA SOT-23
SOT-23ROHS CompliantActive
Three-terminal adjustable shunt voltage regulator
- Manufacturer
- JTD
- Manufacturer part #
- JTDH431
- Store part #
- C42443470
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,450 in stock
#C42443470
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹2.38 | ₹119.00 |
| 500+ | ₹1.85 | ₹925.00 |
| 3,000+ | ₹1.56 | ₹4,680.00 |
| 6,000+ | ₹1.39 | ₹8,340.00 |
| 24,000+ | ₹1.24 | ₹29,760.00 |
| 51,000+ | ₹1.15 | ₹58,650.00 |
50 × ₹2.38
₹119.00
excl. GST
₹140.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
JTDH431
₹119.00 for 50 + GST
Specifications
- Quiescent Current
- 700nA
- Output Voltage
- 2.495V~36V
- Tolerance
- ±1%
- Minimum Cathode Current for Regulation
- 150uA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -40℃~+125℃
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.039 g
Overview
The H431 series ICs are three-terminal adjustable shunt regulators with guaranteed thermal stability over a full operation range. These ICs feature very sharp turn-on characteristics, low temperature coefficient and low output impedance, which make them ideal substitutes for Zener diodes in applications such as switching power supply, charger, and other adjustable regulators. The H431 is especially suitable for industry applications types. The H431 precision reference is offered in bandgap tolerance: 0.3% - 1%. The H431 are characterized for operation from – 40°C to 125°C.
Applications
- Precision Voltage Reference
- Switching Power Supply
- Charger
- Voltage Adapter
- Adjusted Power Supply
Key features
- Reference Voltage Tolerance at 25°C: - 0.3% ~ 1.0% Voltage tolerance.
- Adjustable Output Voltage: VREF to 36 V
- Operation From -40°C to 125°C
- Typical Temperature Drift – 10 mV (-40 to 85°C) - 20 mV (-40 to 125°C)
- Low Output Noise
- Sink-Current Capability: 0.15 mA to 100 mA
