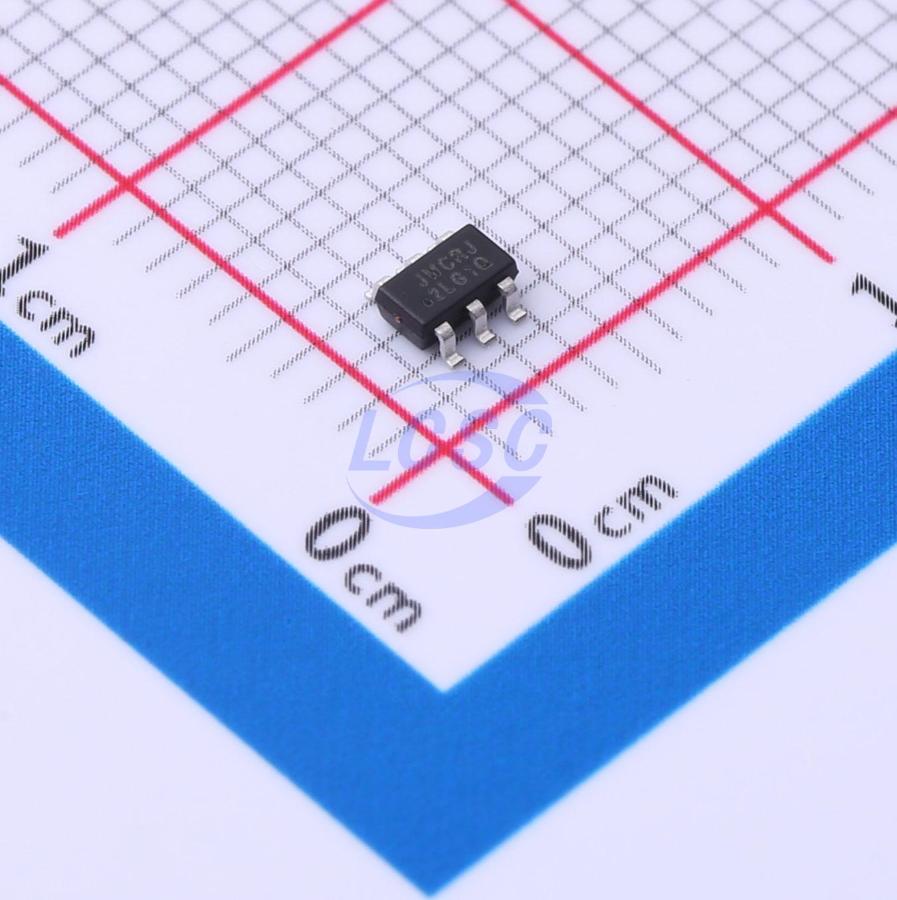

JW7111SSOTB#TRPBF
1 2.6A Active High High Side Switch SOT-23-6 Power Distribution Switches, Load Drivers
SOT-23-6RoHSActive
Single Power Switch with Flag
- Manufacturer
- JoulWatt Tech
- Manufacturer part #
- JW7111SSOTB#TRPBF
- Store part #
- C5121638
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,670 in stock
#C5121638
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.20 | ₹76.00 |
| 50+ | ₹12.08 | ₹604.00 |
| 150+ | ₹10.52 | ₹1,578.00 |
| 500+ | ₹9.34 | ₹4,670.00 |
| 3,000+ | ₹8.40 | ₹25,200.00 |
| 6,000+ | ₹7.94 | ₹47,640.00 |
5 × ₹15.20
₹76.00
excl. GST
₹89.68 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
JW7111SSOTB#TRPBF
₹76.00 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Under-voltage lockout;Reverse current blocking;Output discharge function;Reverse voltage protection
- number of channels
- 1
- Maximum Continuous Current
- 2.6A
- Control Input Logic
- Active High
- Operating Voltage
- 2.7V~5.5V
- RDS(on)
- 40mΩ
- Type
- High Side Switch
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.05 g
Overview
The JW7115Sx/JW7111Sx is a single channel current-limited power switch optimized for Universal Serial Bus (USB) and other hot-swap applications. The rising and falling times are controlled to minimize current overshoot or undershoot during switches on/off. The device has fast short-circuited response time for improved overall system robustness. It provides a complete protection solution, such as reverse current blocking and limit, over-current protection, over-temperature protection and short-circuit protection, as well as controlled rising time and under-voltage lockout function. A 7.5ms de-glitch time on the open-drain flag output prevents false over-current reporting. The JW7115Sx/JW7111Sx integrates high-side MOSFET optimized for Universal Serial Bus (USB) that requires protection functions. The MOSFET is driven with controlled gate voltage and slew-rate, which makes this USB device ideal for hot-swap or hot-plug applications.
Applications
- Set-Top Boxes
- LCD TVs & Monitors
- Residential Gateways
- Laptops, Desktops, Servers, e-books
- Printers, Docking Stations, HUBs
Key features
- Accurate current limit
- FLG: active low
- Reverse current blocking during shutdown and reverse current limit during enable
- Constant-current during over-current
- Fast short-circuit response time: 2μs (typ.)
- Operating range: 2.7V - 5.5V
- Over-current protection, short-circuit Protection and thermal protection
- Fault report (FAULT) with de-glitch time
- UL recognized, file number E497605
- IEC recognized, file number DK-83242-UL and DK-90295-UL
- ESD protection: 2kV HBM, 500V CDM
- Available in SOT23-5, TSOT23-5, SOT23-6 and DFN2X2-6 Packages
