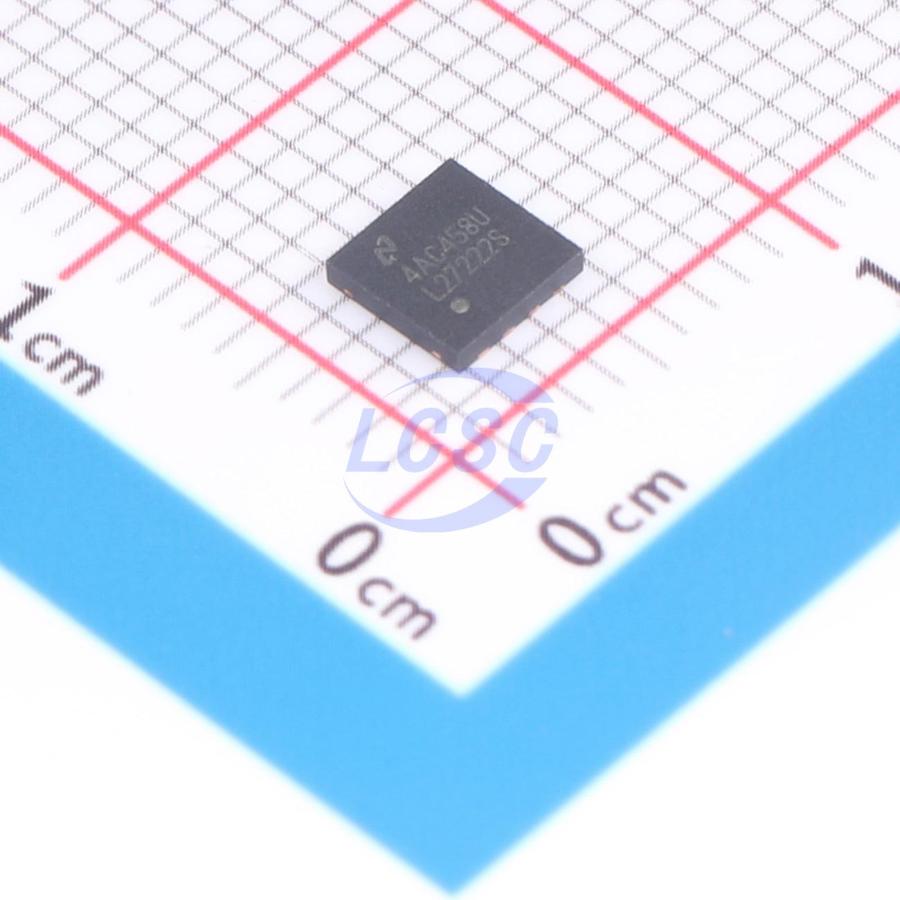

LM27222SD/NOPB
3A 4V~6.85V 4.5A WSON-8-EP(4x4) Gate Drivers RoHS
- Manufacturer
- TI
- Manufacturer part #
- LM27222SD/NOPB
- Store part #
- C2677107
- Package / case
- WSON-8-EP(4x4)
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,046 in stock
#C2677107
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹372.28 | ₹372.28 |
| 10+ | ₹331.95 | ₹3,319.50 |
| 30+ | ₹303.55 | ₹9,106.50 |
| 100+ | ₹277.53 | ₹27,753.00 |
| 500+ | ₹265.61 | ₹1,32,805.00 |
| 1,000+ | ₹260.83 | ₹2,60,830.00 |
1 × ₹372.28
₹372.28
excl. GST
₹439.29 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
LM27222SD/NOPB
₹372.28 for 1 + GST
Specifications
- Rise Time
- 17ns
- Fall Time
- 12ns
- Features
- Dead-time control;Interleaved conduction protection
- Current - Output High(IOH)
- 3A
- Load Type
- MOSFET
- Quiescent Current
- 5uA
- Voltage - Supply
- 4V~6.85V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 4.5A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.214 g
Overview
The LM27222 is a dual N-channel MOSFET driver designed to drive MOSFETs in push-pull configurations as typically used in synchronous buck regulators. The LM27222 takes the PWM output from a controller and provides the proper timing and drive levels to the power stage MOSFETs. Adaptive shootthrough protection prevents damaging and efficiency reducing shoot-through currents, thus ensuring a robust design capable of being used with nearly any MOSFET. The adaptive shoot-through protection circuitry also reduces the dead time down to as low as 10ns, ensuring the highest operating efficiency. The peak sourcing and sinking current for each driver of the LM27222 is about 3A and 4.5Amps respectively with a Vgs of 5V. System performance is also enhanced by keeping propagation delays down to 8ns. Efficiency is once again improved at all load currents by supporting synchronous, nonsynchronous, and diode emulation modes through the LEN pin. The minimum output pulse width realized at the output of the MOSFETs is as low as 30ns. This enables high operating frequencies at very high conversion ratios in buck regulator designs. To support low power states in notebook systems, the LM27222 draws only 5μA from the 5V rail when the IN and LEN inputs are low or floating.
Applications
- High Current Buck And Boost Voltage Converters
- Fast Transient DC/DC Power Supplies
- Single Ended Forward Output Rectification
- CPU And GPU Core Voltage Regulators
Key features
- Adaptive Shoot-through Protection
- 10ns Dead Time
- 8ns Propagation Delay
- 30ns Minimum On-time
- 0.4Ω Pull-down and 0.9Ω Pull-up Drivers
- 4.5A Peak Driving Current
- MOSFET Tolerant Design
- 5μA Quiescent Current
- 30V Maximum Input Voltage in Buck Configuration
- 4V to 6.85V Operating Voltage
- SOIC-8 and WSON Packages
