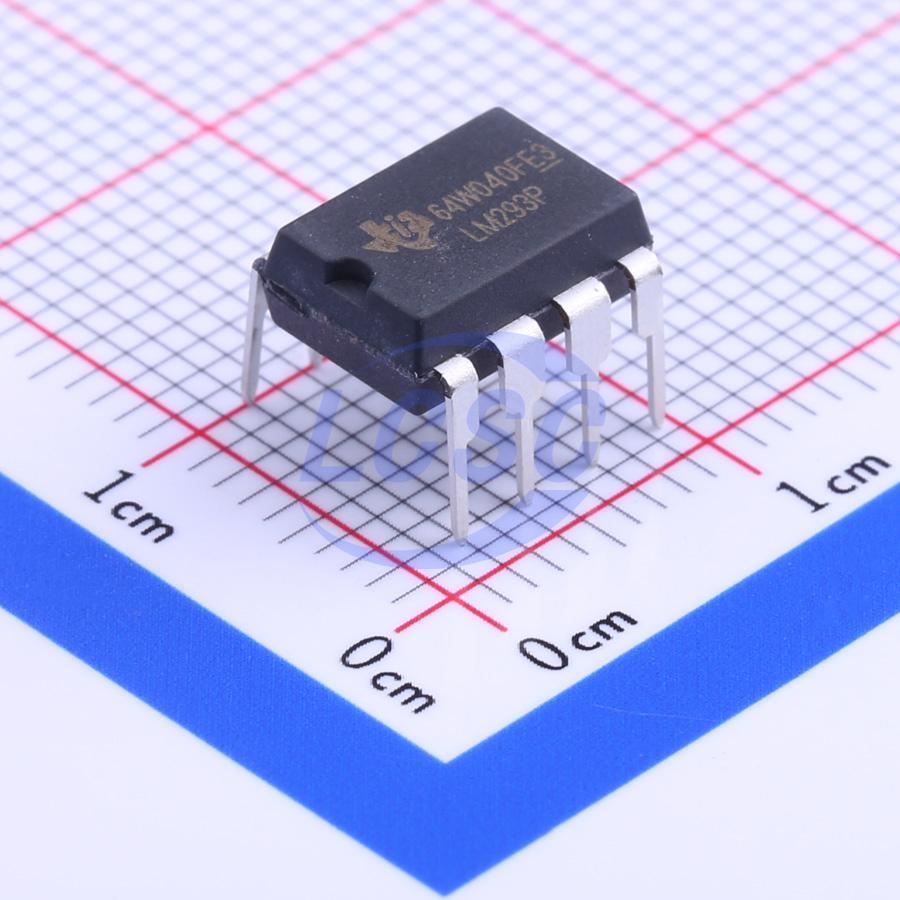

LM293P
2 800uA 2mV PDIP-8 Comparators RoHS
LMx93, LM2903 Dual Differential Comparators
- Manufacturer
- TI
- Manufacturer part #
- LM293P
- Store part #
- C5232
- Package / case
- PDIP-8
- Category
- Comparators
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,340 in stock
#C5232
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹54.49 | ₹272.45 |
| 50+ | ₹42.98 | ₹2,149.00 |
| 150+ | ₹38.74 | ₹5,811.00 |
| 500+ | ₹33.42 | ₹16,710.00 |
| 2,500+ | ₹31.05 | ₹77,625.00 |
| 5,000+ | ₹29.64 | ₹1,48,200.00 |
5 × ₹54.49
₹272.45
excl. GST
₹321.49 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
LM293P
₹272.45 for 5 + GST
Specifications
- Number of Channels
- 2
- Input Offset Current(Ios)
- 3nA
- Output Mode
- TTL;CMOS
- Operating Temperature
- -25℃~+85℃
- Dual Supply
- 2V~18V;-18V~-2V
- Ib - Input Bias Current
- 100nA
- Output Type
- Open-drain
- Propagation Delay(tpd)
- 1.3us
- Quiescent Current(Iq)
- 800uA
- Vos - Input Offset Voltage
- 2mV
- Maximum Power Supply Range (Vdd-Vss)
- 36V
- Single Supply
- 2V~36V
- Response Time (tr)
- 1.3us
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.9 g
Overview
These devices consist of two independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Operation from dual supplies also is possible as long as the difference between the two supplies is 2 V to 36 V, and VCC is at least 1.5 V more positive than the input common - mode voltage. Current drain is independent of the supply voltage. The outputs can be connected to other open - collector outputs to achieve wired - AND relationships. The LM193 device is characterized for operation from - 55°C to 125°C. The LM293 and LM293A devices are characterized for operation from - 25°C to 85°C. The LM393 and LM393A devices are characterized for operation from 0°C to 70°C. The LM2903 device is characterized for operation from - 40°C to 125°C.
Applications
- Chemical or Gas Sensor
- Desktop PC
- Motor Control: AC Induction
- Weigh Scale
Key features
- Single - Supply or Dual Supplies
- Wide Range of Supply Voltage Maximum Rating: 2 V to 36 V
- Tested to 30 V: Non - V Devices
- Tested to 32 V: V - Suffix Devices
- Low Supply - Current Drain Independent of Supply Voltage: 0.4 mA (Typical) Per Comparator
- Low Input Bias Current: 25 nA (Typical)
- Low Input Offset Current: 3 nA (Typical) (LM139)
- Low Input Offset Voltage: 2 mV (Typical)
- Common - Mode Input Voltage Range Includes Ground
- Differential Input Voltage Range Equal to Maximum - Rated Supply Voltage: ±36 V
- Low Output Saturation Voltage
- Output Compatible With TTL, MOS, and CMOS
