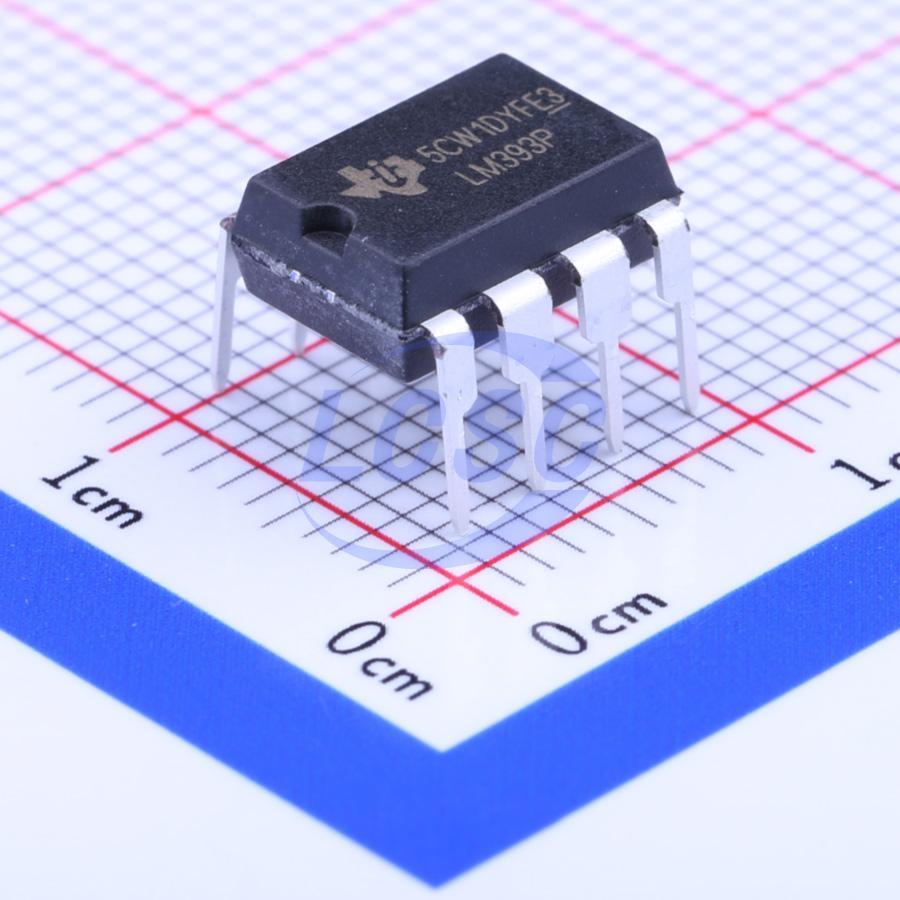

LM393P
2 400uA 2mV PDIP-8 Comparators RoHS
DUAL DIFFERENTIAL COMPARATORS
- Manufacturer
- TI
- Manufacturer part #
- LM393P
- Store part #
- C5209
- Package / case
- PDIP-8
- Category
- Comparators
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,980 in stock
#C5209
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹40.56 | ₹202.80 |
| 50+ | ₹29.83 | ₹1,491.50 |
| 150+ | ₹25.71 | ₹3,856.50 |
| 500+ | ₹20.56 | ₹10,280.00 |
| 2,500+ | ₹18.26 | ₹45,650.00 |
| 5,000+ | ₹16.88 | ₹84,400.00 |
5 × ₹40.56
₹202.80
excl. GST
₹239.30 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
LM393P
₹202.80 for 5 + GST
Specifications
- Number of Channels
- 2
- Input Offset Current(Ios)
- 5nA
- Output Mode
- TTL;CMOS
- Operating Temperature
- 0℃~+70℃
- Features
- ESD protection
- Dual Supply
- 2V~18V;-18V~-2V
- Ib - Input Bias Current
- 25nA
- Output Type
- Open-drain
- Quiescent Current(Iq)
- 400uA
- Vos - Input Offset Voltage
- 2mV
- Maximum Power Supply Range (Vdd-Vss)
- 36V
- Single Supply
- 2V~36V
- Response Time (tr)
- 1.3us
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.9 g
Overview
These devices consist of two independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Operation from dual supplies also is possible as long as the difference between the two supplies is 2V to 36V, and VCC is at least 1.5V more positive than the input common - mode voltage. Current drain is independent of the supply voltage. The outputs can be connected to other open - collector outputs to achieve wired - AND relationships.
Key features
- Single Supply or Dual Supplies
- Wide Range of Supply Voltage: Max Rating... 2 V to 36 V
- Low Supply - Current Drain Independent of Supply Voltage... 0.4 mA Typ Per Comparator
- Low Input Bias Current... 25 nA Typ
- Low Input Offset Current... 3 nA Typ (LM193)
- Low Input Offset Voltage... 2 mV Typ
- Common - Mode Input Voltage Range Includes Ground
- Differential Input Voltage Range Equal to Maximum - Rated Supply Voltage... ±36 V
- Low Output Saturation Voltage
- Output Compatible With TTL, MOS, and CMOS
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM393N(XBLW)#C19708139XBLW · DIP-8 | XBLW | DIP-8 | 1,435 | ₹10.98 · 1,435 in stock | View |
 | LM393GN#C2904150HTC · DIP-8 | HTC | DIP-8 | 1,820 | ₹22.49 · 1,820 in stock | View |
 | LM293P#C5232TI · PDIP-8 | TI | PDIP-8 | 1,340 | ₹54.49 · 1,340 in stock | View |
 | LM393P-HXY#C20616345HXY MOSFET · DIP-8 | HXY MOSFET | DIP-8 | 85 | ₹14.30 · 85 in stock | View |
 | XD393#C561266XINLUDA · DIP-8 | XINLUDA | DIP-8 | On request | ₹14.14 · 0 in stock | View |
