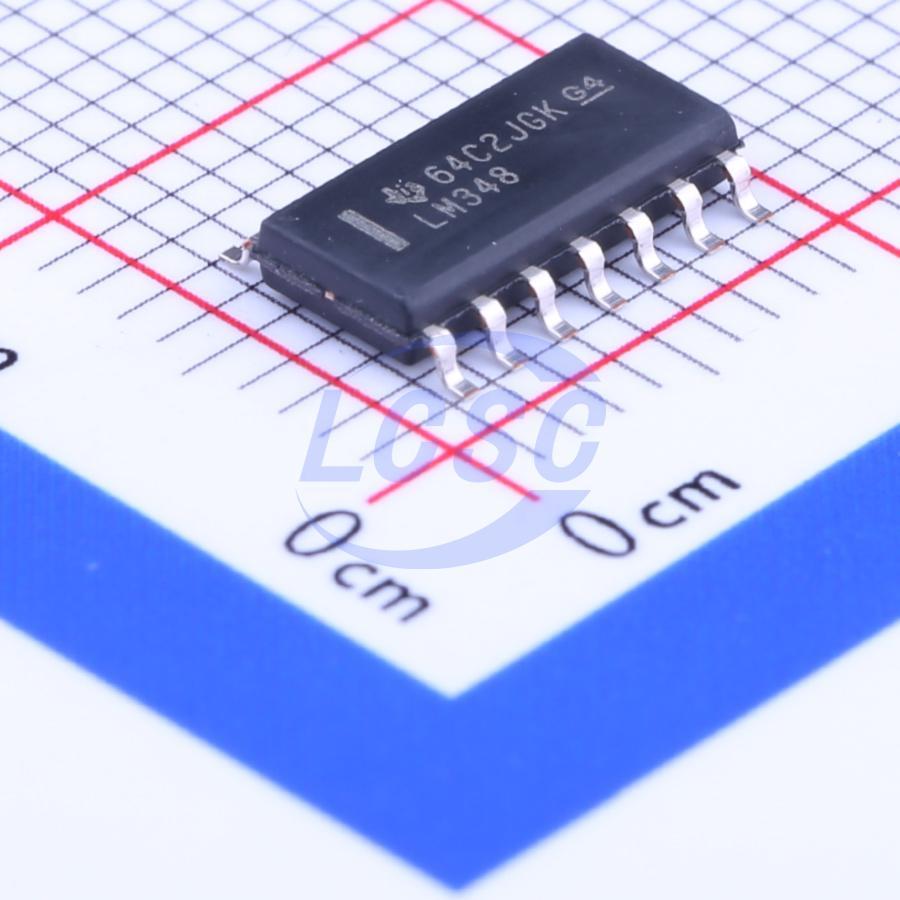

LM348DR
25mA 4 9mV 500V/ms 70dB 200nA 1MHz 600uA SOIC-14 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-14ROHS3 CompliantActive
QUADRUPLE OPERATIONAL AMPLIFIERS
- Manufacturer
- TI
- Manufacturer part #
- LM348DR
- Store part #
- C7949
- Package / case
- SOIC-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,580 in stock
#C7949
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹57.63 | ₹288.15 |
| 50+ | ₹45.39 | ₹2,269.50 |
| 150+ | ₹40.15 | ₹6,022.50 |
| 500+ | ₹33.60 | ₹16,800.00 |
| 2,500+ | ₹28.34 | ₹70,850.00 |
| 5,000+ | ₹26.59 | ₹1,32,950.00 |
5 × ₹57.63
₹288.15
excl. GST
₹340.02 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM348DR
₹288.15 for 5 + GST
Specifications
- Output Current
- 25mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 9mV
- Slew Rate
- 500V/ms
- Input Offset Current(Ios)
- 4nA
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 70dB
- Ib - Input Bias Current
- 200nA
- Gain Bandwidth Product
- 1MHz
- Quiescent Current
- 600uA
- Features
- Built-in compensation;Overvoltage protection
- Dual Supply
- 4V~18V
- Single Supply
- 4V~18V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.264 g
Overview
The LM148, LM248, and LM348 are quadruple, independent, high-gain, internally compensated operational amplifiers designed to have operating characteristics similar to the μA741. These amplifiers exhibit low supply-current drain and input bias and offset currents that are much less than those of the μA741.
Key features
- Low Supply-Current Drain... 0.6 mA Typ (per amplifier)
- Low Input Offset Voltage
- Low Input Offset Current
- Class AB Output Stage
- Input/Output Overload Protection
- Designed to Be Interchangeable With Industry Standard LM148, LM248, and LM348
