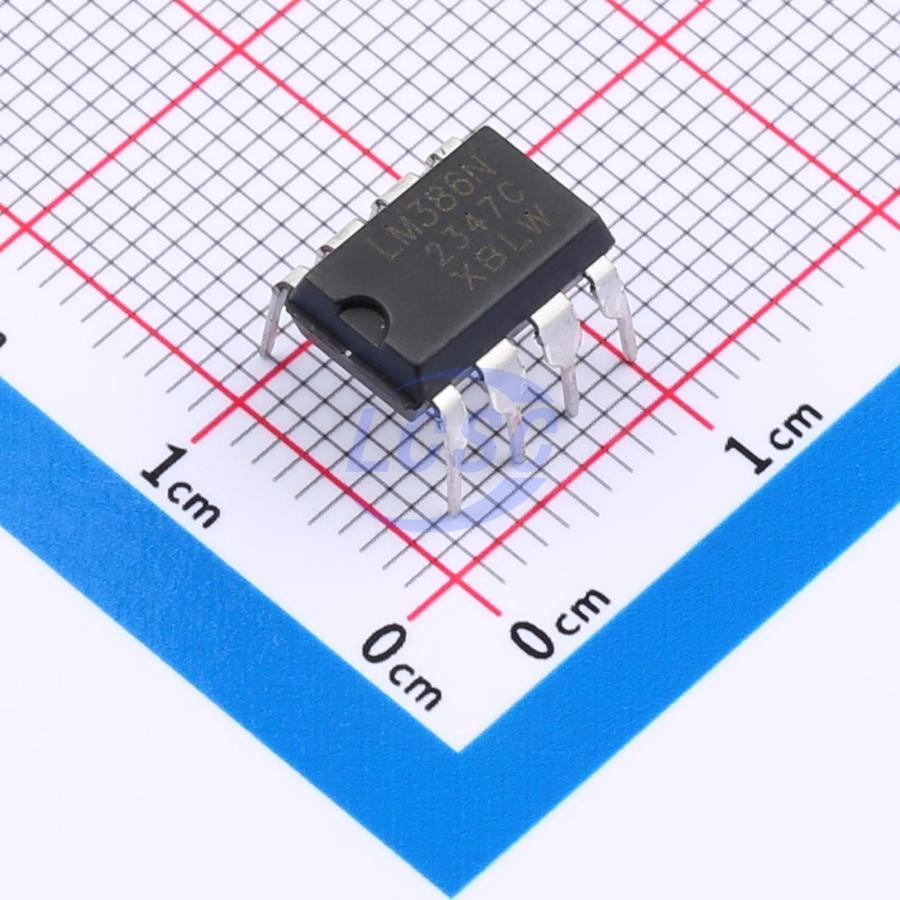

LM386N(XBLW)
4mA 4V~12V 1-Channel 700mWx1@8Ω Class AB DIP-8 Audio Amplifiers RoHS
Low Voltage Audio Power Amplifier
- Manufacturer
- XBLW
- Manufacturer part #
- LM386N(XBLW)
- Store part #
- C20612516
- Package / case
- DIP-8
- Category
- Audio Amplifiers
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,840 in stock
#C20612516
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.82 | ₹89.10 |
| 50+ | ₹13.96 | ₹698.00 |
| 150+ | ₹12.03 | ₹1,804.50 |
| 500+ | ₹10.58 | ₹5,290.00 |
| 2,000+ | ₹9.42 | ₹18,840.00 |
| 4,000+ | ₹8.85 | ₹35,400.00 |
5 × ₹17.82
₹89.10
excl. GST
₹105.14 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
LM386N(XBLW)
₹89.10 for 5 + GST
Specifications
- Quiescent Current
- 4mA
- Voltage - Supply
- 4V~12V
- Total Harmonic Distortion + Noise (THD+N)
- 0.2%
- Operating Temperature
- 0℃~+70℃
- Speaker Channels
- 1-Channel
- Output Power
- 700mWx1@8Ω
- Class
- Class AB
- Power Supply Rejection Ratio (PSRR)
- 50dB
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.741 g
Overview
The LM386 audio power amplifier is mainly used in low voltage consumer products. To minimize peripheral components, the voltage gain is built-in to 20. But add an external resistor and capacitor between 1 and 8 pins to set the voltage gain to any value up to 200. The input is ground-referenced and the output is automatically offset to half the supply voltage. At 6V supply voltage, its static power consumption is only 24MW, making LM386 especially suitable for battery-powered occasions.
Applications
- Active Filter
- AM - FM Radio Amplifiers
- Portable Tape Player Amplifiers
- Intercoms
- TV Sound Systems
- Line Drivers
- Ultrasonic Drivers
- Small Servo Drivers
- Power Converters Industrial
Key features
- Battery Operation
- Minimum External Parts
- Wide Supply Voltage Range: 4 V - 12 V
- Low Quiescent Current Drain: 4 mA
- Voltage Gains from 20 to 200
- Ground-Referenced Input
- Self-Centering Output Quiescent Volta
- Low Distortion: 0.2% (AV = 20, VS = 6, RL = 8 Ω, PO = 125 mW, f = 1 kHz)
