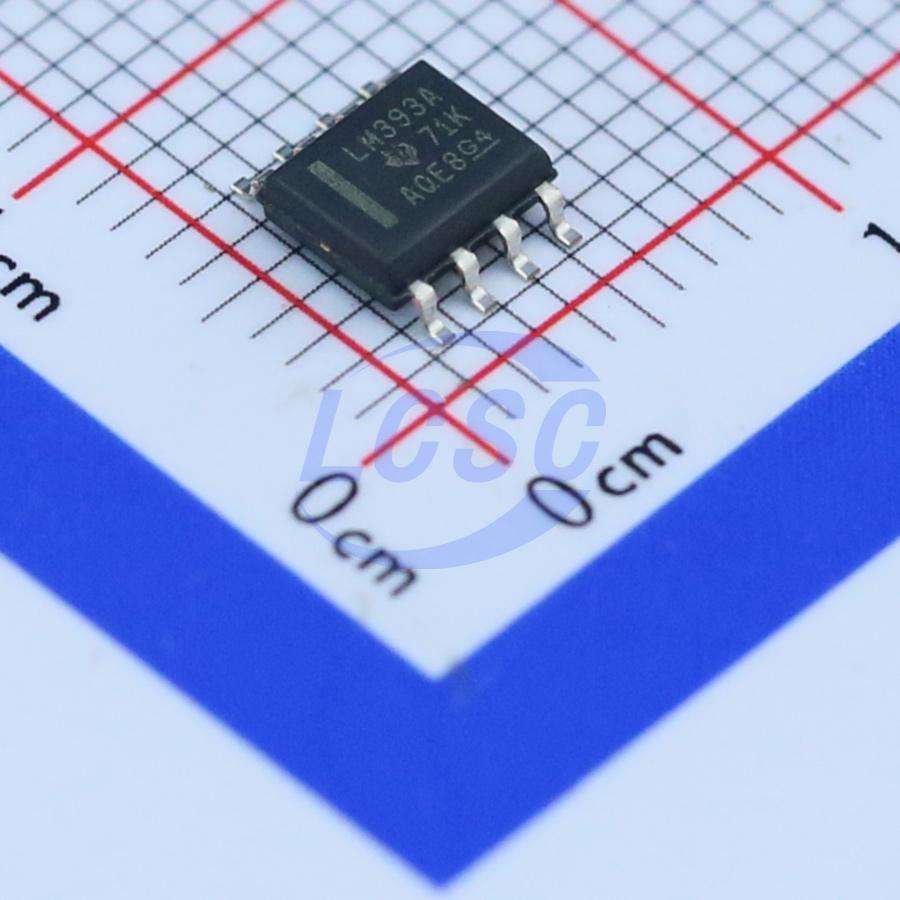

LM393ADR
2 1mA 2mV SOIC-8 Comparators RoHS
Dual Differential Comparators
- Manufacturer
- TI
- Manufacturer part #
- LM393ADR
- Store part #
- C30394
- Package / case
- SOIC-8
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
28,765 in stock
#C30394
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.92 | ₹129.60 |
| 50+ | ₹20.68 | ₹1,034.00 |
| 150+ | ₹18.43 | ₹2,764.50 |
| 500+ | ₹15.64 | ₹7,820.00 |
| 2,500+ | ₹12.11 | ₹30,275.00 |
| 5,000+ | ₹11.35 | ₹56,750.00 |
5 × ₹25.92
₹129.60
excl. GST
₹152.93 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM393ADR
₹129.60 for 5 + GST
Specifications
- Number of Channels
- 2
- Input Offset Current(Ios)
- 5nA
- Output Mode
- TTL
- Operating Temperature
- 0℃~+70℃
- Dual Supply
- 2V~18V;-18V~-2V
- Ib - Input Bias Current
- 100nA
- Output Type
- Open-drain
- Quiescent Current(Iq)
- 1mA
- Vos - Input Offset Voltage
- 2mV
- Maximum Power Supply Range (Vdd-Vss)
- 36V
- Single Supply
- 2V~36V
- Response Time (tr)
- 1.3us
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.258 g
Overview
These devices consist of two independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Operation from dual supplies also is possible as long as the difference between the two supplies is 2 V to 36 V, and VCC is at least 1.5 V more positive than the input common - mode voltage. Current drain is independent of the supply voltage. The outputs can be connected to other open - collector outputs to achieve wired - AND relationships.
Applications
- Robotic vacuum cleaners
- Single-phase UPS
- Server PSU
- Cordless power tools
- Wireless infrastructure
- Appliances
- Building automation
- Factory automation & control
- Motor drivers
- Infotainment systems & instrument clusters
Key features
- Single Supply or Dual Supplies
- Wide Range of Supply Voltage Max Rating: 2 V to 36 V
- Tested to 30 V: Non - V Devices
- Tested to 32 V: V - Suffix Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | EG393#C111034EG Micro · SOP-8 | EG Micro | SOP-8 | 12,060 | ₹7.91 · 12,060 in stock | View |
 | XL393#C513502XINLUDA · SOP-8 | XINLUDA | SOP-8 | 1,010 | ₹7.50 · 1,010 in stock | View |
 | HT393ARZ#C5143018HTCSEMI · SOIC-8 | HTCSEMI | SOIC-8 | 1,868 | ₹14.18 · 1,868 in stock | View |
 | LM393#C51912398GOODWORK · SOP-8 | GOODWORK | SOP-8 | 33,520 | ₹6.55 · 33,520 in stock | View |
 | LM393G-S08-R#C71103UTC · SOIC-8 | UTC | SOIC-8 | 340 | ₹10.46 · 340 in stock | View |
