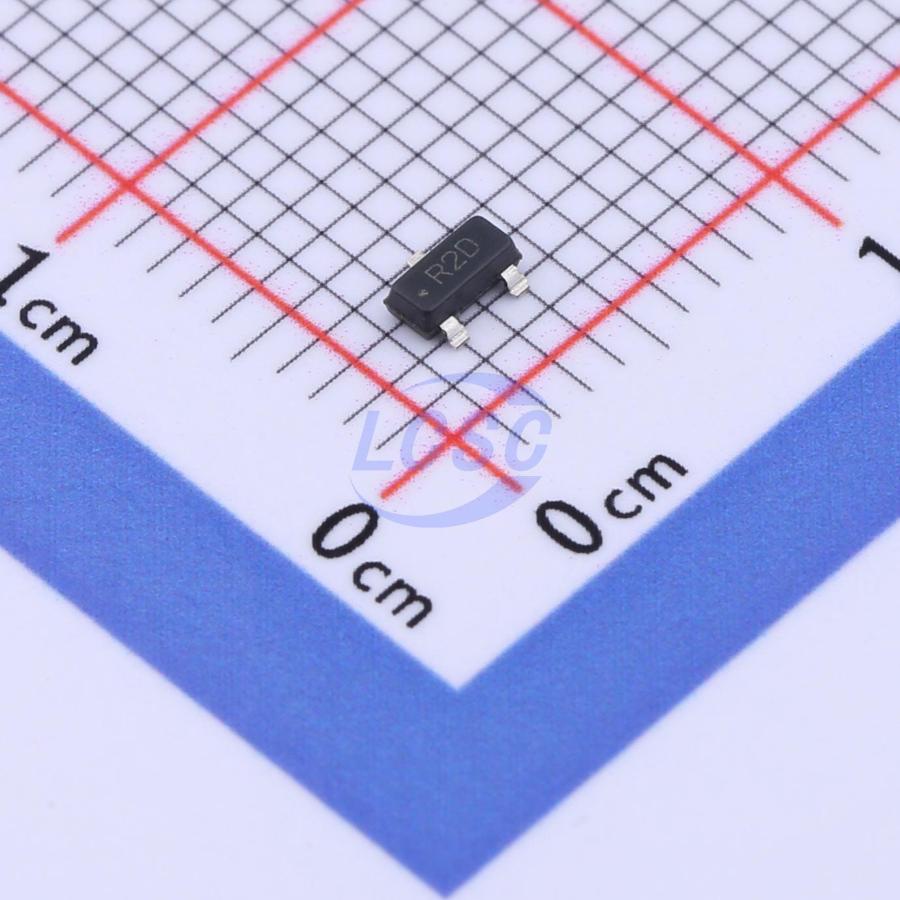

LM4040DIM3X-2.5/NOPB

2.5V ±1% 15mA Fixed SOT-23-3 Voltage Reference RoHS

SOT-23-3ROHS3 CompliantActive

Precision micropower shunt voltage reference

Manufacturer: TI
Manufacturer part #: LM4040DIM3X-2.5/NOPB
Store part #: C2156625
Package / case: SOT-23-3
Category: Voltage Reference
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,154 in stock

#C2156625

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹59.19	₹59.19
10+	₹48.14	₹481.40
30+	₹43.59	₹1,307.70
100+	₹37.52	₹3,752.00
500+	₹34.91	₹17,455.00
1,000+	₹33.39	₹33,390.00

Quantity (min 1)

1 × ₹59.19

₹59.19

excl. GST

₹69.84 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

LM4040DIM3X-2.5/NOPB

₹59.19 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 2.5V
Tolerance: ±1%
Minimum Cathode Current for Regulation: 60uA
Reference Type: Parallel
Output Current: 15mA
Operating Temperature: -40℃~+85℃@(Ta)
Noise - 10Hz to 10kHz: 35uVrms
Output Type: Fixed

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.02 g

Overview

The LM4040-N-Q1 meets the AEC Q-100 requirements for automotive applications – Extended Grade 1: -40°C to +125°C, TA; Industrial Grade 3: -40°C to +85°C, TA. Small packages: SOT-23, TO-92, and SC70. No output capacitor is required and it can accept capacitive loads. It provides fixed reverse breakdown voltages of 2.048V, 2.5V, 3V, 4.096V, 5V, 8.192V, and 10V.

Applications

Portable, battery-powered devices
Data acquisition systems
Instrumentation
Process control
Power management
Production testing
Automotive
Precision audio components

Key features

AEC Q-100 qualified for automotive applications – Extended Grade 1: -40°C to +125°C, TA; Industrial Grade 3: -40°C to +85°C, TA
Small packages: SOT-23, TO-92, and SC70
No output capacitor required; capacitive load compatible
Fixed reverse breakdown voltages: 2.048V, 2.5V, 3V, 4.096V, 5V, 8.192V, and 10V
Output voltage tolerance (Grade A, 25°C): ±0.1% (max)
Low output noise (10Hz to 10kHz): 35μVrms (typical)
Wide operating current range: 60μA to 15mA
Industrial temperature range: -40°C to +85°C
Extended temperature range: -40°C to +125°C
Low temperature coefficient: 100ppm/°C (max)
