TIDatasheet (PDF)

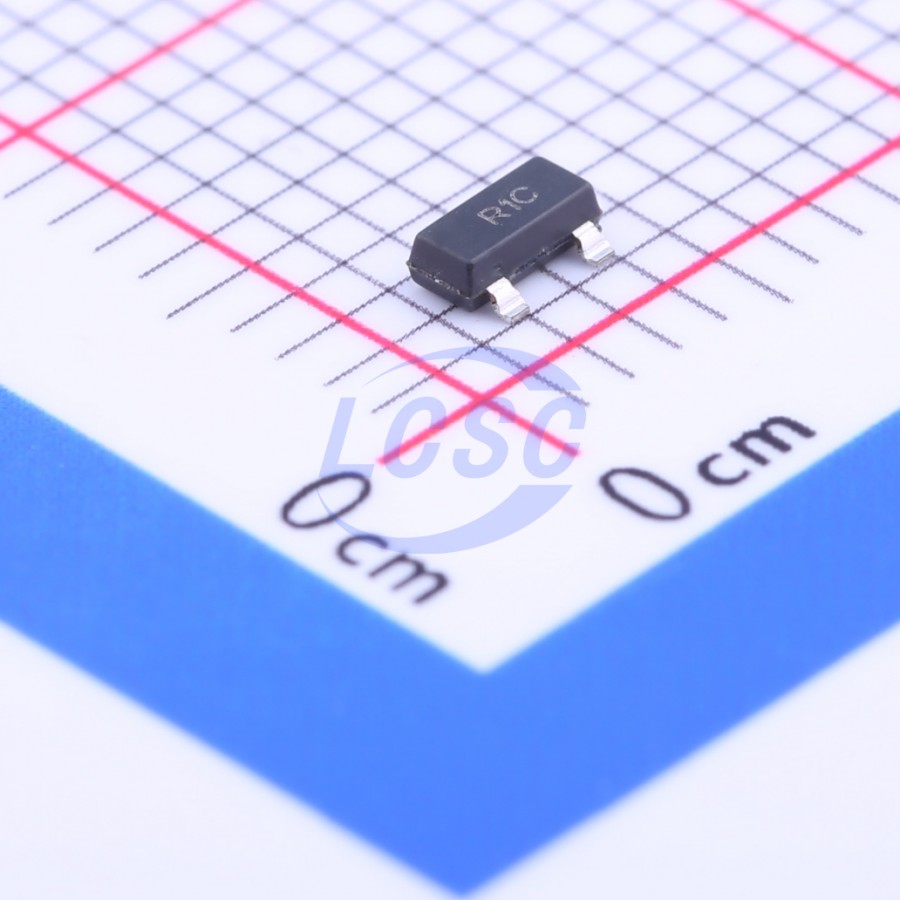

LM4041CIM3-1.2/NOPB
1.225V ±0.5% 12mA Fixed SOT-23 Voltage Reference RoHS
SOT-23ROHS3 CompliantActive
Precision Micropower Shunt Voltage Reference
- Manufacturer
- TI
- Manufacturer part #
- LM4041CIM3-1.2/NOPB
- Store part #
- C205904
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,593 in stock
#C205904
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹92.24 | ₹92.24 |
| 10+ | ₹78.10 | ₹781.00 |
| 30+ | ₹67.87 | ₹2,036.10 |
| 100+ | ₹59.61 | ₹5,961.00 |
| 500+ | ₹56.99 | ₹28,495.00 |
| 1,000+ | ₹55.47 | ₹55,470.00 |
1 × ₹92.24
₹92.24
excl. GST
₹108.84 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
LM4041CIM3-1.2/NOPB
₹92.24 for 1 + GST
Specifications
- Quiescent Current
- 60uA
- Output Voltage
- 1.225V
- Tolerance
- ±0.5%
- Minimum Cathode Current for Regulation
- 65uA
- Reference Type
- Parallel
- Output Current
- 12mA
- Operating Temperature
- -40℃~+85℃
- Noise - 10Hz to 10kHz
- 20uVrms
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.05 g
Overview
Ideal for space-critical applications, the LM4041-N precision voltage reference is available in the subminiature SC70 and SOT-23 surface-mount packages. The advanced design of the LM4041-N eliminates the need for an external stabilizing capacitor while ensuring stability with any capacitive load, thus making the LM4041-N easy to use. Further reducing design effort is the availability of a fixed (1.225 V) and adjustable reverse breakdown voltage. The minimum operating current is 60 μA for the LM4041-N 1.2 and the LM4041-N ADJ. Both versions have a maximum operating current of 12 mA. The LM4041-N uses fuse and Zener-zap reverse breakdown or reference voltage trim during wafer sort to ensure that the prime parts have an accuracy of better than ±0.1% (A grade) at 25°C. Bandgap reference temperature drift curvature correction and low dynamic impedance ensure stable reverse breakdown voltage accuracy over a wide range of operating temperatures and currents.
Applications
- Portable, Battery-Powered Equipment
- Data Acquisition Systems Instrumentation
- Process Control Energy Management
- Automotive Precision Audio Components
Key features
- Qualified for Automotive Applications SEC-Q100 Qualified With the Following Results: Device Temperature Grade 1: -40°C to +125°C Ambient Temperature Range Device Temperature Grade 3: -40°C to +85°C Ambient Temperature Range (For SOT-23 Only)
- Available in Standard, AEC Q-100 Grade 1 (Extended Temperature Range), and Grade 3 (Industrial Temperature Range) Qualified Versions (SOT-23 Only)
- Small Packages: SOT-23, TO-92, and SC70
- No Output Capacitor Required
- Tolerates Capacitive Loads
- Reverse Breakdown Voltage Options of 1.225 V and Adjustable
- Output Voltage Tolerance (A grade, 25°C) = ±0.1% (Maximum)
- Low Output Noise (10 Hz to 10 kHz) = 20 μVrms
- Wide Operating Current Range of 60 μA to 12 mA
- Industrial Temperature Range (LM4041A/B-N, LM4041-N-Q1A/Q1B) of -40°C to +85°C
- Extended Temperature Range (LM4041C/D/E-N, LM4041-N-Q1C/Q1D/Q1E) of -40°C to +125°C
- Low Temperature Coefficient of 100 ppm/°C (Maximum)
