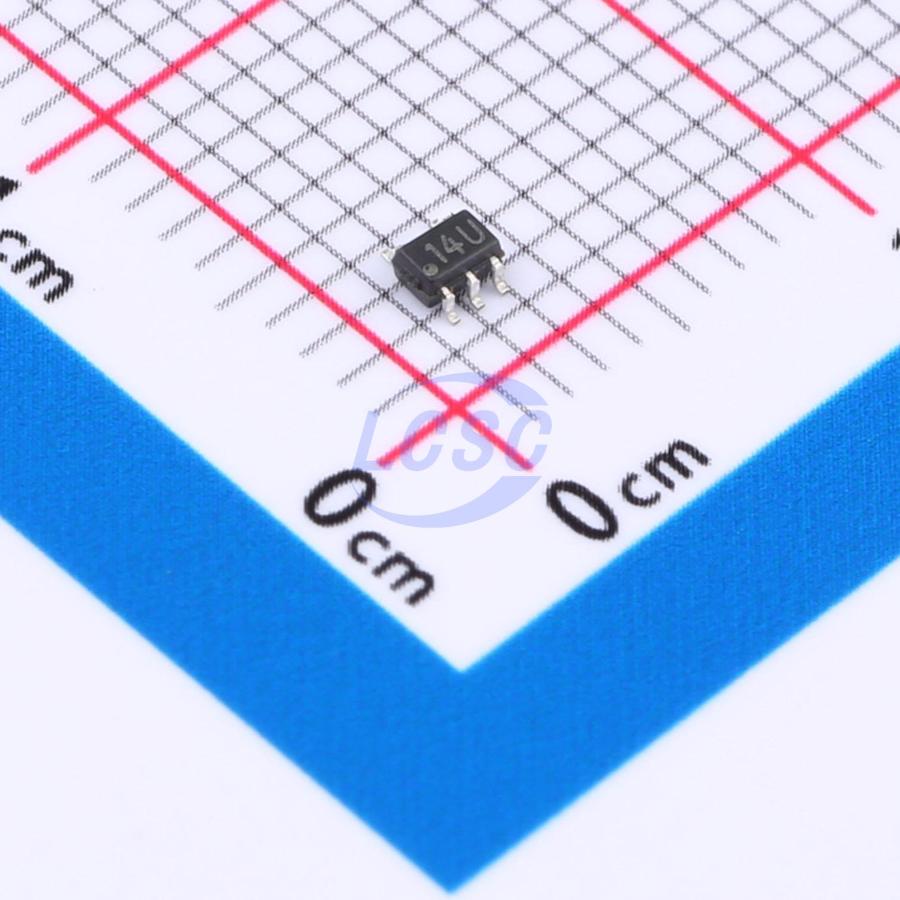

LMV551QDCKRQ1

Standard (General Purpose) Amplifier 1 Circuit Rail-to-Rail Output SC-70-5

SC-70-5ROHS3 CompliantActive

Automotive micropower RRO amplifier

Manufacturer: TI
Manufacturer part #: LMV551QDCKRQ1
Store part #: C1879731
Package / case: SC-70-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

178 in stock

#C1879731

Stock & price checked 12 days ago

Quantity	Unit price	Pack price
1+	₹103.41	₹103.41
10+	₹101.01	₹1,010.10
30+	₹99.49	₹2,984.70
100+	₹97.97	₹9,797.00

Quantity (min 1)

1 × ₹103.41

₹103.41

excl. GST

₹122.02 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

LMV551QDCKRQ1

₹103.41 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 10mA
Number of Channels: 1
Vos - Input Offset Voltage: 1mV
Slew Rate: 1V/us
Input Offset Current(Ios): 1nA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 93dB
Ib - Input Bias Current: 20nA
Input Offset Voltage Drift(Vos TC): 3.3uV/℃
Quiescent Current: 37uA
Gain Bandwidth Product: 3MHz
Input Voltage Noise Density: 70nV/√Hz@1kHz
Rail to Rail: Rail-to-rail output
Single Supply: 2.7V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.028 g

Overview

The LMV551-Q1 is a high-performance, low-power op-amp featuring 3MHz bandwidth with only 37μA supply current, delivering an excellent bandwidth-to-power ratio. Unity-gain stable, it provides an outstanding solution for applications requiring wide bandwidth at low power. Features a rail-to-rail output stage and an extended input common-mode range below ground. Operating supply voltage range of 2.7V to 5.5V, functional across a wide temperature range (-40°C to 125°C), making it an ideal choice for automotive, sensor, and portable instrumentation applications, housed in an ultra-compact 5-pin SC70 package.

Applications

Automotive subsystems
Portable battery-powered systems
Robotics and automation
Sensor and instrumentation active filters

Key features

Automotive-grade compliant
Qualified per AEC-Q100 test guidelines with the following results:
Device temperature range Grade 1: ambient operating temperature -40°C to 125°C
Device HBM ESD classification Level 2
Device CDM ESD classification Level C7
Specified 3V and 5V performance
High unity-gain bandwidth: 3MHz
Supply current 37μA (typical)
CMRR 93 dB
PSRR 90 dB
Slew rate 1V/μs
Output swing from supply rail 70mV with 100kΩ load
Total harmonic distortion: 0.003% at 1kHz, 2kΩ
