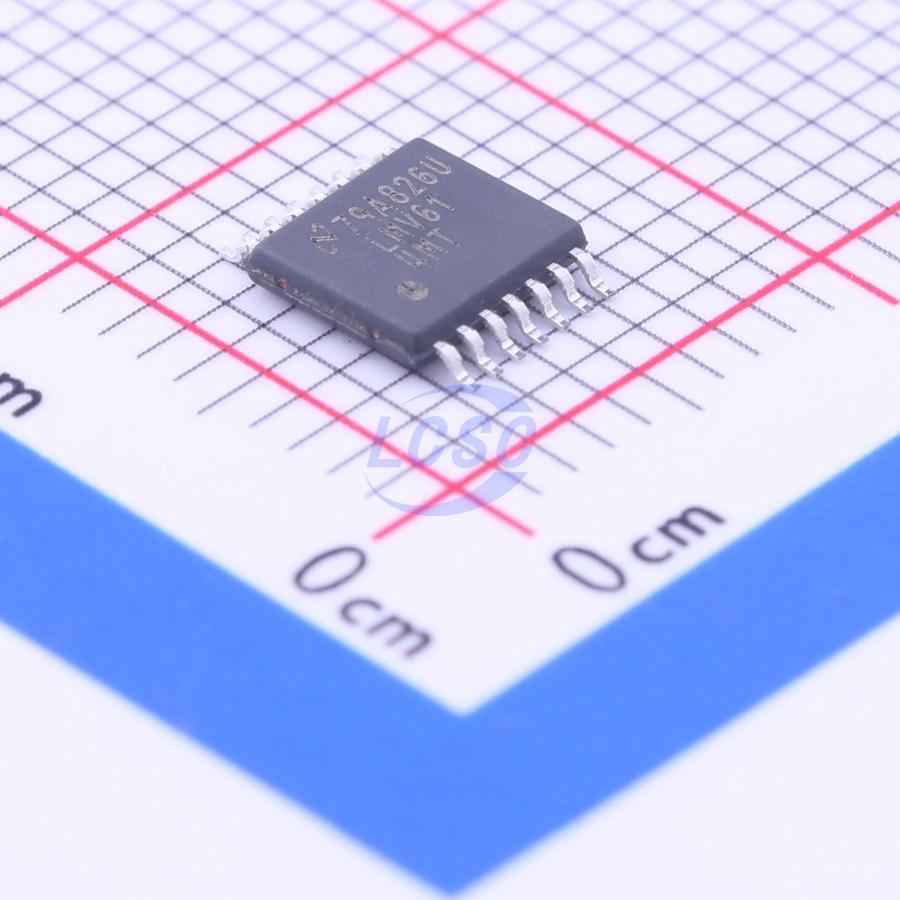

LMV614MTX/NOPB

The LMV61x devices are single, dual, and quad low-voltage, low-power operational amplifiers (op amps). They are designed specifically for low-voltage, general-purpose applications. Other important product characteristics are, rail-to-rail input or output, low supply voltage of 1.8 V and wide temperature range. The LMV61x input common mode extends 200 mV beyond the supplies and the output can swing rail-to-rail unloaded and within 30 mV with 2-kΩ load at 1.8-V supply. The LMV61x achieves a gain bandwidth of 1.4 MHz while drawing 100 μA (typical) quiescent current. The industrial-plus temperature range of -40°C to 125°C allows the LMV61x to accommodate a broad range of extended environment applications. The LMV611 is offered in the tiny 5-pin SC70 package, the LMV612 in space-saving 8-pin VSSOP and SOIC packages, and the LMV614 in 14-pin TSSOP and SOIC packages. These small package amplifiers offer an ideal solution for applications requiring minimum PCB footprint. Applications with area constrained PCB requirements include portable and battery-operated electronics.

Applications

• Consumer Communication
• Consumer Computing
• PDAs
• Audio Pre-Amplifiers
• Portable or Battery-Powered Electronic Equipment
• Supply Current Monitoring
• Battery Monitoring

Key features

• Supply Values: 1.8 V (Typical) Ensured 1.8-V, 2.7-V, and 5-V Specifications
• Output Swing: 80 mV From Rail With 600-Ω Load – 30 mV From Rail With 2-kΩ Load VCM = 200 mV Beyond Rails
• 100-μA Supply Current (Per Channel)
• 1.4-MHz Gain Bandwidth Product
• Maximum VOS = 4 mV
• Temperature Range: -40°C to +125°C
