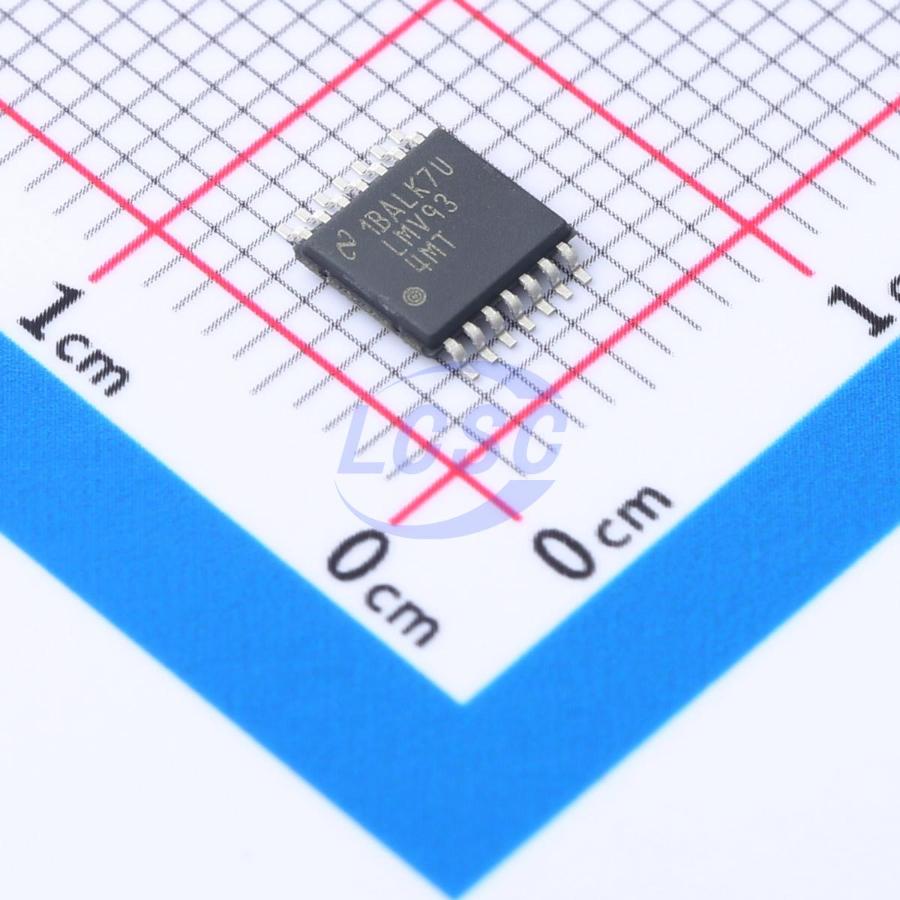

LMV934MTX/NOPB

The LMV93x-N family (LMV931-N single, LMV932-N dual and LMV934-N quad) are low-voltage, low-power operational amplifiers. The LMV93x-N family operates from 1.8 V to 5.5 V supply voltages and have rail-to-rail input and output. The input common-mode voltage extends 200 mV beyond the supplies which enables user enhanced functionality beyond the supply voltage range. The output can swing rail-to-rail unloaded and within 105 mV from the rail with 600-Ω load at 1.8-V supply. The LMV93x-N devices are optimized to work at 1.8 V, which make them ideal for portable two-cell, battery-powered systems and single-cell Li-Ion systems. LMV93x-N devices exhibit an excellent speed-power ratio, achieving 1.4-MHz gain bandwidth product at 1.8-V supply voltage with very low supply current. The LMV93x-N devices can drive a 600-Ω load and up to 1000-pF capacitive load with minimal ringing. These devices also have a high DC gain of 101 dB, making them suitable for low-frequency applications. The single LMV93x-N is offered in space-saving 5-pin SC70 and SOT-23 packages. The dual LMV932-N are in 8-pin VSSOP and SOIC packages and the quad LMV934-N are in 14-pin TSSOP and SOIC packages. These small packages are ideal solutions for area constrained PC boards and portable electronics such as mobile phones and tablets.

Applications

• Phones Tablets
• Wearables
• Health Monitoring
• Portable and Battery-Powered Electronic Equipment
• Battery Monitoring

Key features

• Typical 1.8-V Supply Values; Unless Otherwise Noted Specified at 1.8 V, 2.7 V and 5 V
• Output Swing With 600-Ω Load 80 mV from Rail – With 2-kΩ Load 30 mV from Rail
• VCM 200 mV Beyond Rails
• Supply Current (per Channel) 100 μA
• Gain Bandwidth Product 1.4 MHz
• Maximum VOS 4 mV
• Ultra Tiny Packages
• Temperature Range -40°C to +125°C
