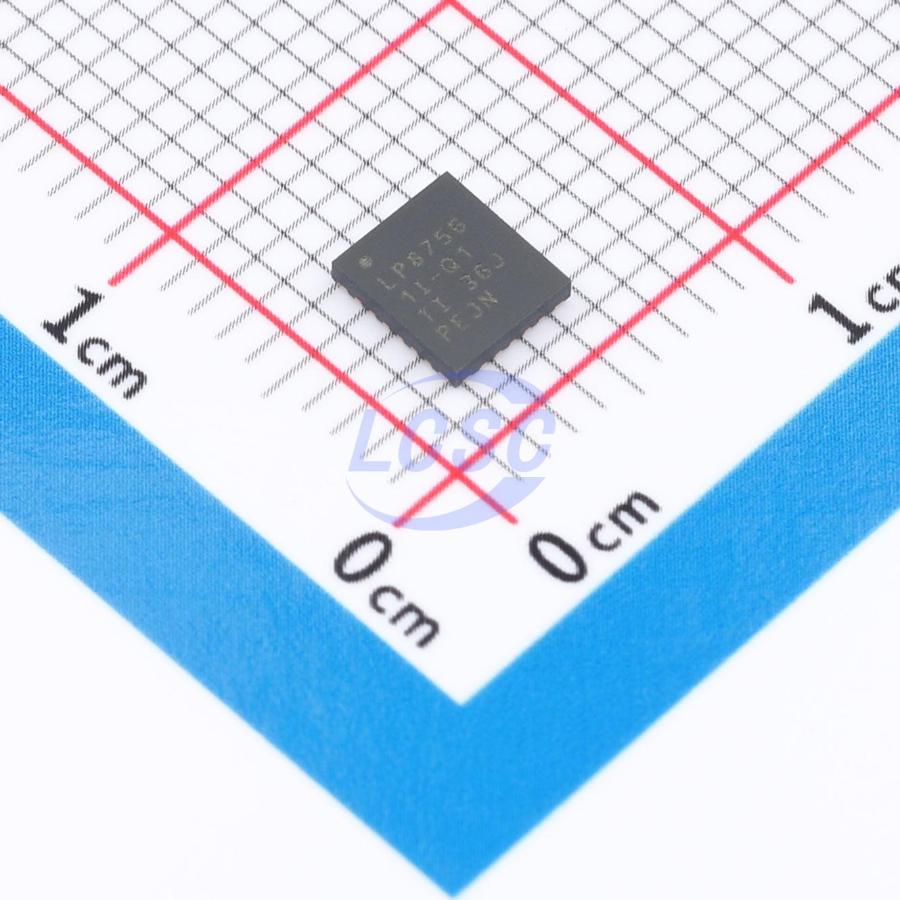

LP87561IRNFRQ1

2MHz Step-down type Adjustable 16A 600mV~3.36V PFQFN-26-EP(4x4.5) Voltage Regulators - DC DC Switching Regulators RoHS

PFQFN-26-EP(4x4.5)ROHS3 CompliantActive

Manufacturer: TI
Manufacturer part #: LP87561IRNFRQ1
Store part #: C1850348
Package / case: PFQFN-26-EP(4x4.5)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5 in stock

#C1850348

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹955.99	₹955.99
10+	₹933.77	₹9,337.70
30+	₹918.89	₹27,566.70
100+	₹904.02	₹90,402.00

Quantity (min 1)

1 × ₹955.99

₹955.99

excl. GST

₹1,128.07 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

LP87561IRNFRQ1

₹955.99 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TA)
Frequency - Switching: 2MHz
Function: Step-down type
Number of Outputs: 4
Features: Adjustable current limiting;EMI optimization (spread spectrum);Light load efficient mode;Output voltage differential sensing;Frequency synchronization;Operating status indication;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 2.8V~5.5V
Switch tube (built-in/external): Built-in
Output Current: 16A
Output Voltage: 600mV~3.36V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.74 g

Overview

Input Voltage: 2.8V to 5.5V Output Voltage: 0.6V to 3.36V Four high-efficiency step-down DC/DC converter cores: Maximum output current: 16A (4A/phase) Programmable output voltage slew rate range: 0.5mV/µs to 10mV/µs Switching frequency: 2MHz Spread spectrum mode and phase interleaving Configurable general-purpose I/O (GPIO) I²C-compatible interface supporting Standard (100kHz), Fast (400kHz), Fast+ (1MHz), and High-Speed (3.4MHz) modes Interrupt function with programmable masking Programmable power-good signal (PGOOD) Output short-circuit and overload protection Overtemperature warning and protection OVP and UVLO

Applications

Automotive infotainment systems
Instrument clusters
Radar and camera power applications

Key features

Automotive-grade compliant
AEC-Q100 qualified with the following characteristics:
Device Temperature Grade 1: –40°C to +125°C ambient operating temperature range
Device HBM ESD Classification Level 2
Device CDM ESD Classification Level C4B
