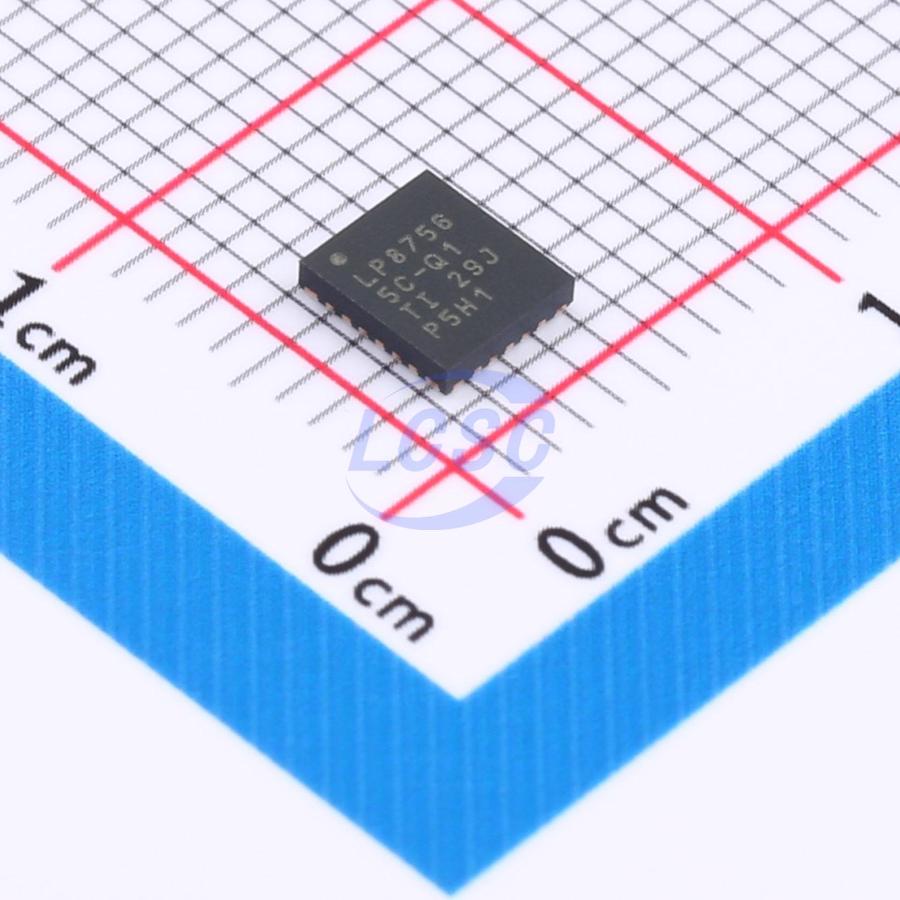

LP87565CRNFRQ1

Buck Switching Regulator IC Adjustable 0.6V~3.36V 4 Output 16A VQFN-26-HR-EP(4x4.5)

VQFN-26-HR-EP(4x4.5)ROHS3 CompliantActive

16A step-down converter with integrated switch

Manufacturer: TI
Manufacturer part #: LP87565CRNFRQ1
Store part #: C2072134
Package / case: VQFN-26-HR-EP(4x4.5)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

10 in stock

#C2072134

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹621.89	₹621.89
10+	₹607.97	₹6,079.70
30+	₹598.84	₹17,965.20
100+	₹589.71	₹58,971.00

Quantity (min 1)

1 × ₹621.89

₹621.89

excl. GST

₹733.83 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

LP87565CRNFRQ1

₹621.89 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃
Frequency - Switching: 2MHz
Function: Step-down type
Number of Outputs: 4
Features: Adjustable current limiting;EMI optimization (spread spectrum);Light load efficient mode;Output voltage differential sensing;Frequency synchronization;Operating status indication;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 2.8V~5.5V
Switch tube (built-in/external): Built-in
Output Current: 16A
Output Voltage: 600mV~3.36V
Quiescent Current: 65uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.08 g

Overview

Input Voltage: 2.8V to 5.5V Output Voltage: 0.6V to 3.36V Four high-efficiency step-down DC/DC converter cores: Maximum output current: 16A (4A/phase) Programmable output voltage slew rate range: 0.5mV/µs to 10mV/µs Switching frequency: 2MHz Spread spectrum mode and phase interleaving Configurable general-purpose I/O (GPIO) I²C-compatible interface supporting Standard (100kHz), Fast (400kHz), Fast+ (1MHz), and High-Speed (3.4MHz) modes Interrupt function with programmable masking Programmable power-good signal (PGOOD) Output short-circuit and overload protection Overtemperature warning and protection OVP and UVLO

Applications

Automotive infotainment systems
Instrument clusters
Radar and camera power applications

Key features

Automotive-grade compliant
AEC-Q100 qualified with the following characteristics:
Device Temperature Grade 1: –40°C to +125°C ambient operating temperature range
Device HBM ESD Classification Level 2
Device CDM ESD Classification Level C4B

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
LP87561IRNFRQ1#C1850348TI · PFQFN-26-EP(4x4.5)	TI	PFQFN-26-EP(4x4.5)	5	₹955.99 · 5 in stock	View
LP87565CRNFTQ1#C1880047TI · VQFN-26-HR-EP(4x4.5)	TI	VQFN-26-HR-EP(4x4.5)	20	₹807.45 · 20 in stock	View
LP875630RNFRQ1#C701984TI · VQFN-26-HR-EP(4x4.5)	TI	VQFN-26-HR-EP(4x4.5)	26	₹1,065.08 · 26 in stock	View
LP875620RNFRQ1#C1849542TI · PFQFN-26-EP(4x4.5)	TI	PFQFN-26-EP(4x4.5)	On request	₹1,076.25 · 0 in stock	View
LP875650RNFRQ1#C1850346TI · PFQFN-26-EP(4x4.5)	TI	PFQFN-26-EP(4x4.5)	On request	₹331.82 · 0 in stock	View
