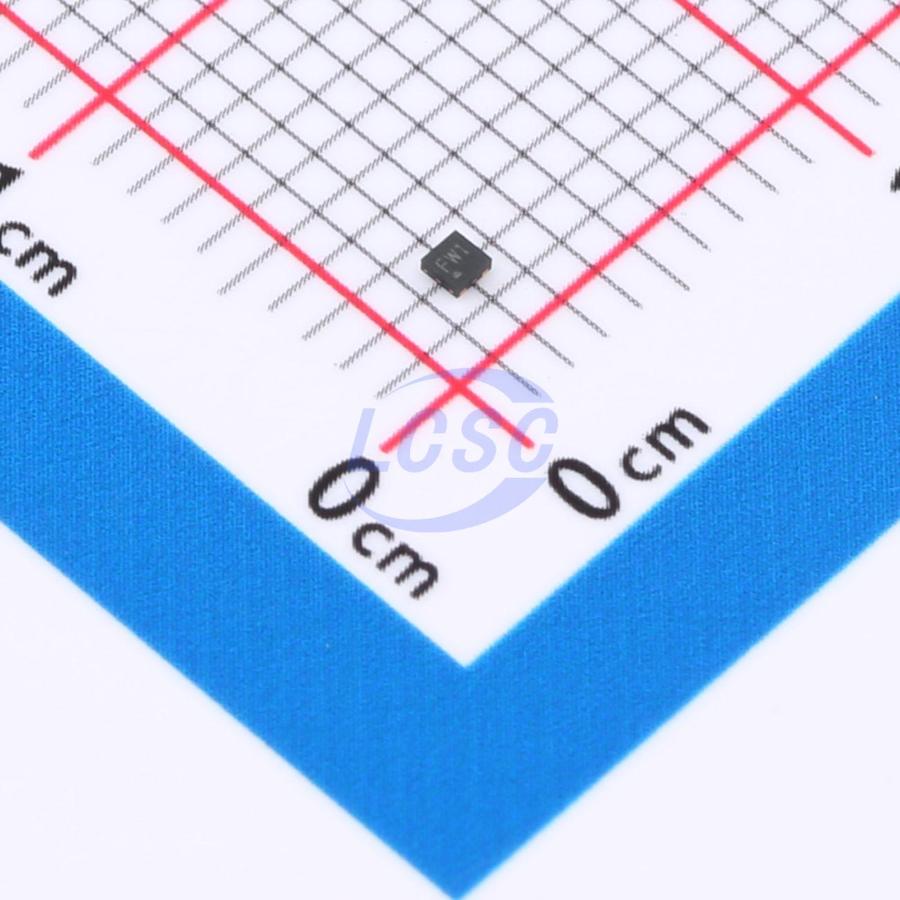

LPB1010HQVF
Battery Protection IC Lithium Battery DFN-4-EP(1x1)
1-Cell Li-Battery Protection IC with Integrated MOSFET
- Manufacturer
- LOWPOWER
- Manufacturer part #
- LPB1010HQVF
- Store part #
- C47345803
- Package / case
- DFN-4-EP(1x1)
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
17,015 in stock
#C47345803
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.62 | ₹58.10 |
| 50+ | ₹9.16 | ₹458.00 |
| 150+ | ₹7.92 | ₹1,188.00 |
| 500+ | ₹7.01 | ₹3,505.00 |
| 2,500+ | ₹6.27 | ₹15,675.00 |
| 5,000+ | ₹5.90 | ₹29,500.00 |
5 × ₹11.62
₹58.10
excl. GST
₹68.56 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 12,000 per reel
LPB1010HQVF
₹58.10 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 500nA
- 0V Battery Charge
- Support
- Type of Battery
- Lithium Battery
- Operating Voltage
- 0V~4.2V
- Features
- Overcharge protection;Over-discharge protection;Overcurrent Protection;Short-Circuit Protection
- The Chip Type
- Protection IC
- Charge Current - Max
- 400mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 12,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.013 g
Overview
The LPB1010H series is an IC integrating a MOSFET, designed for lithium-ion/polymer battery protection. The device incorporates a 60mΩ N-channel MOSFET to connect the system ground to the battery negative terminal. It supports all protection functions for lithium-ion/polymer batteries, including overcharge voltage and overdischarge voltage protection, overdischarge current and overcurrent protection, load short-circuit protection, and overtemperature protection. The LPB1010H features ultra-low operating current, helping to reduce system power consumption. With high-accuracy overcharge voltage protection, the device ensures safe charging while maximizing battery capacity utilization. This series is available in a space-saving 4-pin DFN package measuring only 1mm × 1mm.
Applications
- Bluetooth headsets
- Single-cell Li-ion battery packs
- Lithium polymer battery packs
- Wearable devices
Key features
- Integrated low on-resistance N-channel MOSFET: 60mΩ
- Ultra-low operating current consumption: 0.5μA
- Ultra-low shutdown current: <10nA
- High-precision voltage protection (±25mV)
- Low overcurrent protection
- Discharge overcurrent protection: 150mA
- Charge overcurrent protection: 300mA
- Discharge short-circuit protection: 450mA
- Reverse battery protection
- Thermal shutdown protection
- Transport mode with GPIO control support
- 0V battery charging support
- ESD protection: HBM 2kV, CDM 0.5kV
- DFN-4 package, 1mm × 1mm footprint
