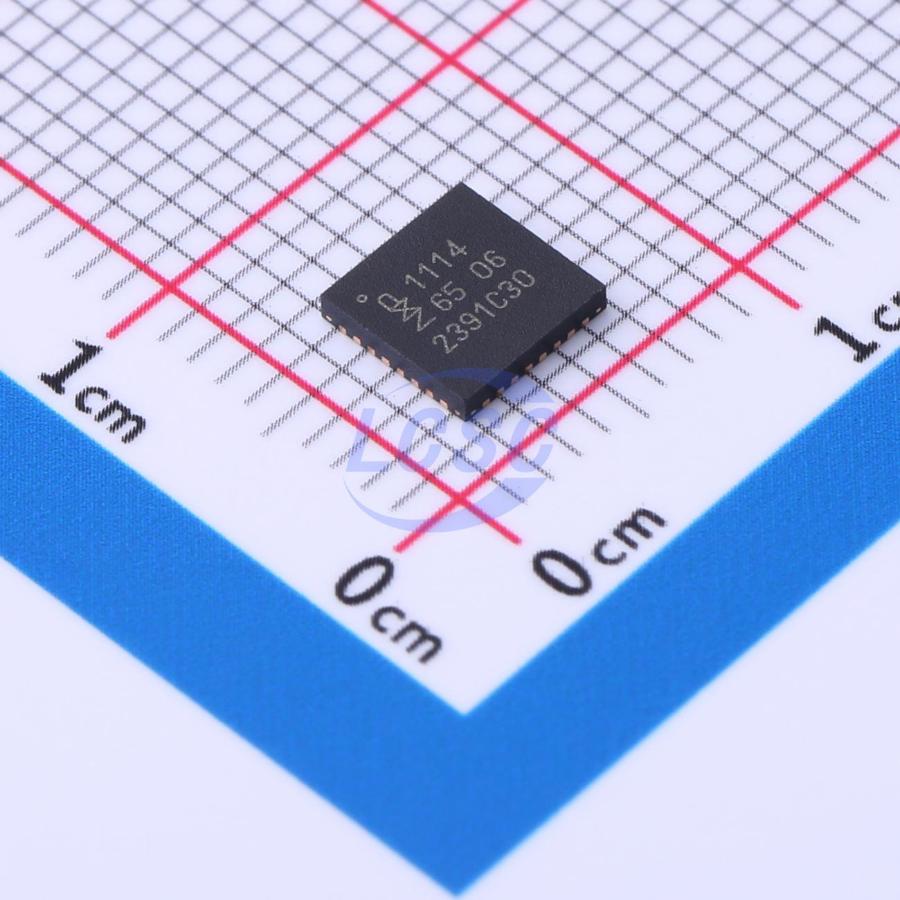

LPC1114FHI33/302,5

The LPC1111/12/13/14 is a family of low-cost microcontrollers based on the ARM Cortex-M0 core, designed as drop-in replacements for existing 8-bit/16-bit applications. They deliver high performance, low power consumption, an easy-to-use instruction set and memory address space, and more compact code size compared to existing 8-bit/16-bit architectures. The LPC1111/12/13/14 operates at up to 50MHz. Peripherals include: up to 32kB Flash, 8kB data memory, one Fast-mode Plus I²C bus interface, one RS-485/EIA-485 UART, two SPI interfaces with SSP support, four general-purpose timers, one 10-bit ADC, and up to 42 GPIO pins.

Applications

• Electronic measurement
• Lighting
• Alarm systems
• White goods

Key features

• ARM Cortex-M0 processor, operating frequency up to 50MHz
• ARM Cortex-M0 processor with built-in NVIC
• SWD (Serial Wire Debug)
• System tick timer
• 32kB (LPC1114), 24kB (LPC1113), 16kB (LPC1112), or 8kB (LPC1111) on-chip Flash program memory
• 8kB, 4kB, or 2kB SRAM
• ISP and IAP via on-chip bootloader software
• Up to 42 GPIO pins with configurable pull-up and pull-down resistors
• GPIO pins usable as edge- or level-triggered interrupt sources
• Maximum current output drive capability of 20mA per pin
• Maximum sink current of 20mA on I²C bus pins in Fast-mode Plus
• 4 general-purpose timers/counters with 4 capture inputs and 13 match outputs
• Programmable WDT
• 10-bit ADC with input multiplexing across 8 pins
• UART with fractional baud rate generator, internal FIFO, and RS-485 mode support
• 2 SSP-capable SPI controllers with FIFO and multi-protocol support (dual SPI interfaces available on LQFP48 and PLCC44 packages only)
• I²C bus interface supporting full I²C bus specification and Fast-mode Plus, data rate up to 1Mbit/s, with multiple address recognition and monitor mode
• 12MHz internal RC (IRC) oscillator, accuracy trimmed to 1%, usable as system clock
• Crystal oscillator operating range: 1MHz~25MHz
• Programmable watchdog oscillator, frequency range: 7.8kHz~1.8MHz
• PLL allows CPU to operate at maximum speed without a high-frequency crystal; clock sourced from system oscillator or internal RC oscillator
• Clock output function with divider, connectable to main oscillator clock, IRC clock, CPU clock, and watchdog clock
• Integrated PMU minimizes power consumption in Sleep, Deep-sleep, and Deep power-down modes
• Power Profile optimization via boot ROM — achieves performance optimization and power minimization in a given application with simple function calls (LPC1100L series only: LPC111x/102/202/302)
• 3 power-saving modes: Sleep, Deep-sleep, and Deep power-down
• Processor wake-up from Deep-sleep mode via dedicated Start Logic, triggerable from up to 13 function pins
• POR (Power-On Reset)
• BOD (Brown-Out Detection) with four independent thresholds, supporting interrupt generation and forced reset
• Unique device serial number
• Single supply voltage (1.8V~3.6V)
• Available packages: LQFP48, PLCC44, and HVQFN33
