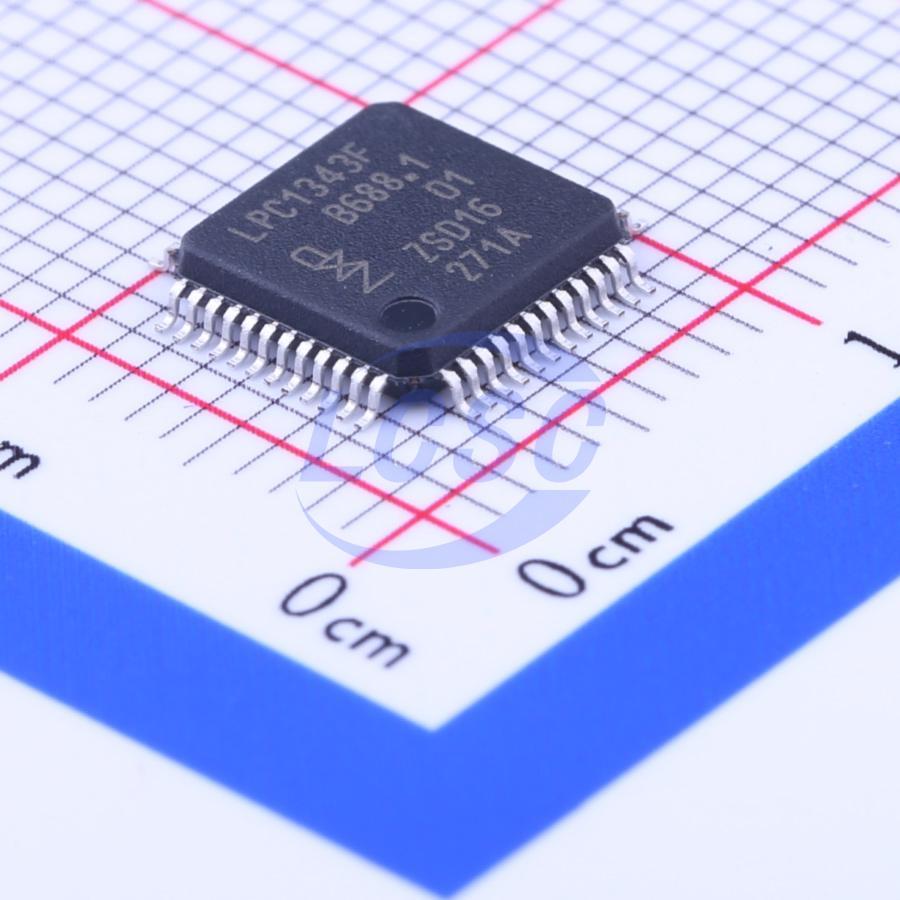

LPC1343FBD48,151

The LPC1311/13/42/43 are ARM Cortex-M3 based microcontrollers for embedded applications featuring a high level of integration and low power consumption. The ARM Cortex-M3 is a next generation core that offers system enhancements such as enhanced debug features and a higher level of support block integration. The LPC1311/13/42/43 operate at CPU frequencies of up to 72 MHz. The ARM Cortex-M3 CPU incorporates a 3-stage pipeline and uses a Harvard architecture with separate local instruction and data buses as well as a third bus for peripherals. The ARM Cortex-M3 CPU also includes an internal prefetch unit that supports speculative branching. The peripheral complement of the LPC1311/13/42/43 includes up to 32 kB of flash memory, up to 8 kB of data memory, USB Device (LPC1342/43 only), one Fast-mode Plus I2C-bus interface, one UART, four general purpose timers, and up to 42 general purpose I/O pins.

Applications

• eMetering
• Lighting
• Alarm systems
• White goods

Key features

• ARM Cortex-M3 processor, running at frequencies of up to 72 MHz.
• ARM Cortex-M3 built-in Nested Vectored Interrupt Controller (NVIC).
• 32 kB (LPC1343/13)/16 kB (LPC1342)/8 kB (LPC1311) on-chip flash programming memory.
• 8 kB (LPC1343/13)/4 kB (LPC1342/11) SRAM.
• In-System Programming (ISP) and In-Application Programming (IAP) via on-chip bootloader software.
• Selectable boot-up: UART or USB (USB on LPC1342/43 only).
• On LPC1342/43: USB MSC and HID on-chip drivers.
• Serial interfaces:
• USB 2.0 full-speed device controller with on-chip PHY for device (LPC1342/43 only).
• UART with fractional baud rate generation, modem, internal FIFO, and RS-485/EIA-485 support.
• SSP controller with FIFO and multi-protocol capabilities.
• Additional SSP controller on LPC1313FBD48/01.
• I2C-bus interface supporting full I2C-bus specification and Fast-mode Plus with a data rate of 1 Mbit/s with multiple address recognition and monitor mode.
• Other peripherals:
• Up to 42 General Purpose I/O (GPIO) pins with configurable pull-up/pull-down resistors.
• Four general purpose counter/timers with a total of four capture inputs and 13 match outputs.
• Programmable WatchDog Timer (WDT).
• Programmable Windowed Watchdog Timer (WWDT) on LPC1311/01 and LPC1313/01.
• System tick timer.
• Serial Wire Debug and Serial Wire Trace port.
• High-current output driver (20 mA) on one pin.
• High-current sink drivers (20 mA) on two I2C-bus pins in Fast-mode Plus.
• Integrated PMU (Power Management Unit) to minimize power consumption during Sleep, Deep-sleep, and Deep power-down modes.
• Power profiles residing in boot ROM allowing to optimize performance and minimize power consumption for any given application through one simple function call. (LPC1300L series, on LPC1311/01 and LPC1313/01 only.)
• Three reduced power modes: Sleep, Deep-sleep, and Deep power-down.
• Single power supply (2.0 V to 3.6 V).
• 10-bit ADC with input multiplexing among 8 pins.
• GPIO pins can be used as edge and level sensitive interrupt sources.
• Clock output function with divider that can reflect the system oscillator clock, IRC clock, CPU clock, or the watchdog clock.
• Processor wake-up from Deep-sleep mode via a dedicated start logic using up to 40 of the functional pins.
• Brownout detect with four separate thresholds for interrupt and one threshold for forced reset (four thresholds for forced reset on the LPC1311/01 and LPC1313/01 parts).
• Power-On Reset (POR).
• Integrated oscillator with an operating range of 1 MHz to 25 MHz.
• 12 MHz internal RC oscillator trimmed to 1 % accuracy over the entire temperature and voltage range that can optionally be used as a system clock.
• Programmable watchdog oscillator with a frequency range of 7.8 kHz to 1.8 MHz.
• System PLL allows CPU operation up to the maximum CPU rate without the need for a high-frequency crystal. May be run from the system oscillator or the internal RC oscillator.
• For USB (LPC1342/43), a second, dedicated PLL is provided.
• Code Read Protection (CRP) with different security levels. Unique device serial number for identification.
• Available as 48-pin LQFP package and 33-pin HVQFN package.
