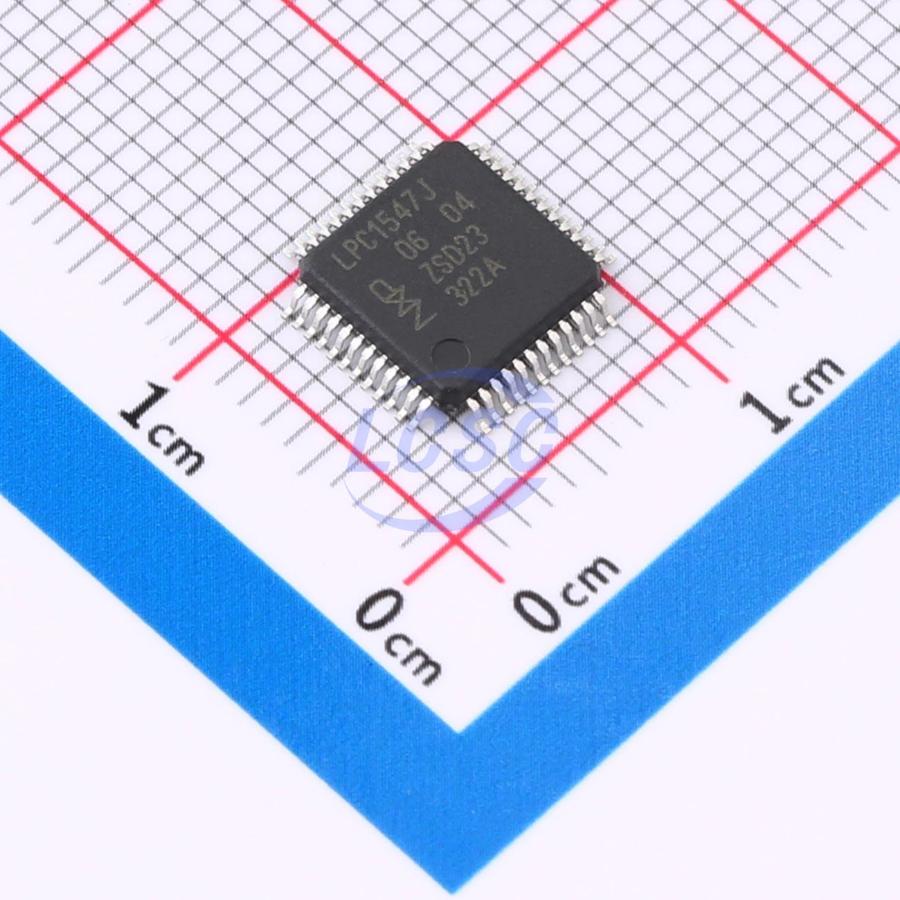

LPC1547JBD48QL

The LPC15xx are ARM Cortex-M3 based microcontrollers for embedded applications featuring a rich peripheral set with very low power consumption. The ARM Cortex-M3 is a next generation core that offers system enhancements such as enhanced debug features and a higher level of support block integration. The LPC15xx operate at CPU frequencies of up to 72 MHz. The ARM Cortex-M3 CPU incorporates a 3-stage pipeline and uses a Harvard architecture with separate local instruction and data buses as well as a third bus for peripherals. The ARM Cortex-M3 CPU also includes an internal prefetch unit that supports speculative branching. The LPC15xx includes up to 256 kB of flash memory, 32 kB of ROM, a 4 kB EEPROM, and up to 36 kB of SRAM. The peripheral complement includes one full-speed USB 2.0 device, two SPI interfaces, three USARTs, one Fast-mode Plus I²C -bus interface, one C_CAN module, PWM/timer subsystem with four configurable, multi-purpose State Configurable Timers (SCTimer/PWM) with input pre-processing unit, a Real-time clock module with independent power supply and a dedicated oscillator, two 12-channel/12-bit, 2 Msamples/s ADCs, one 12-bit, 500 kSamples/s DAC, four voltage comparators with internal voltage reference, and a temperature sensor. A DMA engine can service most peripherals.

Applications

• Industrial control
• Home appliances
• Medical equipment
• Motor control
• Power management
• Data acquisition systems
• Automation equipment
• Sensor networks
• Communication modules

Key features

• ARM Cortex-M3 processor (version r2p1), running at frequencies of up to 72 MHz.
• ARM Cortex-M3 built-in Nested Vectored Interrupt Controller (NVIC).
• System tick timer.
• Serial Wire Debug (SWD) with four breakpoints and two watchpoints.
• Single-cycle multiplier supported.
• Memory Protection Unit (MPU) included.
• Up to 256 kB on-chip flash programming memory with 256 Byte page write and erase.
• Up to 36 kB SRAM.
• 4 kB EEPROM.
• ROM API support:
• Boot loader with boot options from flash or external source via USART, C_CAN, or USB
• USB drivers
• ADC drivers
• SPI drivers
• USART drivers
• I²C drivers
• Power profiles and power mode configuration with low-power mode configuration option
• DMA drivers
• C_CAN drivers
• Flash In-Application Programming (IAP) and In-System Programming (ISP).
• Digital peripherals:
• Simple DMA engine with 18 channels and 20 programmable input triggers.
• High-speed GPIO interface with up to 76 General-Purpose I/O (GPIO) pins with configurable pull-up/pull-down resistors, open-drain mode, input inverter, and programmable digital glitch filter.
• GPIO interrupt generation capability with boolean pattern-matching feature on eight external inputs.
• Two GPIO grouped port interrupts.
• Switch matrix for flexible configuration of each I/O pin function.
• CRC engine.
• Quadrature Encoder Interface (QEI).
• Configurable PWM/timer/motor control subsystem:
• Up to four 32-bit counter/timers or up to eight 16-bit counter/timers or combinations of 16-bit and 32-bit timers.
• Up to 28 match outputs and 22 configurable capture inputs with input multiplexer.
• Up to 28 PWM outputs total.
• Dither engine for improved average resolution of pulse edges.
• Four State Configurable Timers (SCTimers) for highly flexible, event-driven timing and PWM applications.
• SCT Input Pre-processor Unit (SCTIPU) for processing timer inputs and immediate handling of abort situations.
• Integrated with ADC threshold compare interrupts, temperature sensor, and analog comparator outputs for motor control feedback using analog signals.
• Special-application and simple timers:
• 24-bit, four-channel, multi-rate timer (MRT) for repetitive interrupt generation at up to four programmable, fixed rates.
• Repetitive interrupt timer for general purpose use.
• Windowed Watchdog timer (WWDT).
• High-resolution 32-bit Real-time clock (RTC) with selectable 1 s or 1 ms time resolution running in the always-on power domain. RTC can be used for wake-up from all low power modes including Deep power-down.
• Analog peripherals:
• Two 12-bit ADC with up to 12 input channels per ADC and with multiple internal and external trigger inputs and sample rates of up to 2 Msamples/s. Each ADC supports two independent conversion sequences. ADC conversion clock can be the system clock or an asynchronous clock derived from one of the three PLLs.
• One 12-bit DAC.
• Integrated temperature sensor and band gap internal reference voltage.
• Four comparators with external and internal voltage references (ACMP0 to 3). Comparator outputs are internally connected to the SCTimer/PWMs and ADCs and externally to pins. Each comparator output contains a programmable glitch filter.
• Serial interfaces:
• Three USART interfaces with DMA, RS-485 support, autobaud, and with synchronous mode and 32 kHz mode for wake-up from Deep-sleep and Power-down modes. The USARTs share a fractional baud-rate generator.
• Two SPI controllers.
• One I²C -bus interface supporting fast mode and Fast-mode Plus with data rates of up to 1Mbit/s and with multiple address recognition and monitor mode.
• One C_CAN controller.
• One USB 2.0 full-speed device controller with on-chip PHY.
• Clock generation:
• 12 MHz internal RC oscillator trimmed to 1 % accuracy for -25 ℃ ≤ Tamb ≤ +85 ℃ that can optionally be used as a system clock.
• Crystal oscillator with an operating range of 1 MHz to 25 MHz.
