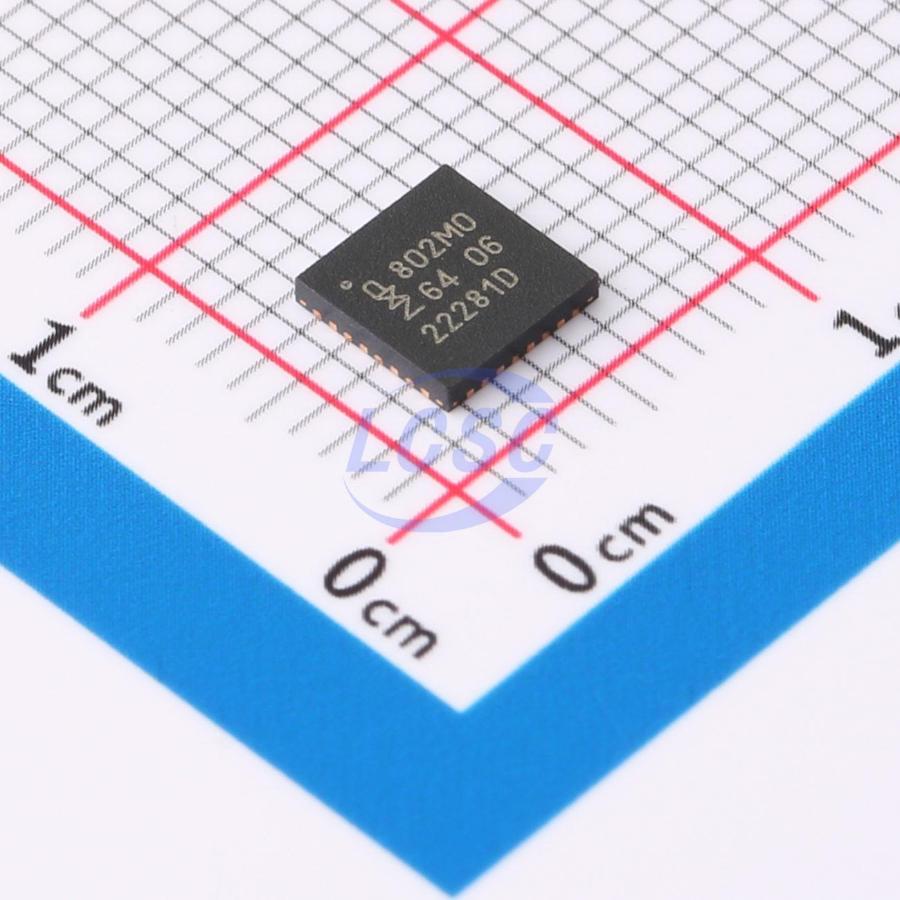

LPC802M001JHI33E

The LPC804 are an Arm Cortex-M0+ based, low-cost 32-bit MCU family operating at CPU frequencies of up to 15 MHz. The LPC804 supports 32 KB of flash memory and 4 KB of SRAM. The peripheral complement of the LPC804 includes a CRC engine, two I2C -bus interfaces, up to two USARTs, one SPI interface, Capacitive Touch Interface (Cap Touch), one multi-rate timer, self-wake-up timer, one general purpose 32-bit counter/timer, one 12-bit ADC, one 10-bit DAC, one analog comparator, function-configurable I/O ports through a switch matrix, an input pattern match engine, Programmable Logic Unit (PLU), and up to 30 general-purpose I/O pins.

Key features

• Arm Cortex-M0+ processor (revision r0p1), running at frequencies of up to 15 MHz with single-cycle multiplier and fast single-cycle I/O port
• Arm Cortex-M0+ built-in Nested Vectored Interrupt Controller (NVIC)
• System tick timer
• AHB multilayer matrix
• Serial Wire Debug (SWD) with four break points and two watch points. JTAG boundary scan (BSDL) supported
• Up to 32 KB on-chip EEPROM based flash programming memory
• Code Read Protection (CRP)
• 4 KB SRAM
• Independent supplies on each package side permitting level-shifting signals from one off-chip voltage domain to another and/or interfacing directly to off-chip peripherals operating at different supply levels
• The switch matrix provides level shifter functionality to allow up to two selected signals to be routed from user-selected pins in one voltage domain to selected pins in the alternate domain. This feature can also be used on a single supply device if voltage level shifting is not required
• Boot loader
• Supports Flash In-Application Programming (IAP)
• Supports In-System Programming (ISP) through USART
• On-chip ROM APIs for integer divide
• Free Running Oscillator (FRO) API
• High-speed GPIO interface connected to the Arm Cortex-M0+ I/O bus with up to 30 General-Purpose I/O (GPIO) pins with configurable pull-up/pull-down resistors, programmable open-drain mode, and input inverter. GPIO direction control supports independent set/clear/toggle of individual bits
• High-current source output driver (20 mA) on five pins
• GPIO interrupt generation capability with boolean pattern-matching feature on eight GPIO inputs
• Switch matrix for flexible configuration of each I/O pin function
• CRC engine
• Capacitive Touch Interface
• Programmable Logic Unit (PLU) to create small combinatorial and/or sequential logic networks including simple state machines
• One 32-bit general purpose counter/timer, with four match outputs and three capture inputs. Supports PWM mode, and external count
• Four channel Multi-Rate Timer (MRT) for repetitive interrupt generation at up to four programmable, fixed rates
• Self-Wake-up Timer (WKT) clocked from either Free Running Oscillator (FRO), a low-power, low-frequency internal oscillator, or an external clock input
• Windowed Watchdog timer (WWDT)
• One 12-bit ADC with up to 12 input channels with multiple internal and external trigger inputs and with sample rates of up to 480 Ksamples/s. The ADC supports two independent conversion sequences
• Comparator with five input pins and external or internal reference voltage
• One 10-bit DAC
• Two USART interfaces with pin functions assigned through the switch matrix and one fractional baud rate generators
• One SPI controllers with pin functions assigned through the switch matrix
• Two I2C -bus interface. It supports data rates up to 400 kbit/s on standard digital pins
• Free Running Oscillator (FRO). This oscillator provides a selectable 9 MHz, 12 MHz and 15 MHz outputs that can be used as a system clock. The FRO is trimmed to ±1 % accuracy over the entire voltage and temperature range of 0 C to 70 C
• 1 MHz low power oscillator can be used as a clock source
• Clock output function with divider that can reflect all internal clock sources
• Reduced power modes: sleep mode, deep-sleep mode, power-down mode, and deep power-down mode
• Wake-up from deep-sleep and power-down modes on activity on USART, SPI, and I2C peripherals
• Wake-up from deep power-down mode on multiple pins
• Timer-controlled self wake-up from sleep, deep-sleep, and power-down modes
• Power-On Reset (POR)
• Brownout detect (BOD)
• Unique device serial number for identification
• Single power supply (1.71 V to 3.6 V)
• Operating temperature range -40 ℃ to +105 ℃
• Available in WLCSP20, TSSOP20, TSSOP24, and HVQFN33 packages
