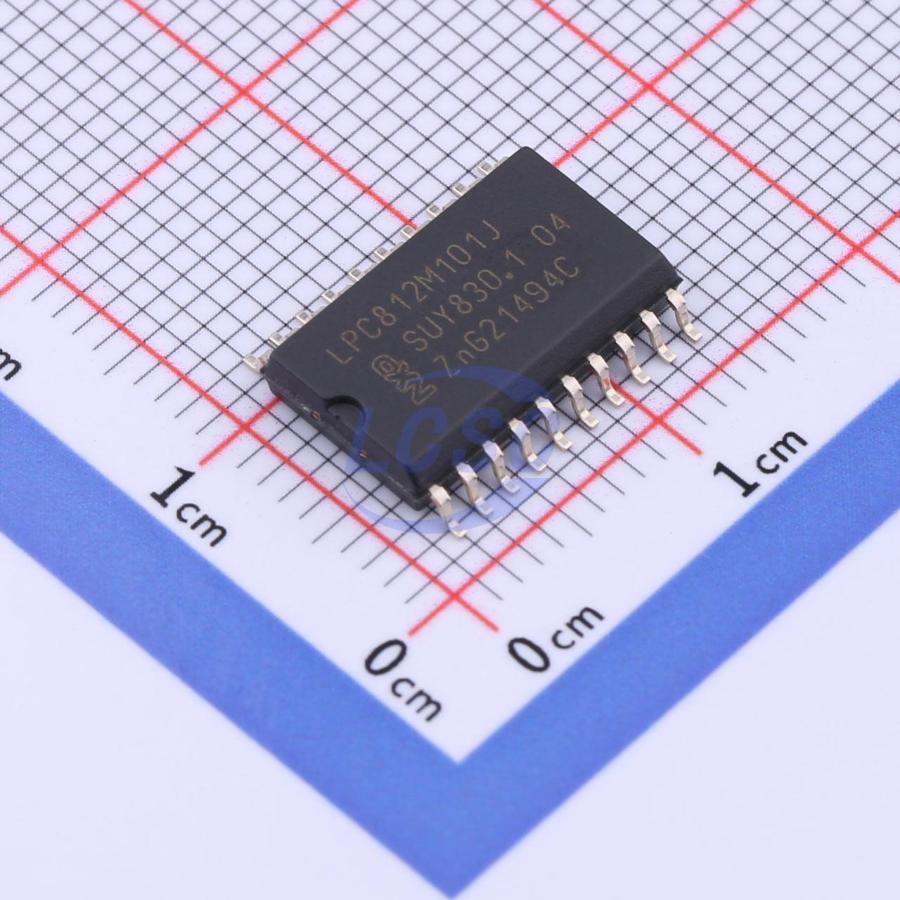

LPC812M101JD20J

The LPC81xM is a family of low-cost, 32-bit MCUs based on the ARM Cortex-M0+, operating at CPU frequencies up to 30 MHz. The LPC81xM supports up to 16 kB of flash memory and 4 kB of SRAM. Peripherals include: a CRC engine, an I2C bus interface, up to three USARTs, up to two SPI interfaces, a multi-rate timer, a self-wake-up timer, a state-configurable timer, a comparator, function-configurable I/O ports with a switch matrix, an input pattern match engine, and up to 18 general-purpose I/O pins.

Key features

• ARM Cortex-M0+ processor, operating up to 30 MHz, with single-cycle multiplier and fast single-cycle I/O ports
• ARM Cortex-M0+ built-in NVIC
• SysTick timer
• Serial Wire Debug (SWD) and JTAG boundary scan support
• Micro Trace Buffer (MTB) support
• Up to 16 kB on-chip flash with 64-byte page write and erase
• 4 kB SRAM
• Bootloader
• USART driver
• I2C driver
• Power configuration
• Flash IAP and ISP
• High-speed GPIO interface connected to ARM Cortex-M0+ I/O bus, up to 18 GPIO pins with configurable pull-up/pull-down resistors, programmable open-drain mode, input inverter, and glitch filter
• 4 pins with high-current output drive capability (20 mA)
• Self-wake-up timer (WKT) with IRC or low-power, low-frequency internal oscillator as clock input
• CRC engine
• WWDT
• Comparator with integrated external voltage reference, pin functions assigned or enabled via switch matrix
• 3 USART interfaces with pin functions assigned via switch matrix
• 2 SPI controllers with pin functions assigned via switch matrix
• 1 I2C bus interface with pin functions assigned via switch matrix
• 12 MHz internal RC oscillator trimmed to 1% accuracy, optionally used as system clock
• Crystal oscillator operating from 1 MHz to 25 MHz
• Programmable watchdog oscillator from 9.4 kHz to 2.3 MHz
• 10 kHz low-power oscillator for WKT
• PLL for maximum CPU frequency generation without high-frequency crystal; supports system oscillator, external clock input CLKIN, or internal RC oscillator as clock source
• Clock output with divider, reflecting crystal oscillator, main clock, IRC, or watchdog oscillator
• Integrated PMU for minimized power consumption
• Low-power modes: Sleep, Deep-sleep, Power-down, and Deep power-down
• Deep-sleep and Power-down modes wakeable by USART, SPI, and I2C peripherals
• Deep power-down mode supports timer-controlled self-wake-up
• POR
• Brown-out detection
• Unique serial number for device identification
• Single power supply
• Available in SO20, TSSOP20, TSSOP16, and DIP8 packages
