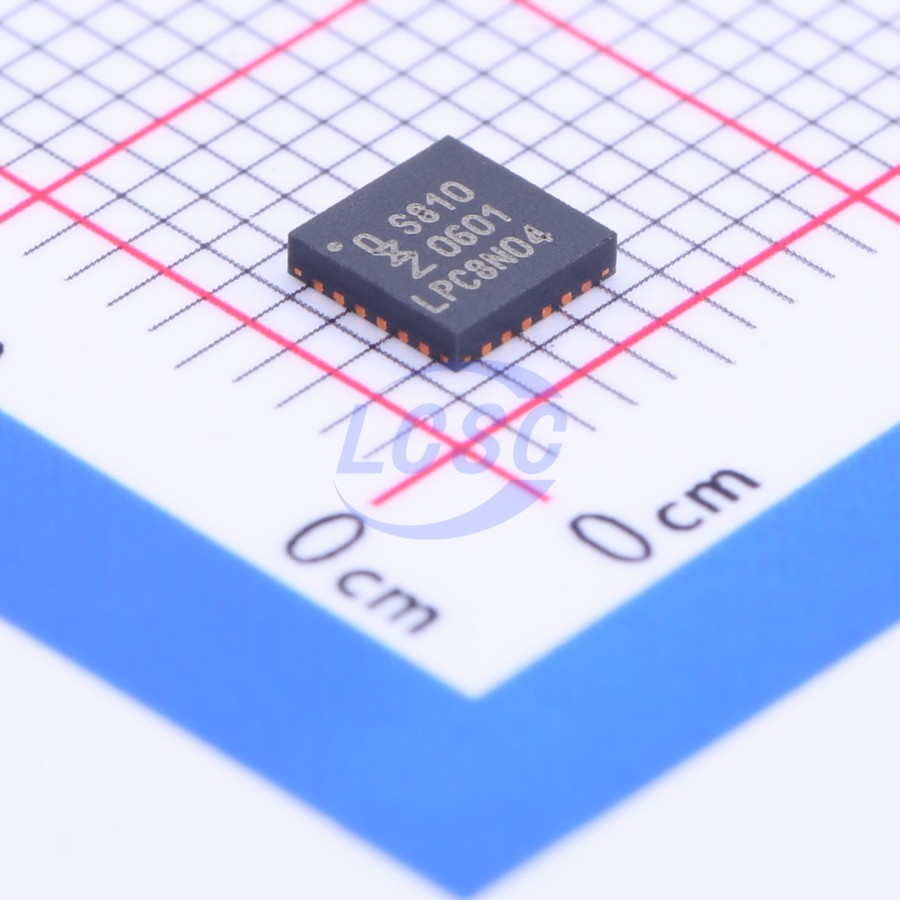

LPC8N04FHI24Z

The NXP LPC8N04 is an IC optimized for an entry level Cortex-M0+ MCU with built-in NFC interface. LPC8N04 supports an effective system solution with a minimal number of external components for NFC related applications. The embedded ARM Cortex-M0+ offers flexibility to the users of this IC to implement their own dedicated solution. The LPC8N04 contains multiple features, including multiple power-down modes and a selectable CPU frequency of up to 8 MHz, for ultra-low power consumption. Users can program this LPC8N04 with the industry-wide standard solutions for ARM Cortex-M0+ processors.

Applications

• Configurable LED strip/christmas tree LEDs via NFC
• Smart toy/interactive robot data logger
• Buttonless/contactless control panel
• Contactless diagnostic
• NFC e-locker
• Smart manufacturing
• NFC OTA

Key features

• System
• ARM Cortex-M0+ processor running at frequencies of up to 8 MHz
• ARM Cortex-M0+ built-in Nested Vectored Interrupt Controller (NVIC)
• ARM Serial Wire Debug (SWD)
• System tick timer
• IC reset input
• Memory
• 32 kB on-chip flash programming memory
• on-chip EEPROM of which 256 byte can be write protected
• 8 kB SRAM
• Digital peripherals
• Up to 12 General Purpose Input Output (GPIO) pins with configurable pull-up/pull-down resistors and repeater mode
• GPIO pins which can be used as edge and level sensitive interrupt sources
• High-current drivers/sinks (20 mA) on four GPIO pins
• High-current drivers/sinks (20 mA) on two I2C-bus pins
• Programmable WatchDog Timer (WDT)
• Analog peripherals
• Temperature sensor with ±1.5 ℃ absolute temperature accuracy between -40 ℃ and +85 ℃
• Communication interfaces
• NFC/RFID ISO 14443 type A interface
• I2C-bus interface supporting full I2C-bus specification and fast mode with a data rate of 400 kbit/s, with multiple address recognition and monitor mode
• Energy harvesting functionality to power the LPC8N04.
• OTA firmware update using Secondary Bootloader (SBL) library (See TN00040: LPC8N04: Encrypted Over the Air (OTA) Firmware update using NFC). OTA firmware update available on Boot ROM version 0.14.
• Clock generation
• 8 MHz internal RC oscillator, trimmed to 2 % accuracy, which is used for the system clock
• Timer oscillator operating at 32 kHz linked to the RTC timer unit
• Power control
• Support for 1.72 V to 3.6 V external voltages
• The LPC8N04 can also be powered from the NFC field
• Activation via NFC possible
• Integrated Power Management Unit (PMU) for versatile control of power consumption
• Four reduced power modes for ARM Cortex-M0+: sleep, deep sleep, deep power-down and battery off
• Power gating for each analog peripheral for ultra-low power operation
• <50 nA IC current consumption in battery off mode at 3.0 V
• Power-On Reset (POR)
• Unique device serial number for identification
