LRCDatasheet (PDF)

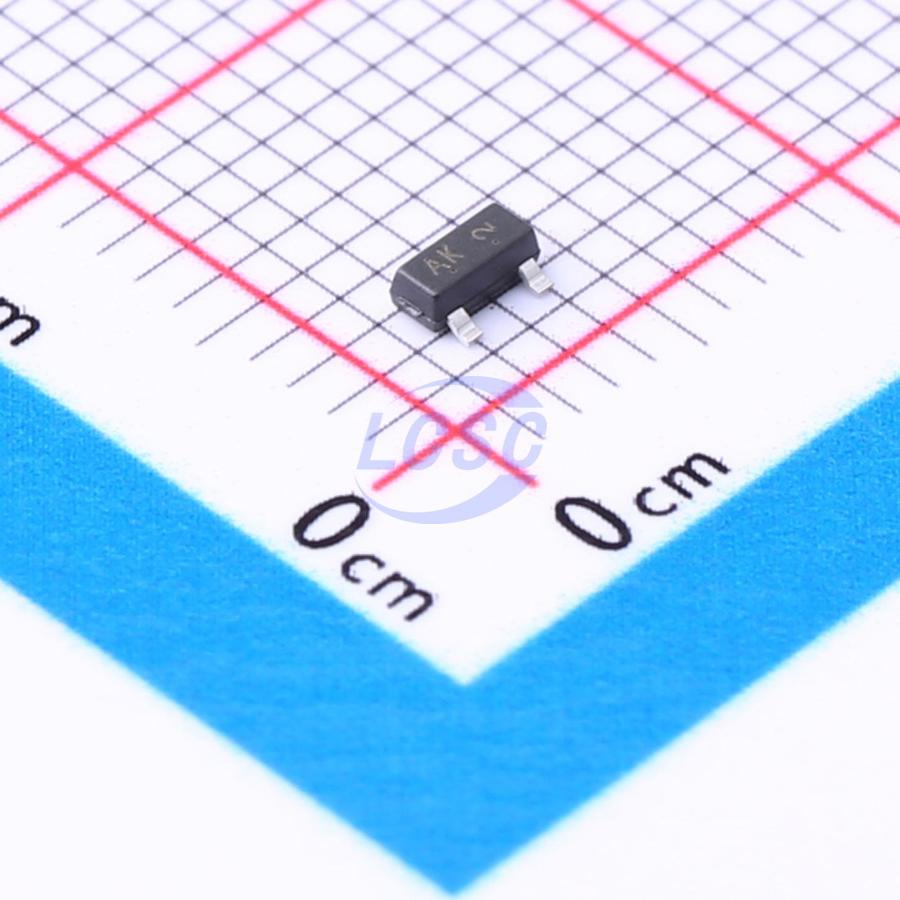

LR431AKLT1G
2.5V~36V ±0.5% 40V 100mA Adjustable SOT-23 Voltage Reference
SOT-23RoHSActive
Programmable Precision Reference
- Manufacturer
- LRC
- Manufacturer part #
- LR431AKLT1G
- Store part #
- C383260
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,780 in stock
#C383260
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.08 | ₹101.60 |
| 200+ | ₹3.98 | ₹796.00 |
| 600+ | ₹3.37 | ₹2,022.00 |
| 3,000+ | ₹3.00 | ₹9,000.00 |
| 9,000+ | ₹2.69 | ₹24,210.00 |
| 21,000+ | ₹2.51 | ₹52,710.00 |
20 × ₹5.08
₹101.60
excl. GST
₹119.89 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LR431AKLT1G
₹101.60 for 20 + GST
Specifications
- Output Voltage
- 2.5V~36V
- Tolerance
- ±0.5%
- Voltage - Supply
- 40V
- Minimum Cathode Current for Regulation
- 300uA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -40℃~+125℃
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.032 g
Overview
The LR431 is a three-terminal adjustable regulator with a guaranteed thermal stability over applicable temperature ranges. The output voltage may be set to any value between Vref (approximately 2.5V) and 36V with two external resistors. It provides very wide applications, including shunt regulator, series regulator, switching regulator, voltage reference and others.
Key features
- Low Dynamic output impedance 0.1Ω (Typ)
- Adjustable output voltage
- Fast turn-on response
- Sink current capability of 0.1mA to 100mA
- Low output noise
- Industrial temperature range
- Excellent temperature coefficient 25ppm/°C
- Electrostatic discharge voltage 2.5kV
