LRCDatasheet (PDF)

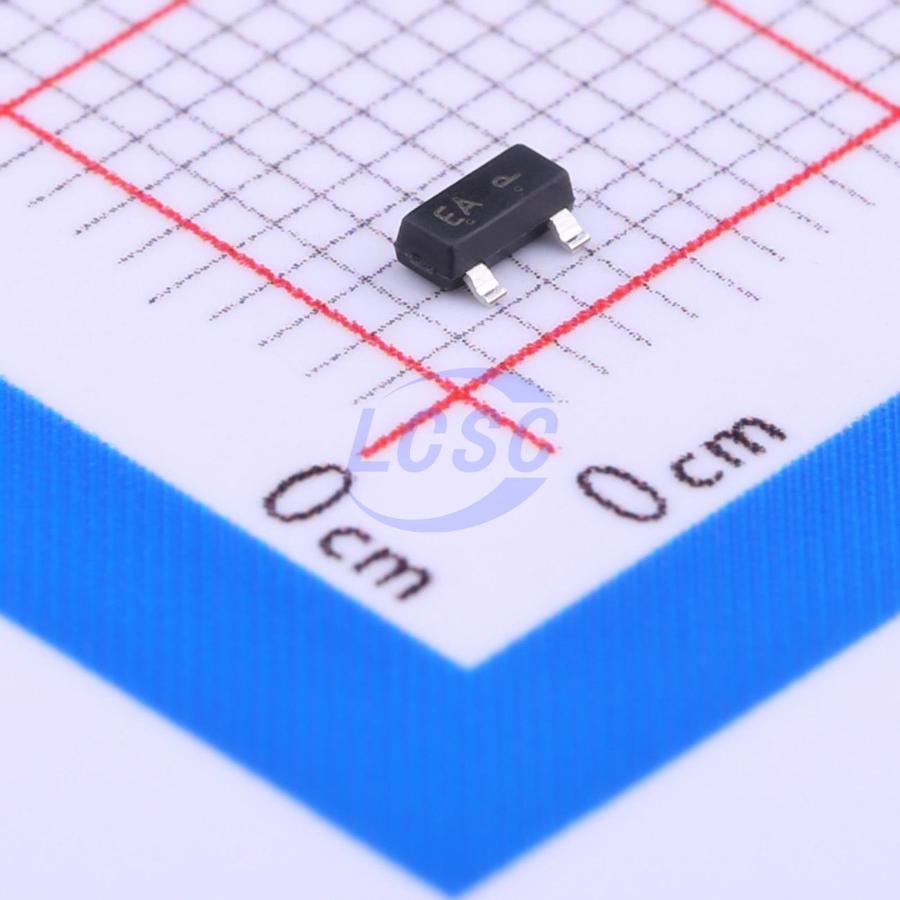

LR432ALT1G
Voltage Reference IC Adjustable 1.24V~18V ±1% 100mA SOT-23
SOT-23RoHSActive
Programmable precision linear integrated circuit
- Manufacturer
- LRC
- Manufacturer part #
- LR432ALT1G
- Store part #
- C83169
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C83169
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.10 | ₹91.00 |
| 100+ | ₹7.29 | ₹729.00 |
| 300+ | ₹6.38 | ₹1,914.00 |
| 3,000+ | ₹5.69 | ₹17,070.00 |
| 6,000+ | ₹5.15 | ₹30,900.00 |
| 9,000+ | ₹4.87 | ₹43,830.00 |
10 × ₹9.10
₹91.00
excl. GST
₹107.38 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LR432ALT1G
₹91.00 for 10 + GST
Specifications
- Output Voltage
- 1.24V~18V
- Quiescent Current
- 250nA
- Tolerance
- ±1%
- Voltage - Supply
- 1.24V~18V
- Minimum Cathode Current for Regulation
- 60uA
- Reference Type
- Series;Parallel
- Output Current
- 100mA
- Operating Temperature
- -40℃~+105℃
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.031 g
Overview
The LRC LR432ALT1G is a three-terminal adjustable regulator with a guaranteed thermal stability over applicable temperature ranges. The output voltage may be set to any value between V_REF (approximately 1.24V) and 18V with two external resistors. It provides very wide applications, including shunt regulator, series regulator, switching regulator, voltage reference and others.
Key features
- Precise Reference Voltage to 1.24V Guaranteed 1% Reference Voltage Tolerance
- Sink Current Capability, 80μA to 100mA Quick Turn-on
- Adjustable Output Voltage, Vo = V_REF to 18V
- 0.2 Ω Typical Output Impedance Marking: EA
- The material of product is ROHS compliant and does not contain any Br, Cl, and Sb2O3
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LR432ATLT1G#C2916239LRC · SOT-23 | LRC | SOT-23 | 2,480 | ₹10.33 · 2,480 in stock | View |
