ADIDatasheet (PDF)

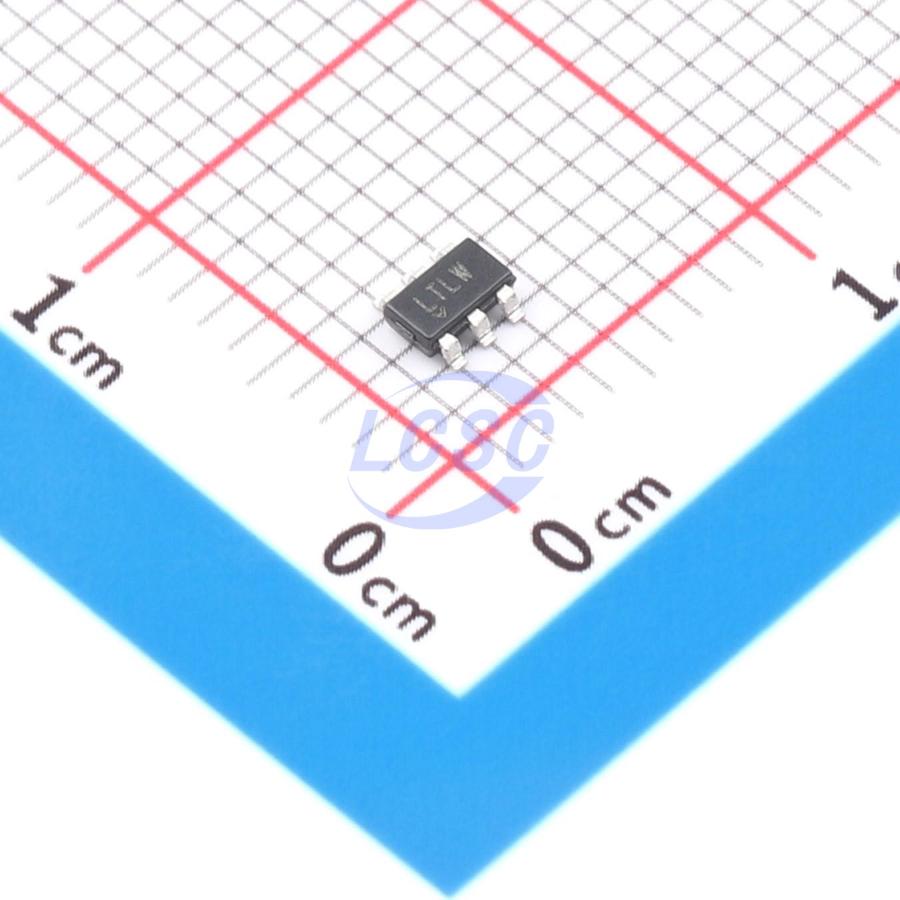

LTC1754ES6-5#TRPBF
700kHz boost converter 4.8V~5.2V 50mA TSOT-23-6L Voltage Regulators - DC DC Switching Regulators RoHS
TSOT-23-6LROHS3 CompliantActive
Micropower, Regulated 3.3V/5V Charge Pump with Shutdown in SOT-23
- Manufacturer
- ADI
- Manufacturer part #
- LTC1754ES6-5#TRPBF
- Store part #
- C674520
- Package / case
- TSOT-23-6L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C674520
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹825.94 | ₹825.94 |
| 10+ | ₹804.08 | ₹8,040.80 |
| 30+ | ₹789.59 | ₹23,687.70 |
| 100+ | ₹775.09 | ₹77,509.00 |
1 × ₹825.94
₹825.94
excl. GST
₹974.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LTC1754ES6-5#TRPBF
₹825.94 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 700kHz
- Function
- boost converter
- Features
- Low-power standby;Load disconnect;Output short-circuit protection
- Operating Voltage
- 2.7V~5.5V
- Output Voltage
- 4.8V~5.2V
- Output Current
- 50mA
- Quiescent Current
- 30uA
- Energy Efficiency
- 82.7%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.047 g
Overview
The LTC1754 is a micropower charge pump DC/DC converter that produces a regulated output. The input voltage range is 2V to 4.4V for 3.3V output and 2.7V to 5.5V for 5V output. Extremely low operating current and a low external parts count (one flying capacitor and two small bypass capacitors at VIN and VOUT) make the LTC1754 ideally suited for small, battery-powered applications. The total component area of the application circuit shown below is only 0.052 inch2. The LTC1754 operates as a Burst Mode switched capacitor voltage doubler to produce a regulated output. It has thermal shutdown capability and can survive a continuous short circuit from VOUT to GND. The LTC1754 is available in a 6-pin SOT-23 package.
Applications
- SIM Interface Supplies for GSM Cellular Telephones
- White LED Power Supplies
- Li-Ion Battery Backup Supplies
- Handheld Computers
- Smart Card Readers
- PCMCIA Local 5V Supplies
Key features
- Ultralow Power: 13μA
- Regulated Output Voltage: 3.3V ±4%, 5V ±4%
- 5V Output Current: 50mA (VIN ≥3.0V)
- 3.3V Output Current: 40mA (VIN ≥2.5V)
- No Inductors Needed
- Very Low Shutdown Current: <1μA
- Shutdown Disconnects Load from VIN
- Internal Oscillator: 600kHz
- Short-Circuit and Overtemperature Protected
- Ultrasmall Application Circuit: (0.052 Inch2)
- 6-Pin SOT-23 Package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ME2135A50M6G#C610263MICRONE · SOT-23-6 | MICRONE | SOT-23-6 | 33,325 | ₹11.51 · 33,325 in stock | View |
| LTC1754ES6-5#TRMPBF#C580438ADI · TSOT-23-6L | ADI | TSOT-23-6L | On request | ₹892.23 · 0 in stock | View | |
