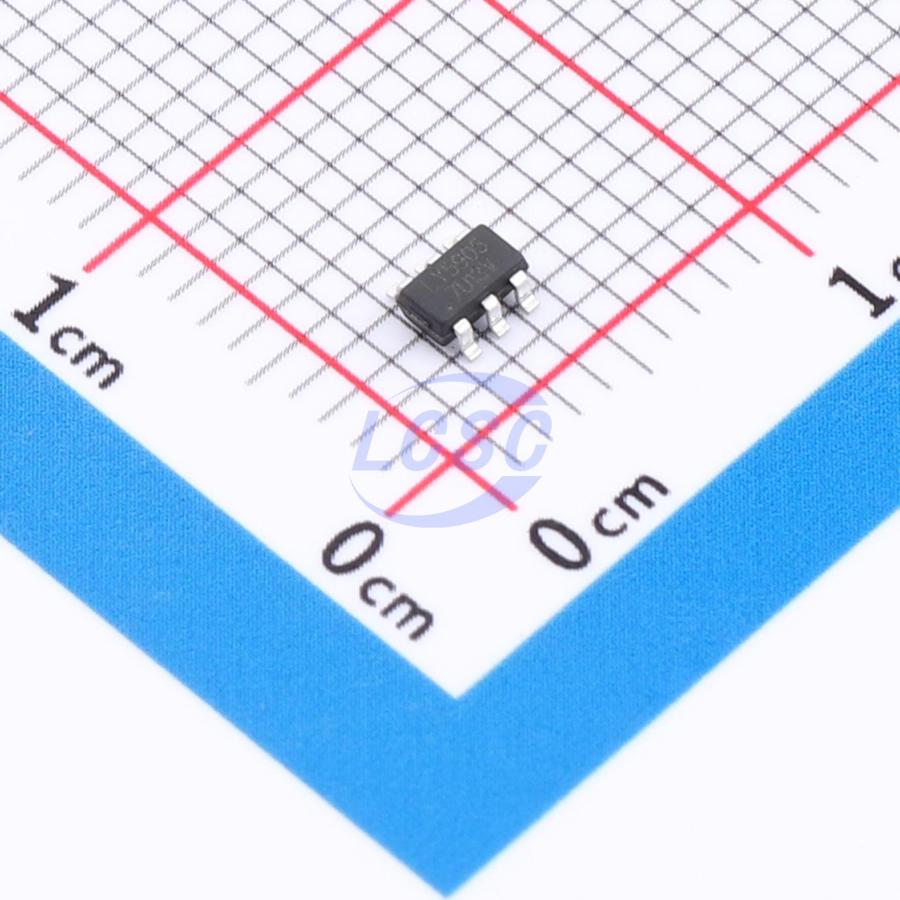

LY5905
1 Load Switch SOT-23-6 Power Distribution Switches, Load Drivers
SOT-23-6RoHSActive
Overvoltage and overcurrent protection chip
- Manufacturer
- Lingyang Micro
- Manufacturer part #
- LY5905
- Store part #
- C46613941
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,160 in stock
#C46613941
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.56 | ₹57.80 |
| 50+ | ₹9.06 | ₹453.00 |
| 150+ | ₹7.81 | ₹1,171.50 |
| 500+ | ₹6.87 | ₹3,435.00 |
| 3,000+ | ₹6.11 | ₹18,330.00 |
| 6,000+ | ₹5.74 | ₹34,440.00 |
5 × ₹11.56
₹57.80
excl. GST
₹68.20 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LY5905
₹57.80 for 5 + GST
Specifications
- Operating Temperature
- -25℃~+125℃
- Features
- Overcurrent Protection;Overvoltage protection;Over temperature protection;Under-voltage lockout;Output discharge function
- number of channels
- 1
- Operating Voltage
- 3.5V~30V
- RDS(on)
- 160mΩ
- Type
- Load Switch
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
The LY5905 is an overvoltage and overcurrent protection IC. It features overvoltage protection that rapidly shuts down the output when VCC encounters a hazardous surge voltage, and can withstand input voltages up to 30V, protecting downstream devices from surge damage. In addition, the IC integrates adjustable overcurrent protection, overtemperature protection, and other fault protection functions. The LY5905 is available in a compact SOT23-6 package.
Applications
- Bluetooth earphone charging case
- Wearable devices
- E-cigarettes
- Power banks
Key features
- 30V input voltage rating
- Integrated power transistor on-resistance: RON=0.16Ω
- OVP response time: <200ns
- OVP threshold voltage: 6.1V
- Adjustable OCP range: 0.17A–2A
- OCP current accuracy: ±15%
- Integrated on-chip over-temperature protection
- SOT23-6 compact package
