Lingyang MicroDatasheet (PDF)

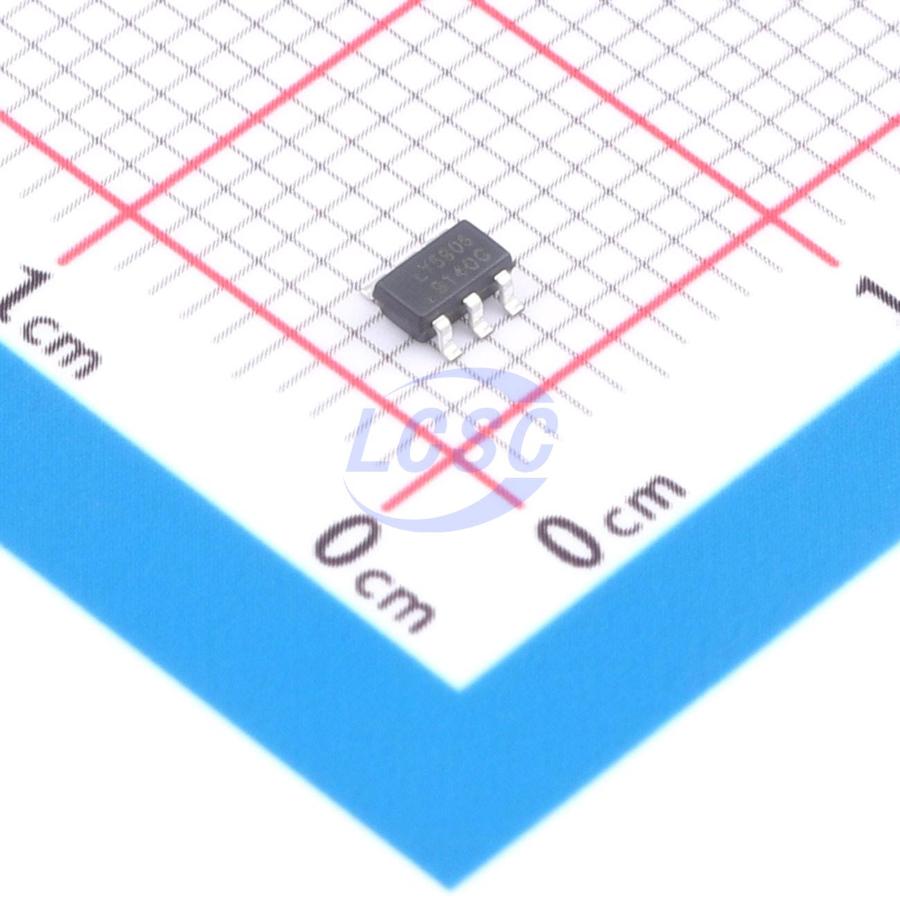

LY5906
2A SOT-23-6
SOT-23-6RoHSActive
Overvoltage and overcurrent protection chip
- Manufacturer
- Lingyang Micro
- Manufacturer part #
- LY5906
- Store part #
- C46613942
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,670 in stock
#C46613942
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹8.43 | ₹42.15 |
| 50+ | ₹7.38 | ₹369.00 |
| 150+ | ₹6.87 | ₹1,030.50 |
| 500+ | ₹6.47 | ₹3,235.00 |
| 3,000+ | ₹6.17 | ₹18,510.00 |
| 6,000+ | ₹6.01 | ₹36,060.00 |
5 × ₹8.43
₹42.15
excl. GST
₹49.74 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LY5906
₹42.15 for 5 + GST
Specifications
- Operating Temperature
- -25℃~+125℃
- Features
- Overcurrent Protection;Over temperature protection;Overvoltage protection;Under-voltage lockout;Output discharge function
- number of channels
- 1
- Maximum Continuous Current
- 2A
- Control Input Logic
- Active High
- Operating Voltage
- 3.5V~30V
- RDS(on)
- 130mΩ
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.038 g
Overview
LY5906 is an overvoltage and overcurrent protection IC. It features overvoltage protection that quickly shuts down the output when VCC encounters a hazardous surge voltage, and can withstand input voltages up to 30V, protecting downstream devices from surge damage. The internal default overvoltage protection threshold is 6.1V, and the overvoltage protection voltage can also be set via the FB feedback resistor. In addition, the IC integrates fault protection functions including overcurrent protection and over-temperature protection. The LY5906 can be turned off and on via the enable pin, allowing users to control the operating state of the device. The device is available in a compact SOT23-6 package.
Applications
- Bluetooth earphone charging case
- Wearable devices
- E-cigarettes
- Power banks
Key features
- Input voltage range: 3.5V to 30V
- Integrated MOSFET: RON = 0.13Ω
- Overvoltage protection response time: < 200ns
- Default 6.1V protection voltage or externally adjustable
- Integrated overcurrent protection: 2A
- Internal chip overtemperature protection
- Enable control via EN pin
- SOT23-6 compact package
