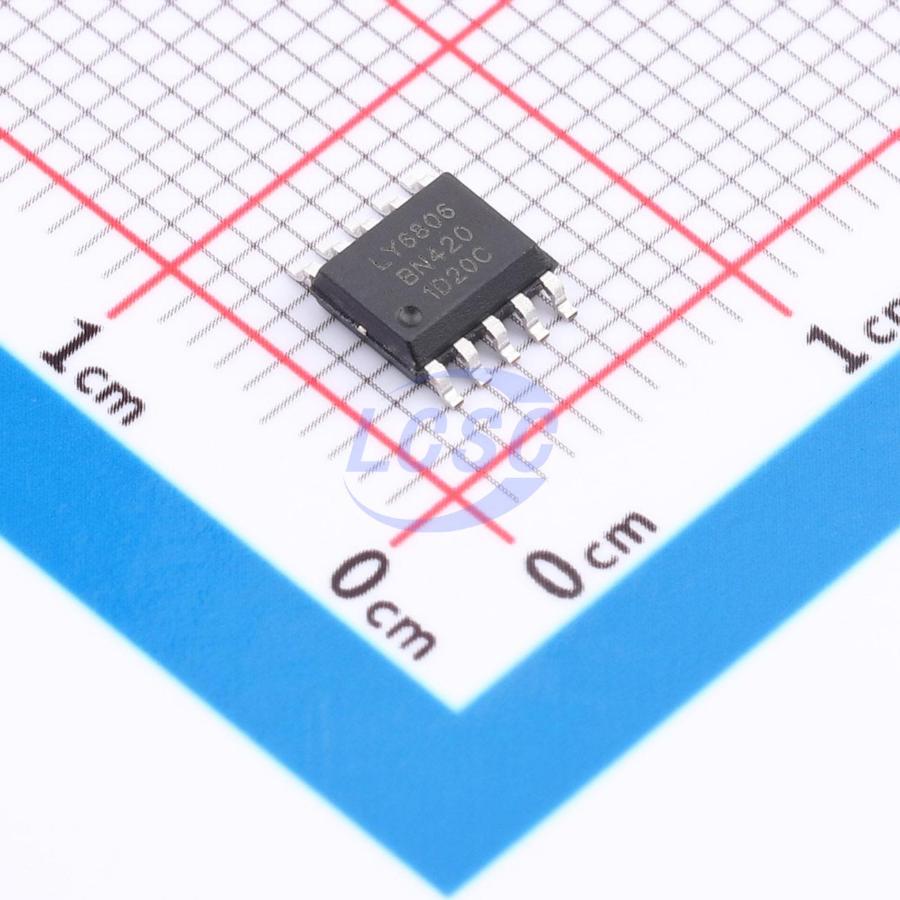

LY6806-BN420
Lithium Battery 2A ESSOP-10 Battery Management
- Manufacturer
- Lingyang Micro
- Manufacturer part #
- LY6806-BN420
- Store part #
- C50331614
- Package / case
- ESSOP-10
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,665 in stock
#C50331614
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.99 | ₹134.95 |
| 50+ | ₹21.08 | ₹1,054.00 |
| 150+ | ₹18.54 | ₹2,781.00 |
| 500+ | ₹15.37 | ₹7,685.00 |
| 2,500+ | ₹13.97 | ₹34,925.00 |
| 4,000+ | ₹13.12 | ₹52,480.00 |
5 × ₹26.99
₹134.95
excl. GST
₹159.24 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LY6806-BN420
₹134.95 for 5 + GST
Specifications
- Operating Temperature
- -25℃~+125℃
- Quiescent Current
- 90uA
- 0V Battery Charge
- Support
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.6V~5.5V
- The Chip Type
- Charging IC;Protection IC
- Charge Current - Max
- 2A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1 g
Overview
This chip integrates lithium battery charge management, boost converter, battery gauge, and protection functions. It employs synchronous switching charge technology with a charging current of 2A, and the synchronous boost converter supports a maximum output of 2.4A. Built-in power path management enables simultaneous charging and discharging. It supports 2-LED and 4-LED battery indication and flashlight functionality. The comprehensive feature integration minimizes external application components, significantly reducing solution size and BOM cost.
Applications
- Power banks
- Mobile phone backup power supplies
- Li-ion battery charging/discharging applications
Key features
- Synchronous switch charging, 2A charge current
- Synchronous switch discharging, max 2.4A discharge current
- NTC support
- Apple & Android DCP charging identification support
- Built-in power path management, simultaneous charging and discharging
- Up to 91% charging efficiency
- Up to 93% boost efficiency
- Input adaptive function, automatic charge current adjustment
- 2/4 LED battery indicator support
- Auto standby, auto load detection
- Built-in flashlight LED driver
- Boost output OCP, OVP, short-circuit, and OTP protection
- Package: ESOP8/ESSOP10
