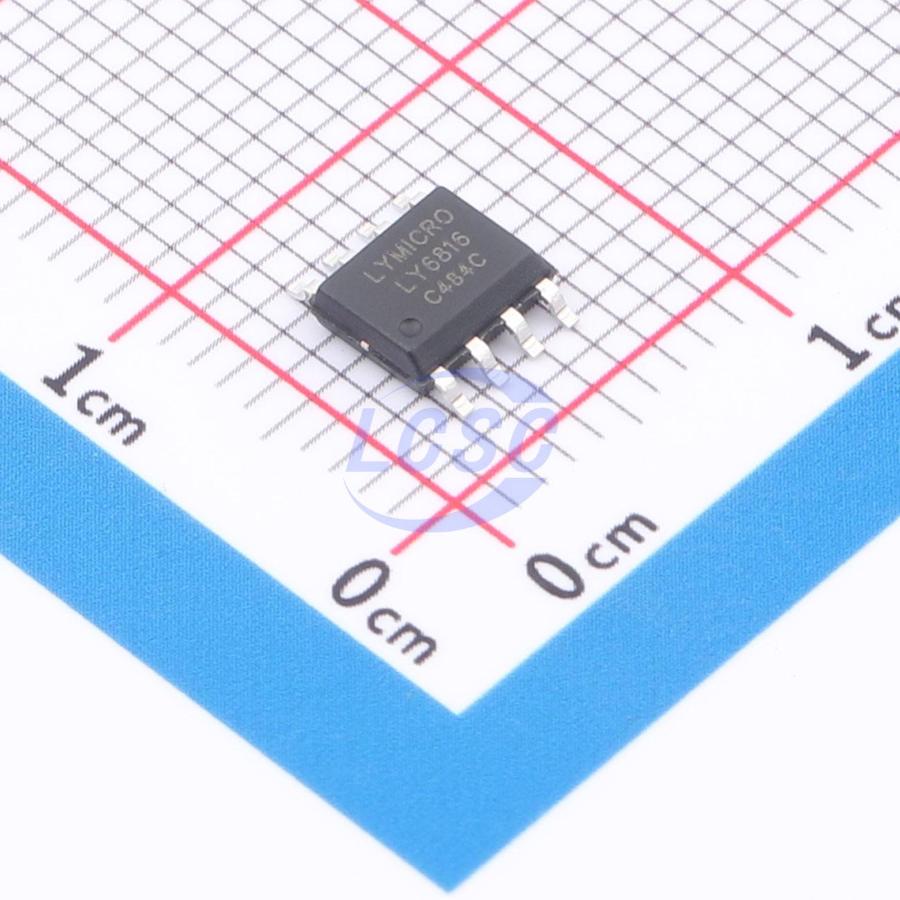

LY6816
Battery Charging IC Battery Protection IC Lithium Battery ESOP-8
Fully integrated control chip for lithium battery charging/discharging
- Manufacturer
- Lingyang Micro
- Manufacturer part #
- LY6816
- Store part #
- C46613918
- Package / case
- ESOP-8
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,770 in stock
#C46613918
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.94 | ₹64.70 |
| 50+ | ₹10.23 | ₹511.50 |
| 150+ | ₹8.88 | ₹1,332.00 |
| 500+ | ₹7.86 | ₹3,930.00 |
| 2,500+ | ₹7.04 | ₹17,600.00 |
| 4,000+ | ₹6.64 | ₹26,560.00 |
5 × ₹12.94
₹64.70
excl. GST
₹76.35 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LY6816
₹64.70 for 5 + GST
Specifications
- Operating Temperature
- -25℃~+125℃
- Quiescent Current
- 10uA
- 0V Battery Charge
- Support
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.6V~5.5V
- Features
- Trickle charging;Constant current charging;Constant voltage charging;Charge termination;Overvoltage protection;Short-Circuit Protection;Overcurrent Protection;Over-discharge protection;Soft-start
- The Chip Type
- Charging IC;Protection IC
- Charge Current - Max
- 1A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.183 g
Overview
A fully integrated power management IC for lithium battery charge and discharge management, integrating lithium battery charging management, synchronous boost converter, battery fuel gauge, and protection function modules. Supports automatic load detection and light-load auto-shutdown, with a standby current of 10uA after auto-shutdown. Charge current is 1A, with a maximum synchronous boost output current of 1A.
Applications
- Power bank
- Lithium battery charge/discharge applications
Key features
- Automatic load detection
- Light-load auto-shutdown current: 30mA
- Standby current: 10uA
- Charging current: 1A
- Maximum discharge current: 1A
- Output overvoltage, short-circuit, and overcurrent protection
- Intelligent temperature control
- Supports 1/2/4-LED battery level indication
- Boost efficiency up to 93%
- ESOP8 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LY6294ED#C46613905Lingyang Micro · ESOP-8 | Lingyang Micro | ESOP-8 | 4,350 | ₹10.69 · 4,350 in stock | View |
 | LY6806-AN420#C50331613Lingyang Micro · ESOP-8 | Lingyang Micro | ESOP-8 | 485 | ₹26.53 · 485 in stock | View |
