ST

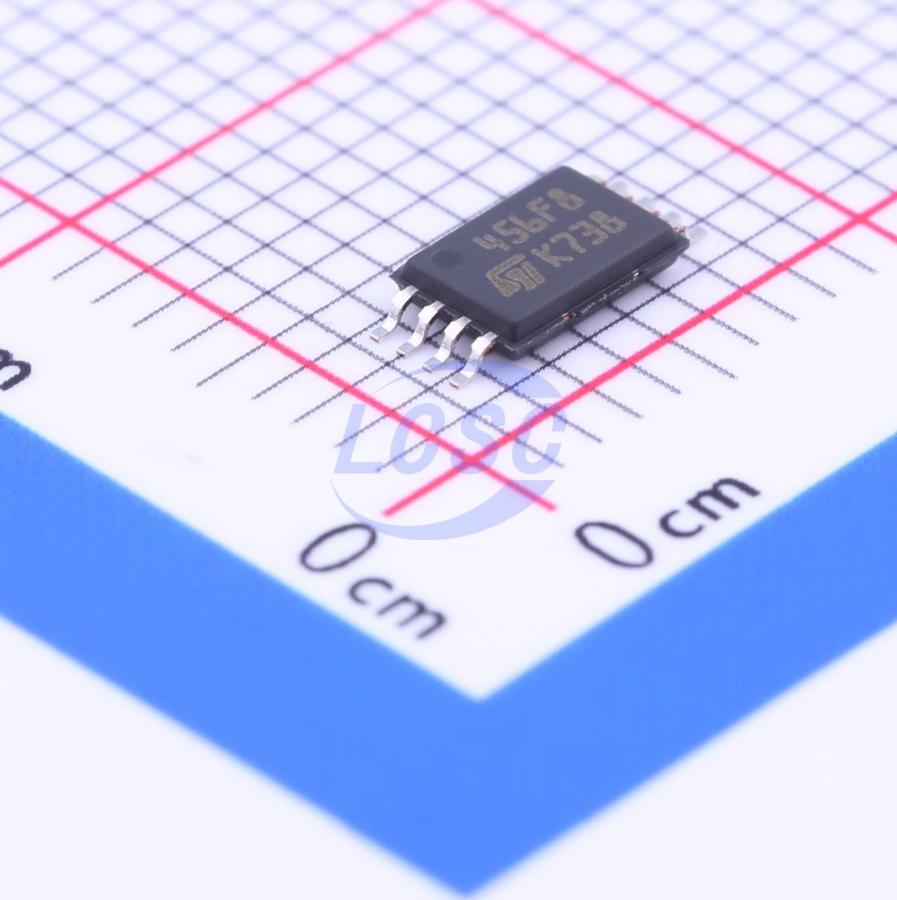

M24256-BFDW6TP
256Kbit 1MHz I2C TSSOP-8 Memory RoHS
TSSOP-8ROHS CompliantActive
256-Kbit serial I2C bus EEPROM
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,372 in stock
#C222109
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹75.11 | ₹75.11 |
| 10+ | ₹60.78 | ₹607.80 |
| 30+ | ₹54.71 | ₹1,641.30 |
| 100+ | ₹47.10 | ₹4,710.00 |
| 500+ | ₹43.84 | ₹21,920.00 |
| 1,000+ | ₹41.67 | ₹41,670.00 |
1 × ₹75.11
₹75.11
excl. GST
₹88.63 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
M24256-BFDW6TP
₹75.11 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Built-in error correction code (ECC) function
- Memory Size
- 256Kbit
- Voltage - Supply
- 1.7V~5.5V;2.5mA
- Clock Frequency
- 1MHz
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 4,000,000 Cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.185 g
Overview
The M24256 is a 256-Kbit I²C-compatible EEPROM (Electr
Key features
- Compatible with all I²C bus modes: 1 MHz, 400 kHz, 100 kHz
- Memory array: 256Kbit(32 Kbyte) of EEPROM
- Page size: 64 byte
- Additional Write lockable page (M24256-D order codes)
- Single supply voltage and high speed: 1 MHz clock from 1.7 V to 5.5 V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | M24256-DFDW6TP#C222357ST · TSSOP-8 | ST | TSSOP-8 | 1 | ₹66.94 · 1 in stock | View |
 | M24256-DRDW3TP/K#C2061629ST · TSSOP-8 | ST | TSSOP-8 | 50 | ₹142.50 · 50 in stock | View |
 | M24256E-FDW6TP#C20883521ST · TSSOP-8-169mil | ST | TSSOP-8-169mil | 14 | ₹49.41 · 14 in stock | View |
 | BR24G256FVT-3AGE2#C2061015ROHM · TSSOP-8 | ROHM | TSSOP-8 | 25 | ₹157.48 · 25 in stock | View |
 | 24FC256T-I/ST#C2061631MICROCHIP · TSSOP-8 | MICROCHIP | TSSOP-8 | 24 | ₹193.75 · 24 in stock | View |
