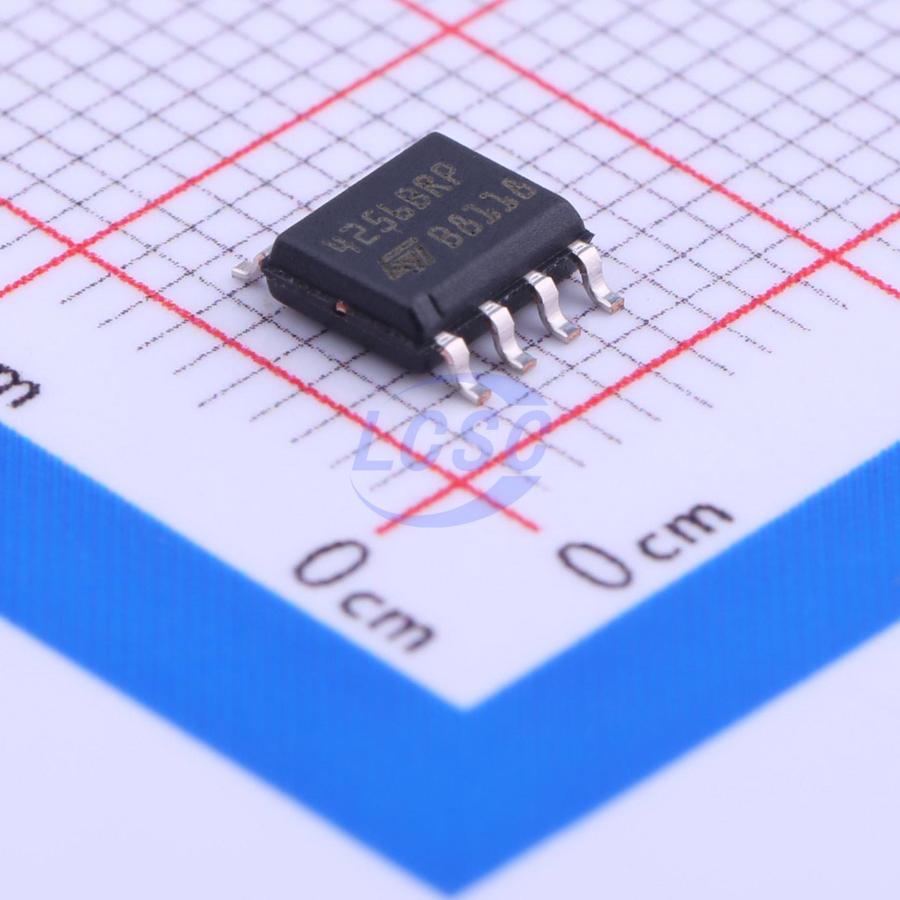

M24256-BRMN6TP
256Kbit 1MHz I2C SOIC-8 Memory RoHS
256-Kbit serial I2C bus EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
29,653 in stock
#C79984
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹66.79 | ₹66.79 |
| 10+ | ₹53.30 | ₹533.00 |
| 30+ | ₹47.43 | ₹1,422.90 |
| 100+ | ₹40.25 | ₹4,025.00 |
| 500+ | ₹36.99 | ₹18,495.00 |
| 1,000+ | ₹29.16 | ₹29,160.00 |
1 × ₹66.79
₹66.79
excl. GST
₹78.81 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
M24256-BRMN6TP
₹66.79 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Built-in error correction code (ECC) function
- Memory Size
- 256Kbit
- Voltage - Supply
- 1.8V~5.5V;2.5mA
- Clock Frequency
- 1MHz
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 4,000,000 Cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.235 g
Overview
The M24256 is a 256-Kbit |²C -compatible EEPROM (Electrically Erasable PROgrammable Memory) organized as 32 Kx8 bits. The M24256-BW can operate with a supply voltage from 2.5 V to 5.5 V; the M24256-BR and M24256-DR can operate with a supply voltage from 1.8 V to 5.5 V; and the M24256-BF and M24256-DF can operate with a supply voltage from 1.7 V to 5.5 V. All these devices operate with a clock frequency of 1 MHz (or less), over an ambient temperature range of -40 ℃ / +85 ℃. The M24256-D offers an additional page, named the Identification Page (64 bytes). The Identification Page can be used to store sensitive application parameters which can be (later) permanently locked in Read-only mode.
Key features
- Compatible with all |²C bus modes: 1 MHz, 400 kHz, 100 kHz
- Memory array: 256 Kbit (32 Kbytes) of EEPROM Page size: 64 bytes Additional Write lockable page (M24256-D order codes)
- Single supply voltage and high speed: -1 MHz clock from 1.7 V to 5.5 V
- Unsawn wafer
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | M24256-BRMN6P#C2970040ST · SOIC-8 | ST | SOIC-8 | 2 | ₹65.82 · 2 in stock | View |
| M24256-DFMN6TP#C2970055ST · SO-8-150mil | ST | SO-8-150mil | 8 | ₹126.04 · 8 in stock | View | |
 | M24256E-FMN6TP#C5221744ST · SO-8 | ST | SO-8 | 1,17,205 | ₹32.16 · 1,17,205 in stock | View |
 | M24256-DRMN8TP/K#C2062050ST · SO-8 | ST | SO-8 | 16 | ₹104.31 · 16 in stock | View |
 | 24FC256T-I/SN#C144294MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 263 | ₹204.92 · 263 in stock | View |
