ST

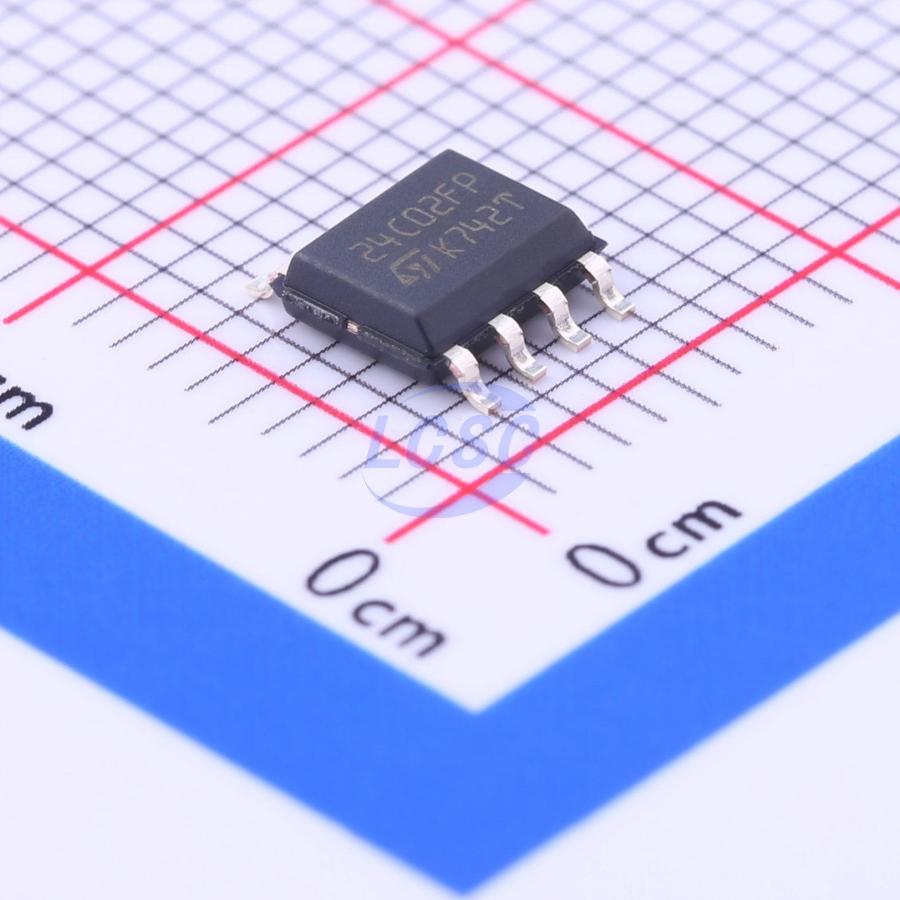

M24C02-FMN6TP
2Kbit 400kHz I2C SOIC-8 Memory RoHS
SOIC-8ROHS3 CompliantActive
1-Kbit and 2-Kbit serial I²C bus EEPROMs
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
19,150 in stock
#C114502
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.18 | ₹105.90 |
| 50+ | ₹16.56 | ₹828.00 |
| 150+ | ₹14.25 | ₹2,137.50 |
| 500+ | ₹12.53 | ₹6,265.00 |
| 2,500+ | ₹11.14 | ₹27,850.00 |
| 5,000+ | ₹10.44 | ₹52,200.00 |
5 × ₹21.18
₹105.90
excl. GST
₹124.96 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
M24C02-FMN6TP
₹105.90 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR)
- Memory Size
- 2Kbit
- Voltage - Supply
- 1.7V~5.5V;0.8mA
- Clock Frequency
- 400kHz
- Access Time
- 900ns;3450ns
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 4,000,000 Cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.235 g
Overview
The M24C01(C02) is a 1(2)-Kbit |²C-compatible EEPROM (Electrically Erasable PROgrammable Memory) organized as 128 (256)x8 bits. The M24C01/02-W can be accessed with a supply voltage from 2.5 V to 5.5 V; the M24C01/02-R can be accessed with a supply voltage from 1.8 V to 5.5 V, and the M24C02-F can be accessed either with a su
Key features
- Compatible with |²C bus modes: 400 kHz, 100 kHz
- Memory array: 1 Kbit (128 bytes) of EEPROM, 2 Kbit (256 bytes) of EEPROM
- Page size: 16 byte
- Single supply voltage: M24C01/02-W: 2.5V to 5.5V; M24C01/02-R: 1.8 V to 5.5V; M24C02-F: 1.7 V to 5.5 V (full temperature range) and 1.6 V to 1.7 V (limited temperature range)
- Write: Byte Write within 5 ms, Page Write within 5 ms
- Operating temperature range: from -40 ℃ up to +85 ℃
- Random and sequential Read modes
- Write protect of the whole memory array
- Enhanced ESD/Latch-Up protection
- More than 4 million Write cycles
- More than 200-years data retention
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | M24C02-RMN6TP#C83836ST · SOIC-8 | ST | SOIC-8 | 1,79,220 | ₹16.95 · 1,79,220 in stock | View |
 | M24C02-RMN6P#C1349625ST · SOIC-8 | ST | SOIC-8 | 2,930 | ₹43.51 · 2,930 in stock | View |
 | 24AA024-I/SN#C615105MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 1,080 | ₹137.55 · 1,080 in stock | View |
| 24AA02E48-I/SN#C81475MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 5 | ₹131.89 · 5 in stock | View | |
| 24AA02E64-I/SN#C1349269MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 8 | ₹82.82 · 8 in stock | View | |
