ST

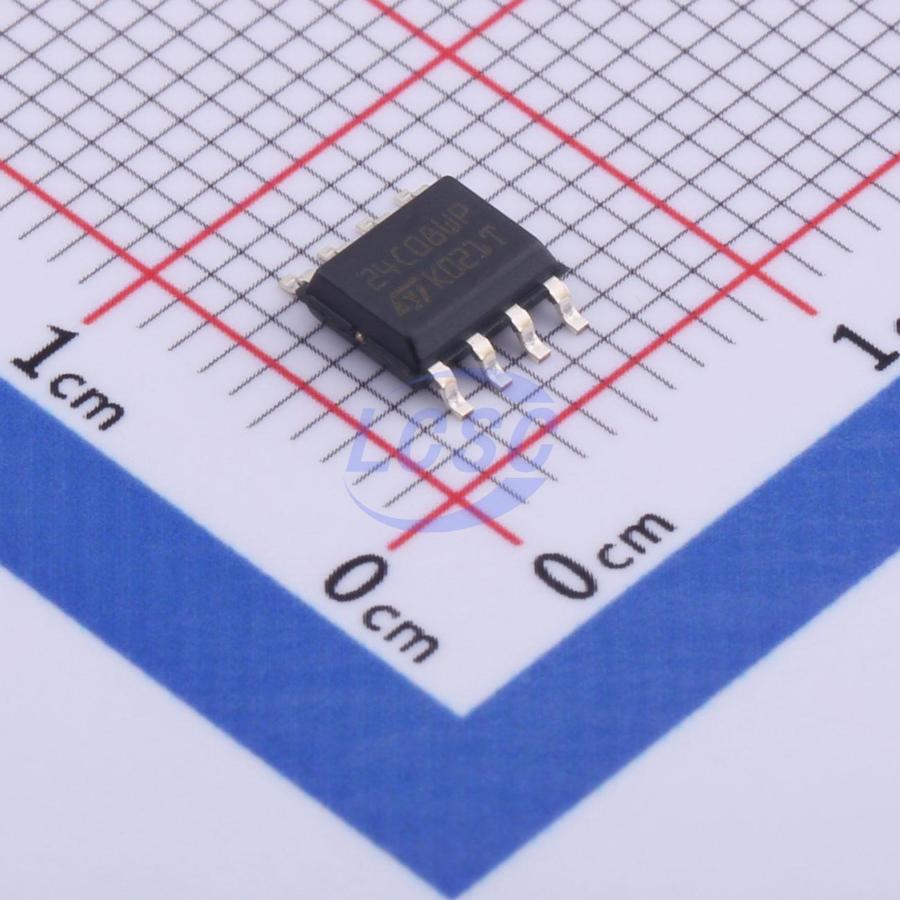

M24C08-WMN6P
8Kbit 400kHz I2C SO-8 Memory RoHS
SO-8ROHS CompliantActive
8-Kbit serial I²C bus EEPROM
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,210 in stock
#C283441
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹41.57 | ₹207.85 |
| 50+ | ₹33.72 | ₹1,686.00 |
| 150+ | ₹30.35 | ₹4,552.50 |
| 500+ | ₹26.16 | ₹13,080.00 |
| 2,500+ | ₹24.29 | ₹60,725.00 |
| 5,000+ | ₹23.17 | ₹1,15,850.00 |
5 × ₹41.57
₹207.85
excl. GST
₹245.26 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 100 per reel
M24C08-WMN6P
₹207.85 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR)
- Memory Size
- 8Kbit
- Voltage - Supply
- 2.5V~5.5V;1mA
- Clock Frequency
- 400kHz
- Access Time
- 900ns
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 3uA
- Write Cycle Endurance
- 4,000,000 Cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 100 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.74 g
Overview
The M24C08 is an 8-Kbit I²C-compatible EEPROM organized as 1K×8 bits. The M24C08-W operates from 2.5V to 5.5V, the M24C08-R operates from 1.8V to 5.5V, and the M24C08-F operates from 1.7V to 5.5V over the full temperature range, and from 1.6V to 1.7V over a limited temperature range.
Key features
- Compatible with I²C bus modes:
- 400 kHz
- 100 kHz
- Memory array: 8 Kbit (1 Kbyte) of EEPROM
- Page size: 16 byte
- Single supply voltage:
- M24C08-W: 2.5 V to 5.5 V
- M24C08-R: 1.8 V to 5.5 V
- M24C08-F: 1.7 V to 5.5 V (full temperature range) and 1.6 V to 1.7 V (limited temperature range)
- Write:
- Byte Write within 5 ms
- Page Write within 5 ms
- Operating temperature range:
- from -40 °C up to +85 °C
- Random and sequential Read modes
- Write protect of the whole memory array
- Enhanced ESD/Latch-Up protection
- More than 4 million Write cycles
- More than 200-years data retention
- RoHS compliant and halogen-free (ECOPACK2)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | M24C08-WMN6TP#C141771ST · SOIC-8 | ST | SOIC-8 | 18,195 | ₹29.74 · 18,195 in stock | View |
 | M24C08-RMN6TP#C141777ST · SOIC-8 | ST | SOIC-8 | 37,395 | ₹21.37 · 37,395 in stock | View |
 | M24C08-FMN6TP#C322596ST · SOIC-8 | ST | SOIC-8 | 1,450 | ₹40.80 · 1,450 in stock | View |
 | 24LC08B-I/SN#C461558MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 103 | ₹58.46 · 103 in stock | View |
 | 24LC08BT/SN#C615695MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 10 | ₹85.55 · 10 in stock | View |
