ST

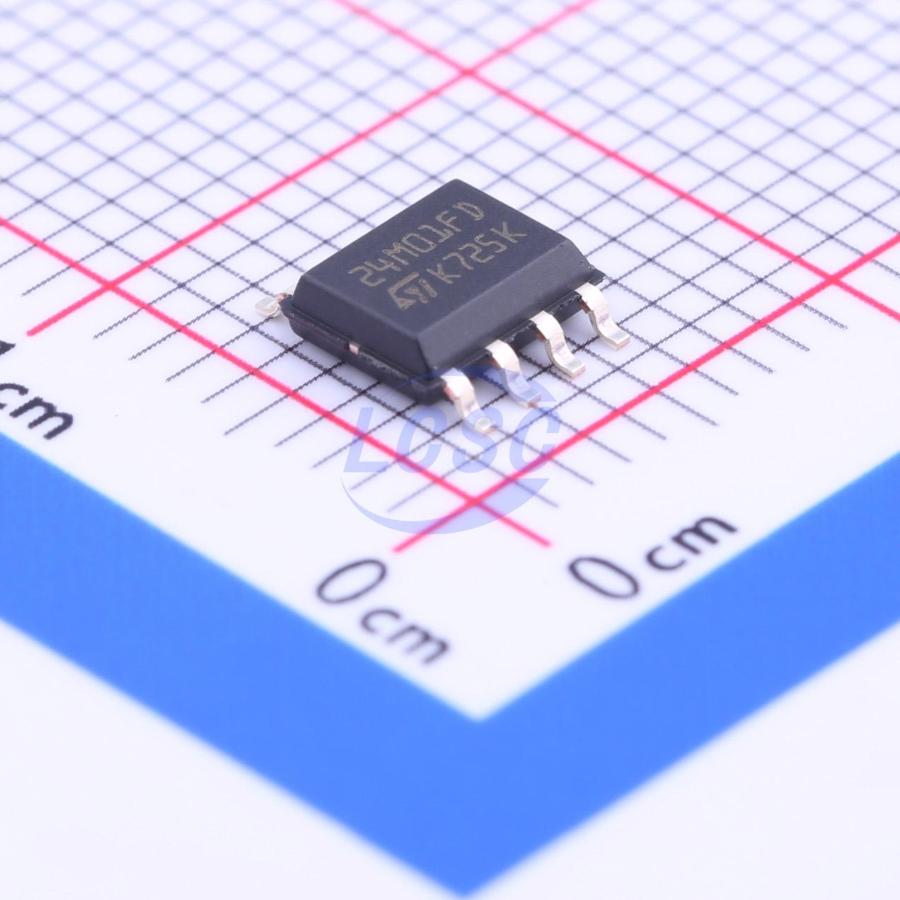

M24M01-DFMN6TP
1Mbit 1MHz I2C SO-8 Memory RoHS
SO-8ROHS3 CompliantActive
1-Mbit serial I²C bus EEPROM
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,046 in stock
#C222230
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹132.99 | ₹132.99 |
| 10+ | ₹105.83 | ₹1,058.30 |
| 30+ | ₹92.36 | ₹2,770.80 |
| 100+ | ₹78.89 | ₹7,889.00 |
| 500+ | ₹70.85 | ₹35,425.00 |
| 1,000+ | ₹66.72 | ₹66,720.00 |
1 × ₹132.99
₹132.99
excl. GST
₹156.93 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
M24M01-DFMN6TP
₹132.99 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Built-in error correction code (ECC) function
- Memory Size
- 1Mbit
- Voltage - Supply
- 1.7V~5.5V;2mA
- Clock Frequency
- 1MHz
- Access Time
- 900ns
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 5uA
- Write Cycle Endurance
- 4,000,000 Cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.194 g
Overview
The M24M01 is a 1 Mbit |²C -compatible EEPROM (Electrically Erasable PROgrammable Memory) organized as 128 Kx8 bits. The M24M01-R can operate with a supply voltage from 1.8 V to 5.5 V, and the M24M01-DF can operate with a supply voltage from 1.7 V to 5.5 V, over an ambien
Key features
- Compatible with all |²C bus modes: 1 MHz, 400 kHz, 100 kHz
- Memory array: 1 Mbit (128 Kbyte) of EEPROM
- Page size: 256 byte
- Additional Write lockable page (M24M01-D order codes)
- Single supply voltage and high speed: 1 MHz clock from 1.7 V to 5.5 V
- Write: Byte Write within 5 ms, Page Write within 5 ms
- Operating temperature range: from -40 ℃ up to +85 ℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | M24M01-RMN6TP#C79990ST · SOIC-8 | ST | SOIC-8 | 29,362 | ₹101.80 · 29,362 in stock | View |
 | ZD24C1MA-SSGMB#C2972568Zetta · SOP-8-150mil | Zetta | SOP-8-150mil | 4,910 | ₹117.30 · 4,910 in stock | View |
 | BR24G1MFJ-5AE2#C6516030ROHM · SOIC-8 | ROHM | SOIC-8 | 1,713 | ₹86.68 · 1,713 in stock | View |
 | 24FC1025T-I/SN#C219471MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 470 | ₹348.53 · 470 in stock | View |
 | 24FC1025-I/SN#C220753MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 95 | ₹392.32 · 95 in stock | View |
