ST

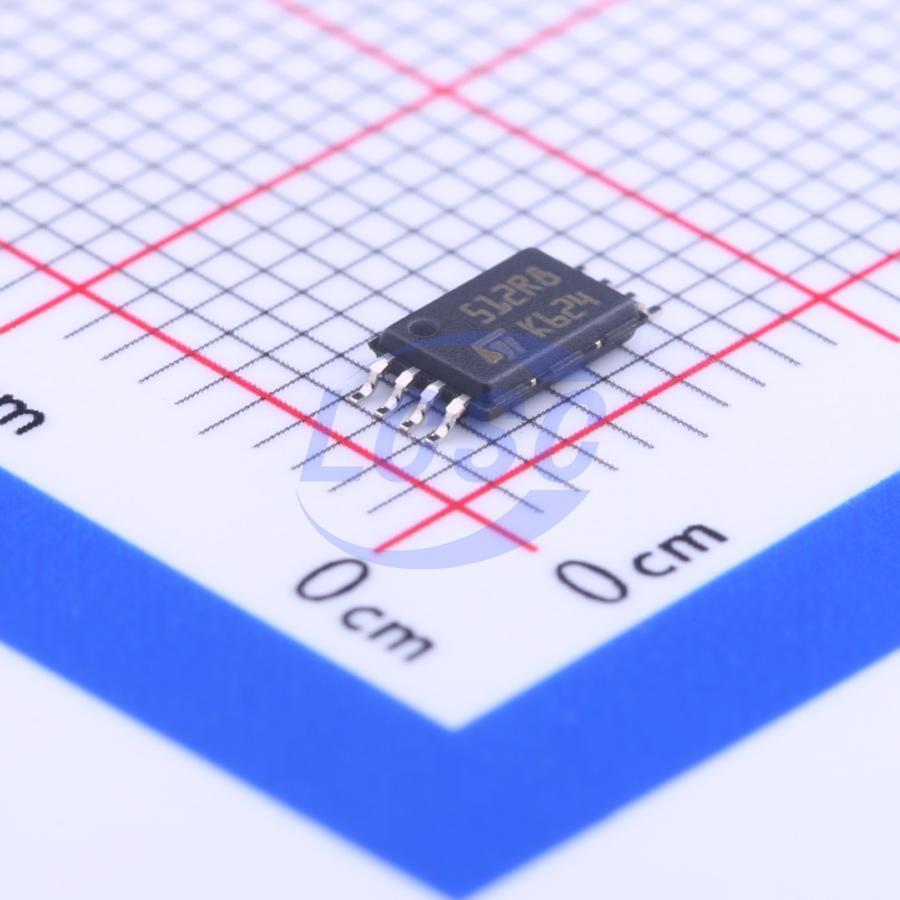

M95512-RDW6TP
512Kbit 1.8V~5.5V 16MHz SPI TSSOP-8 Memory
TSSOP-8RoHSActive
512-Kbit serial SPI bus EEPROM
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,002 in stock
#C122886
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹121.37 | ₹121.37 |
| 10+ | ₹102.45 | ₹1,024.50 |
| 30+ | ₹93.10 | ₹2,793.00 |
| 100+ | ₹83.75 | ₹8,375.00 |
| 500+ | ₹78.31 | ₹39,155.00 |
| 1,000+ | ₹75.27 | ₹75,270.00 |
1 × ₹121.37
₹121.37
excl. GST
₹143.22 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
M95512-RDW6TP
₹121.37 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Built-in error correction code (ECC) function;Built-in write enable latch (WEL);Page write protection function;Software write protection function
- Memory Size
- 512Kbit
- Voltage - Supply
- 1.8V~5.5V
- Clock Frequency
- 16MHz
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 5ms
- Write Cycle Endurance
- 4,000,000 Cycles
- Interface
- SPI
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.163 g
Overview
The M95512 devices are Electrically Erasable PROgrammable Memories (EEPROMs) organized as 65536x8 bits, accessed through the SPl bus. The M95512-W can operate with a supply voltage from 2.5 V to 5.5 V, the M95512-R can operate with a supply voltage from 1.8 V to 5.5 V and the M95512-DF can operate with a supply voltage from 1.7 V to 5.5 V, over an ambient temperature range of -40 ℃ / +85 ℃.
Key features
- Compatible with the Serial Peripheral Interface (SPI) bus
- Memory array:
- 512 Kb (64 Kbytes) of EEPROM
- Page size: 128 bytes
- Write:
- Byte Write within 5 ms
- Page Write within 5 ms
- Additional Write lockable page (Identification page)
- Write Protect: quarter, half or whole memory array
- High-speed clock: 16 MHz
- Single supply voltage:
- 2.5 V to 5.5 V for M95512-W
- 1.8 V to 5.5 V for M95512-R
- 1.7 V to 5.5 V for M95512-DF
- Operating temperature range: from -40 ℃ up to +85 ℃
- Enhanced ESD protection
- More than 4 million Write cycles
- More than 200-year data retention
- Packages:
- RoHS compliant and halogen-free (ECOPACK)
