ST

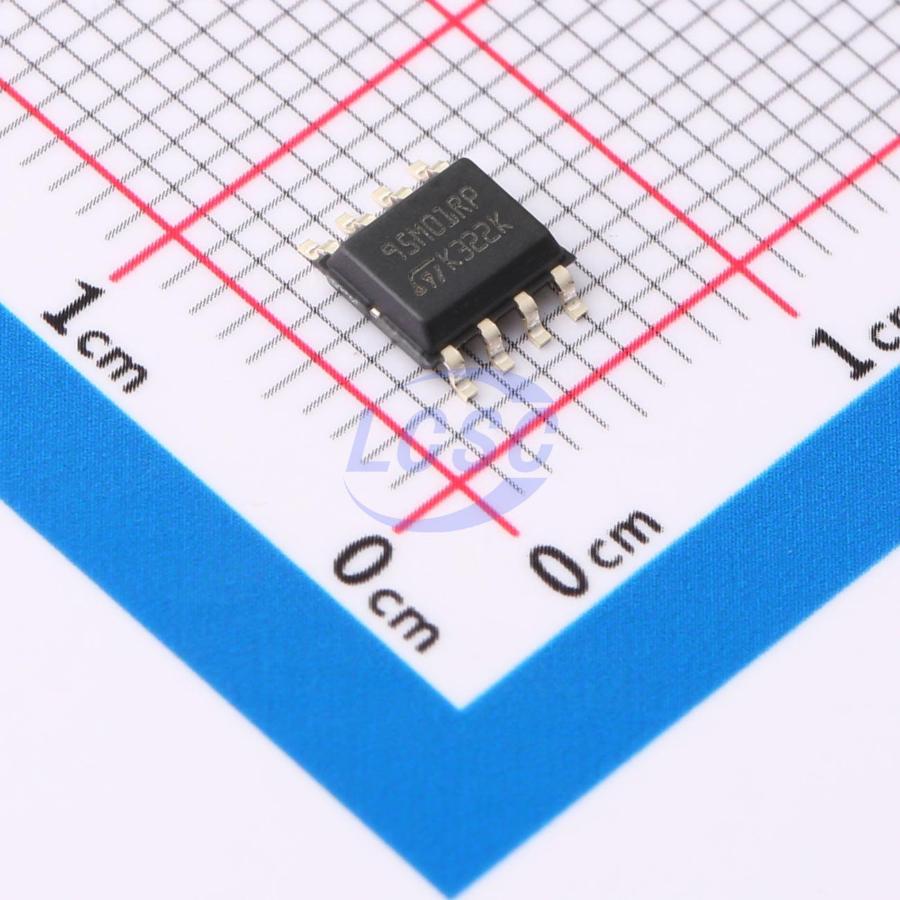

M95M01-RMN6P
1Mbit 1.8V~5.5V 16MHz SPI SO-8 Memory
SO-8RoHSActive
1-Mbit serial SPI bus EEPROM
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
35 in stock
#C1349274
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹226.99 | ₹226.99 |
| 10+ | ₹181.54 | ₹1,815.40 |
| 30+ | ₹156.54 | ₹4,696.20 |
| 100+ | ₹128.28 | ₹12,828.00 |
| 500+ | ₹115.67 | ₹57,835.00 |
| 1,000+ | ₹110.02 | ₹1,10,020.00 |
1 × ₹226.99
₹226.99
excl. GST
₹267.85 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 100 per tube
M95M01-RMN6P
₹226.99 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Built-in write enable latch (WEL);Built-in error correction code (ECC) function
- Memory Size
- 1Mbit
- Voltage - Supply
- 1.8V~5.5V
- Clock Frequency
- 16MHz
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 5ms
- Write Cycle Endurance
- 4,000,000 Cycles
- Interface
- SPI
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 100 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.65 g
Overview
The M95M01 series devices are Electrically Erasable Programmable Read-Only Memory (EEPROM) organized as 131072×8 bits, accessed via the SPI bus.
Key features
- Compatible with the Serial Peripheral Interface (SPI) bus
- Memory array: 1 Mbit (128 Kbytes) of EEPROM
- Page size: 256 bytes
- Write Byte Write within 5 ms
- Page Write within 5 ms
- Additional Write lockable page (Identification Page)
- Write Protect: quarter, half or whole memory array
- High-speed clock: 16 MHz
- Single supply voltage: 1.8 V to 5.5 V for M95M01-R, 1.7 V to 5.5 V for M95M01-DF
- Operating temperature range: from -40 °C up to +85 °C
- Enhanced ESD protection
- More than 4 million Write cycles
- More than 200-year data retention
- Packages: SO8 (ECOPACK2), TSSOP8 (ECOPACK2), WLCSP (ECOPACK2), Unsawn wafer (each die is tested)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | M95M01-RMN6TP#C111166ST · SOIC-8 | ST | SOIC-8 | 3,005 | ₹286.77 · 3,005 in stock | View |
 | M95M01-DFMN6TP#C2061867ST · SO-8 | ST | SO-8 | 16 | ₹224.00 · 16 in stock | View |
 | AT25M01-SSHM-T#C117499MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 2,864 | ₹347.72 · 2,864 in stock | View |
 | AT25M01-SSHM-B#C220833MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | On request | Price on request | Quote |
 | BR25H1MFJ-5ACE2#C6753246ROHM · SOIC-8 | ROHM | SOIC-8 | On request | ₹281.15 · 0 in stock | View |
