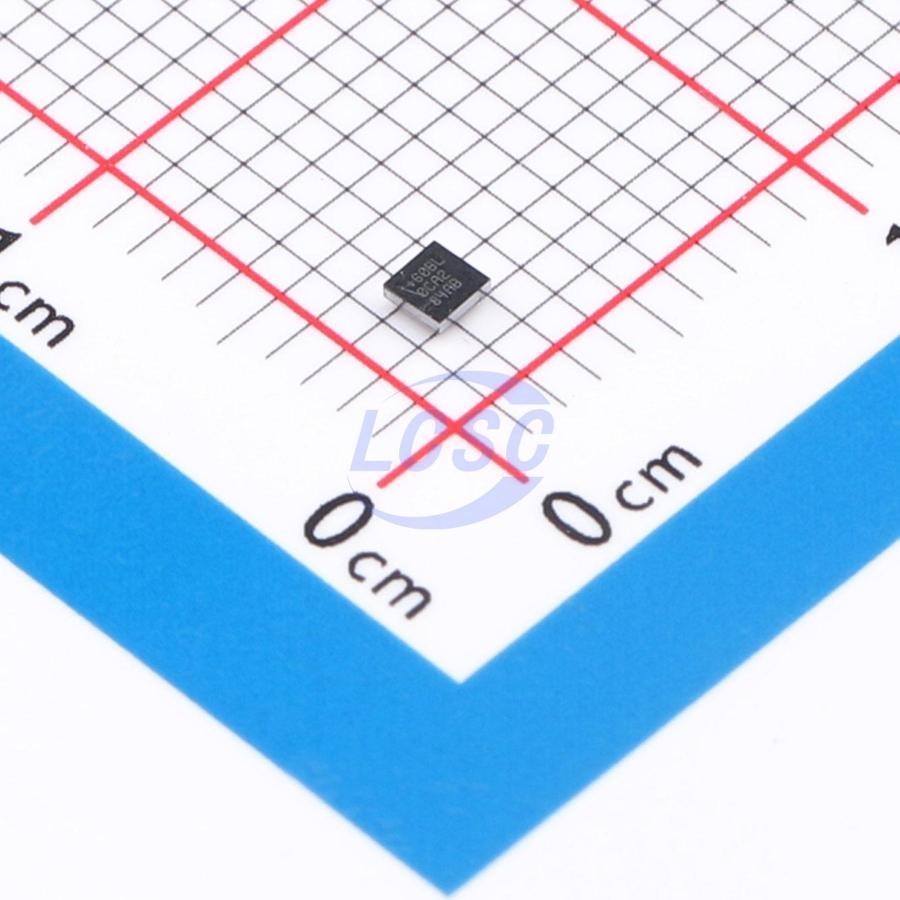

MAX32660GWEBL+T

In the DARWIN family, the MAX32660 is an ultra-low-power, cost-effective, highly-integrated 32-bit microcontroller designed for battery-powered devices and wireless sensors. It combines a flexible and versatile power management unit with the powerful Arm Cortex-M4 processor with floating point unit (FPU) in the industry’s smallest form factor: 1.6mm x 1.6mm, 16-bump WLP or 4mm×4mm, 20-pin TQFN-EP, or 3mm x 3mm, 24-pin TQFN-EP. The MAX32660 enables designs with complex sensor processing without compromising battery life. It also offers legacy designs an easy and cost optimal upgrade path from 8- or 16-bit microcontrollers. The device supports SPI, UART, and I2C communication while also integrating up to 256KB of flash memory and 96KB of RAM to accommodate application and sensor code. An optional bootloader through I2C, UART, or SPI is available.

Applications

• Sports Watches
• Fitness Monitors
• Wearable Medical Patches
• Portable Medical Devices
• Industrial Sensors
• IoT
• Optical Modules: QSFP-DD, QSFP, 400G

Key features

• Internal Oscillator Operates up to 96MHz
• 256KB Flash Memory 96KB SRAM, Optionally Preserved in Lowest Power Backup Mode
• 16KB Instruction Cache
• Memory Protection Unit (MPU)
• Low 1.1V VCORE Supply Voltage
• 3.6V GPIO Operating Range
• Internal LDO Provides Operation from Single Supply
• Wide Operating Temperature: -40℃ to +105℃
• 85μA/MHz Active Executing from Flash
• 2μA Full Memory Retention Power in Backup Mode at VDD = 1.8V
• 450nA Ultra-Low Power RTC at VDD = 1.8V
• Internal 80kHz Ring Oscillator
• Up to 14 General-Purpose I/O Pins
• Up to Two SPI
• I2S
• Up to Two UARTs
• Up to Two I2C, 3.4Mbps High Speed
• Four-Channel Standard DMA Controller
• Three 32-Bit Timers
• Watchdog Timer
• CMOS-Level 32.768kHz RTC Output
