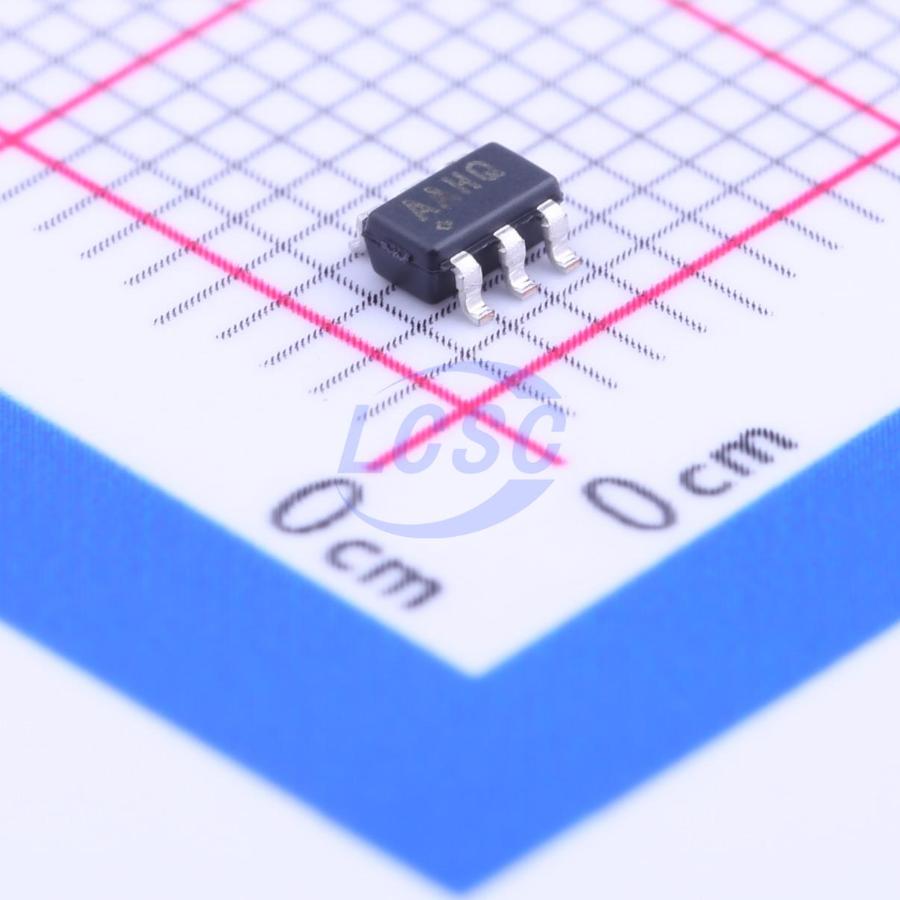

MAX4644EUT+T

The MAX4644 is a single-pole/double-throw (SPDT) switch that operates from a single supply ranging from +1.8V to +5.5V. It provides low 4Ω on-resistance (RON) as well as 1Ω RON flatness over the entire analog-signal range. The MAX4644 offers fast switching times of less than 20ns while ensuring break-before-make operation. It typically consumes only 0.01μW of quiescent power, making it suitable for use in low-power, portable applications. The MAX4644’s features include low leakage currents over the entire temperature range, TTL/CMOS-compatible digital logic, and excellent AC characteristics. It is packaged in either a small 8-pin μMAX or a tiny 6-pin SOT23.

Applications

• Battery-Operated Equipment
• Audio and Video Signal Routing
• Low-Voltage Data-Acquisition Systems
• Sample-and-Hold Circuits
• Communications Circuits

Key features

• +1.8V to +5.5V Single-Supply Operation
• Rail-to-Rail Analog-Signal Range
• Guaranteed RON 4Ω max (+5V Supply), 8Ω max (+3V Supply)
• +1.8V Operation RON 30Ω (typ) Over Temperature, tON 18ns (typ), tOFF 12ns typ
• Guaranteed RON Flatness: 0.75Ω (typ) (+5V Supply)
• Guaranteed RON Match Between Channels: 0.1Ω typ (+5V Supply)
• Low Leakage (<0.35nA) Over Entire Temperature Range
• Excellent AC Characteristics: Low Crosstalk: -82dB at 1MHz, High Off-Isolation: -80dB at 1MHz, 0.018% Total Harmonic Distortion
• Low Power Consumption: <0.01μW
• Fast switching times of less than 20ns with break-before-make operation
• Low leakage currents over the entire temperature range
• TTL/CMOS-compatible digital logic
• Packaged in either a small 8-pin μMAX or a tiny 6-pin SOT23
