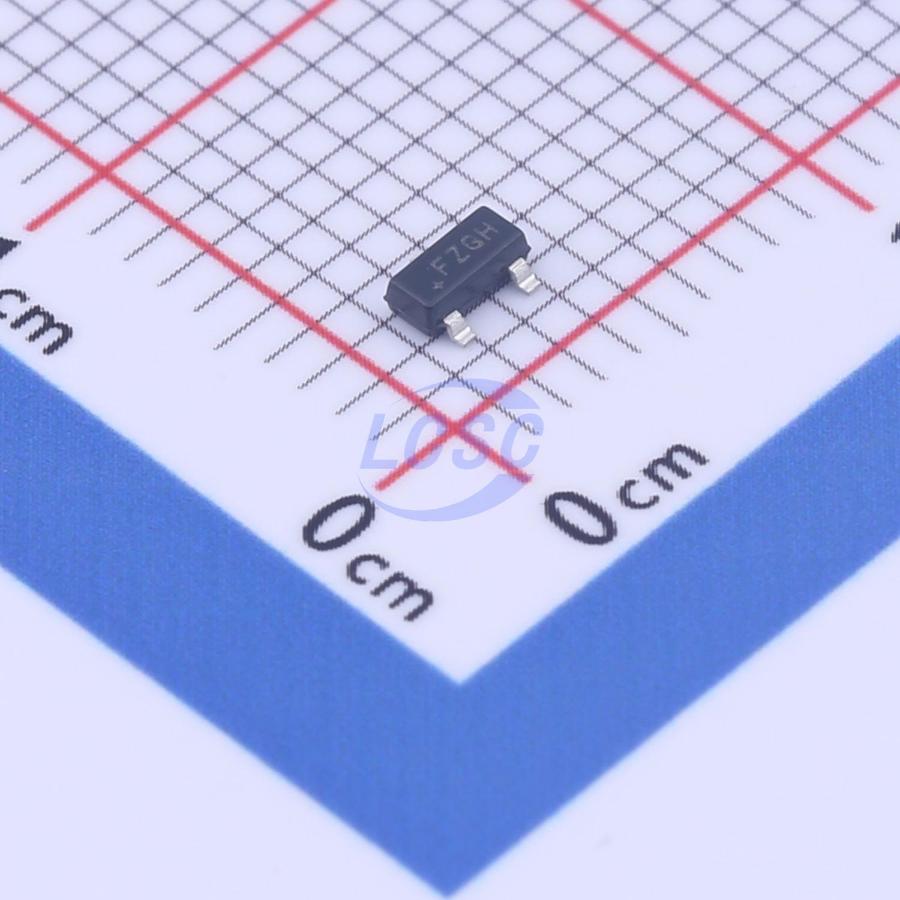

MAX6006AEUR+T

The MAX6006 - MAX6009 ultra - low - power shunt references are ideal for space - critical and low - power applications. They are offered in 3 - pin SOT23 packages, and the minimum operating current is guaranteed to be <1μA. The devices feature low temperature coefficients of <30ppm/°C and initial accuracy of better than 0.2%. Available in +1.25V, +2.048V, +2.5V, and 3V output voltages, the MAX6006–MAX6009 have references of +1.25V, +2.048V, +2.5V, and +3.0V, respectively. The devices can be used as lower - power, higher - precision upgrades to the ICL8069, LM385, LT1004, and LM4040 references. The MAX6006–MAX6009 are available in two grades: A and B. The A grade features a temperature coefficient of 30ppm/°C over the extended temperature range of - 40°C to +85°C, with an initial accuracy of 0.2%. Grade B features a temperature coefficient of 75ppm/°C with an initial accuracy of 0.5%. MAX6006 in +1.25V and MAX6008 in +2.5V are offered in 8 - pin SO packages, as plug - in upgrades for LT1004 and LM285. The MAX6006–MAX6009 are precision, two - terminal, series bandgap voltage references. On - chip thin - film resistors are laser trimmed to provide 0.2% output voltage accuracies. Voltages of +1.25V, +2.048V, +2.5V, and +3.0V are available in the space - saving SOT23 package (2.1mm x 2.7mm).

Applications

• Battery - Powered Equipment
• Portable Meters
• Precision Regulators
• A/D and D/A Converters

Key features

• Ultra - Low Operating Current: Guaranteed <1μA
• Small 3 - Pin SOT23 Package Initial Voltage Accuracy: 0.2%
• Temperature Coefficient: 30ppm/°C max
• Temperature Range: - 40°C to +85°C
• Factory - Trimmed Output Voltages: +1.25V, +2.048V, +2.5V, +3.0V
• Wide Operating Range: 1μA to 2mA
• AEC - Q100 (MAX6008AEUR/V+ Only)
