MAXIMDatasheet (PDF)

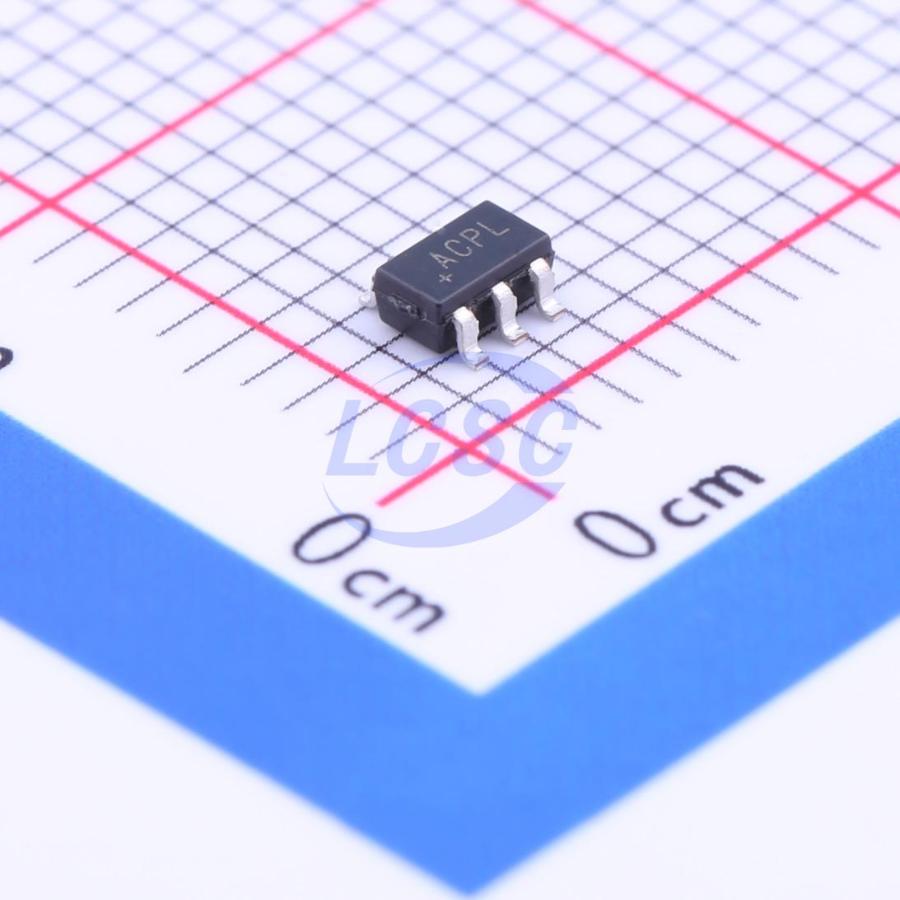

MAX6070AAUT25+T
2.5V ±0.04% 2.8V~5.5V 10mA Fixed SOT-23-6 Voltage Reference RoHS
SOT-23-6ROHS3 CompliantActive
Low-noise high-precision voltage reference
- Manufacturer
- MAXIM
- Manufacturer part #
- MAX6070AAUT25+T
- Store part #
- C143530
- Package / case
- SOT-23-6
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
886 in stock
#C143530
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹402.46 | ₹402.46 |
| 10+ | ₹346.80 | ₹3,468.00 |
| 30+ | ₹312.02 | ₹9,360.60 |
| 100+ | ₹276.36 | ₹27,636.00 |
| 500+ | ₹260.26 | ₹1,30,130.00 |
| 1,000+ | ₹253.31 | ₹2,53,310.00 |
1 × ₹402.46
₹402.46
excl. GST
₹474.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX6070AAUT25+T
₹402.46 for 1 + GST
Specifications
- Quiescent Current
- 300uA
- Output Voltage
- 2.5V
- Tolerance
- ±0.04%
- Voltage - Supply
- 2.8V~5.5V
- Reference Type
- Series
- Noise - 1/10Hz to 10Hz
- 4.8uVp-p
- Output Current
- 10mA
- Operating Temperature
- -40℃~+125℃
- Features
- Enable/disable
- Noise - 10Hz to 10kHz
- 3uVrms
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.043 g
Overview
The MAX6070/MAX6071 offer a very low noise and low-drift voltage reference in a small 6-pin SOT23 package. These devices provide a 1/f noise voltage of only 4.8μVₚ₋ₚ at an output voltage of 2.5Vᵢ, with a temperature drift of 6ppm/°C (max). The devices consume 150μA of supply current and can sink and source up to 10mA of load current. The low-drift and low-noise specifications enable enhanced system accuracy, making these devices ideal for high-precision industrial applications. The MAX6070 offers a noise filter option for wideband applications. The devices are available in a 6-pin SOT23 package and are specified over the extended industrial temperature range of -40°C to +125°C. The 2.5V options are also available in a 6-bump 0.78mm x 1.41mm wafer-level package (WLP).
Applications
- High-Accuracy Industrial and Process Control
- Precision Instrumentation
- High-Resolution ADCs and DACs
- Precision Current Sources
Key features
- 6-Pin SOT23 Package Reduces System Board Space
- Stable Performance Over Temperature and Time Improves System Accuracy
- High ±0.04% Initial Accuracy
- Low 1.5ppm/°C (typ), 6ppm/°C (max) Temperature Drift
- Low 4.8μVₚ₋ₚ Noise (0.1Hz to 10Hz) at 2.5V
- Low 200mV Dropout Voltage
- High 85dB Ripple Rejection
- Low 150μA Supply Current Reduces Power Consumption
- Filter Option Lowers High-Frequency Noise
- Output Options: 1.25V, 1.8V, 2.048V, 2.5V, 3.0V, 3.3V, 4.096V, and 5.0V Cover Common Voltage Levels for a Wide Variety of Applications
- 0.78mm x 1.41mm WLP with 0.35mm Bump Spacing
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MAX6071AAUT25+T#C2156891MAXIM · SOT-23-6 | MAXIM | SOT-23-6 | 94 | ₹576.51 · 94 in stock | View |
