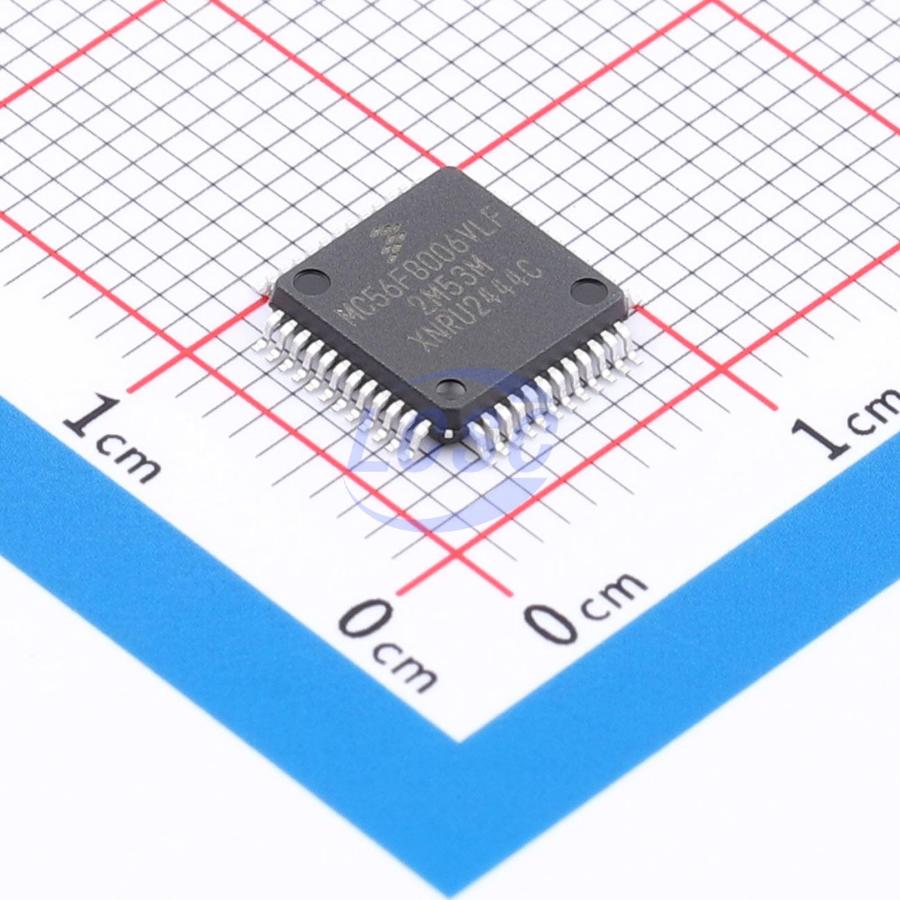

MC56F8006VLF

The 56F8006/56F8002 is a member of the 56800E core-based family of digital signal controllers (DSCs). It combines, on a single chip, the processing power of a DSP and the functionality of a microcontroller with a flexible set of peripherals to create a cost-effective solution. Because of its low cost, configuration flexibility, and compact program code, the 56F8006/56F8002 is well-suited for many applications. The 56800E core is based on a dual Harvard-style architecture consisting of three execution units operating in parallel, allowing as many as six operations per instruction cycle. The MCU-style programming model and optimized instruction set allow straightforward generation of efficient, compact DSP and control code. The instruction set is also highly efficient for C compilers to enable rapid development of optimized control applications. The 56F8006/56F8002 supports program execution from internal memories. Two data operands can be accessed from the on-chip data RAM per instruction cycle. The 56F8006/56F8002 also offers up to 40 general-purpose input/output (GPIO) lines, depending on peripheral configuration. The 56F8006/56F8002 digital signal controller includes up to 16 KB of program flash and 2 KB of unified data/program RAM. Program flash memory can be independently bulk erased or erased in small pages of 512 bytes (256 words).

Applications

• Industrial control
• Home appliances
• Smart sensors
• Fire and security systems
• Switched-mode power supply and power management
• Power metering
• Motor control (ACIM, BLDC, PMSM, SR, and stepper)
• Handheld power tools
• Arc detection
• Medical device/equipment
• Instrumentation
• Lighting ballast

Key features

• Up to 32 MIPS at 32 MHz core frequency
• DSP and MCU functionality in a unified, C-efficient architecture
• On-chip memory – 56F8006: 16 KB (8K x 16) flash memory – 56F8002: 12 KB (6K x 16) flash memory – 2 KB (1K x 16) unified data/program RAM
• One 6-channel PWM module
• Two 28-channel, 12-bit analog-to-digital converters (ADCs)
• Two programmable gain amplifiers (PGA) with gain up to 32x
• Three analog comparators
• One programmable interval timer (PIT)
• One high-speed serial communication interface (SCI) with LIN slave functionality
• One serial peripheral interface (SPI)
• One 16-bit dual timer (2 x 16 bit timers)
• One programmable delay block (PDB)
• One SMBus compatible inter-integrated circuit (I²C) port
• One real time counter (RTC)
• Computer operating properly (COP)/watchdog
• Two on-chip relaxation oscillators — 1 kHz and 8 MHz (400 kHz at standby mode)
• Crystal oscillator
• Integrated power-on reset (POR) and low-voltage interrupt (LVI) module
• JTAG/enhanced on-chip emulation (OnCE) for unobtrusive, real-time debugging
• Up to 40 GPIO lines
• 28-pin SOIC, 32-pin LQFP, 32-pin PSDIP, and 48-pin LQFP packages
