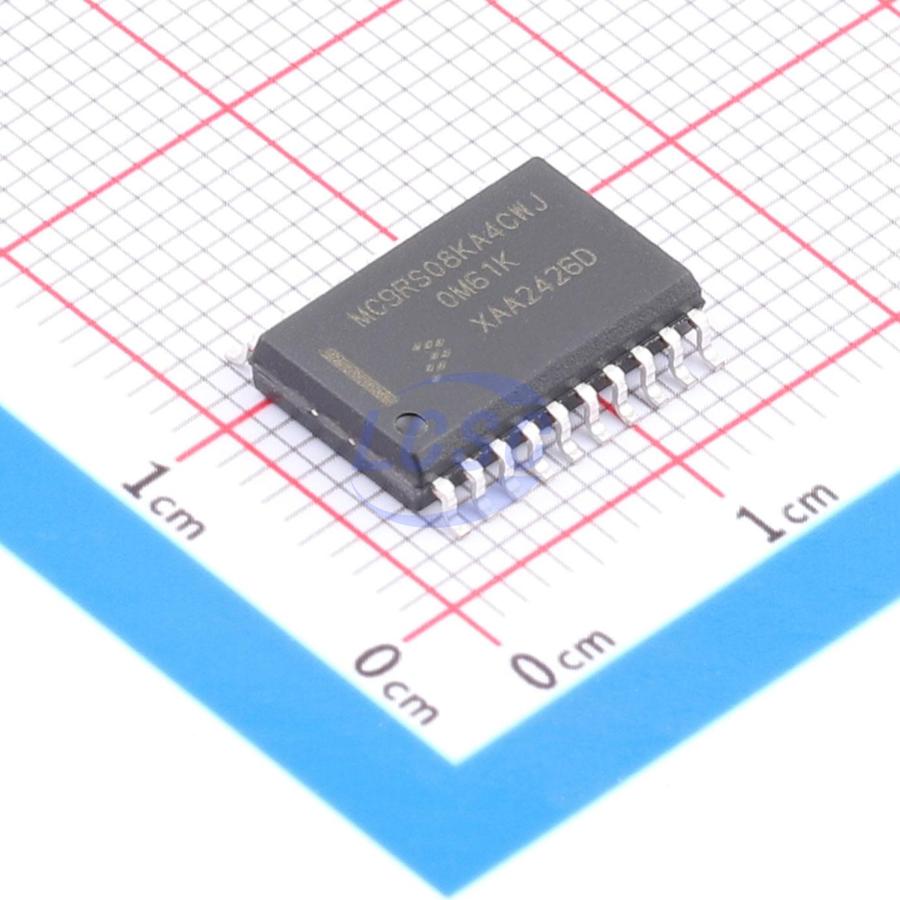

MC9RS08KA4CWJ

Key features

• Simplified S08 instruction set with added high-performance instructions
• LDA, STA, and CLR instructions support the short addressing mode; address S0000 to S001F can be accessed via a single-byte instruction
• ADD, SUB, INC, and DEC instructions support the tiny addressing mode; address S0000 to S000F can be accessed via a single-byte instruction with reduced instruction cycle
• Shadow PC register instructions: SHA and SLA
• Pending interrupt indication
• Index addressing via D[X] and X register
• Direct page access to the entire memory map through paging window
• On-chip Flash EEPROM MC9RS08KA2: 2048 bytes, MC9RS08KA1: 1024 bytes
• 63 bytes on-chip RAM
• Wait and stop
• Wakeup from power-saving modes using real-time interrupt (RTI), KBI, or ACMP
• ICS — Trimmable 20-MHz internal clock source
• Up to 10-MHz internal bus operation
• 0.2% trimmable resolution, 2% deviation over temperature and voltage range
• Computer operating properly (COP) reset running off bus-independent clock source
• Low-voltage detection with reset or stop wakeup
• MTIM — 8-bit modulo timer
• ACMP — Analog comparator: Full rail-to-rail supply operation, Option to compare to fixed internal bandgap reference voltage, Can operate in stop mode
• KBI — Keyboard interrupt ports: Three KBI ports in 6-pin package, Five KBI ports in 8-pin package
• Background debug system
• Breakpoint capability to allow single breakpoint setting during in-circuit debug
• 6-pin dual flat no lead (DFN) package: Two general-purpose input/output (I/O) pins, One general-purpose input pin, One general-purpose output pin
• 8-pin plastic dual in-line pin (PDIP) package: Four general-purpose input/output (I/O) pins, One general-purpose input pin, One general-purpose output pin
• 8-pin narrow body SOIC package: Four general-purpose input/output (I/O) pins, One general-purpose input pin, One general-purpose output pin
