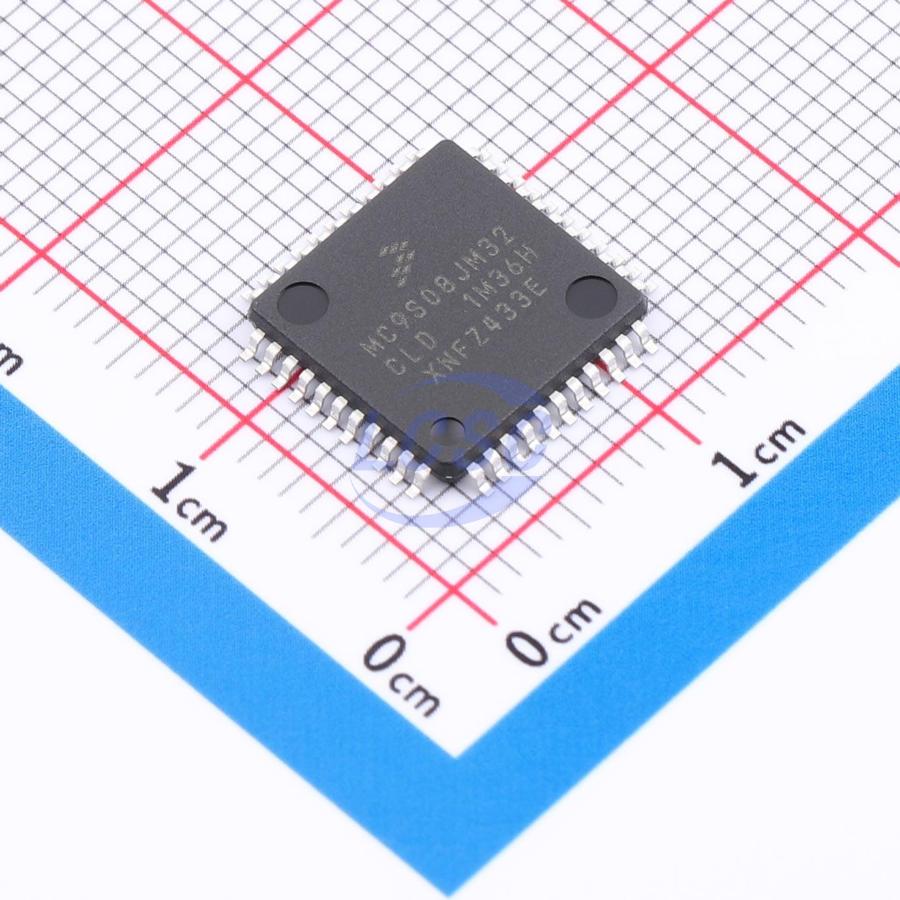

MC9S08JM32CLD

Key features

• 48-MHz HCS08 CPU (central processor unit)
• 24-MHz internal bus frequency
• HC08 instruction set with added BGND instruction
• Background debugging system
• Breakpoint capability to allow single breakpoint setting during in-circuit debugging (plus two more breakpoints in on-chip debug module)
• In-circuit emulator (ICE) debug module containing two comparators and nine trigger modes. Eight deep FIFO for storing change-of-flow addresses and event-only data. Debug module supports both tag and force breakpoints.
• Support for up to 32 interrupt/reset sources
• Up to 60 KB of on-chip in-circuit programmable flash memory with block protection and security options
• Up to 4 KB of on-chip RAM
• 256 bytes of USB RAM
• Clock source options include crystal, resonator, external clock MCG (multi-purpose clock generator) — PLL and FLL; internal reference clock with trim adjustment
• Optional computer operating properly (COP) reset with option to run from independent 1-kHz internal clock source or the bus clock
• Low-voltage detection with reset or interrupt
• Illegal opcode detection with reset
• Illegal address detection with reset
• Wait plus two stops
• USB — USB 2.0 full-speed (12 Mbps) device controller with dedicated on-chip USB transceiver, 3.3-V regulator and USBDP pull-up resister; supports control, interrupt, isochronous, and bulk transfers; supports endpoint 0 and up to 6 additional endpoints; endpoints 5 and 6 can be combined to provide double buffering capability
• ADC — 12-channel, 12-bit analog-to-digital converter with automatic compare function; internal temperature sensor
• ACMP — Analog comparator with option to compare to internal reference; operation in stop3 mode
• SCI — Two serial communications interface modules with optional 13-bit break LIN extensions
• SPI — Two 8- or 16-bit selectable serial peripheral interface modules with a receive data buffer hardware match function
• IIC — Inter-integrated circuit bus module to operate at up to 100 kbps with maximum bus loading; multi-master operation; programmable slave address; interrupt-driven byte-by-byte data transfer; 10-bit addressing and broadcast modes support
• Timers — One 2-channel and one 6-channel 16-bit timer/pulse-width modulator (TPM) modules: Selectable input capture, output compare, and edge-aligned PWM capability on each channel. Each timer module may be configured for buffered, centered PWM (CPWM) on all channels
• KBI — 8-pin keyboard interrupt module
• RTC — Real-time counter with binary- or decimal-based prescaler
• Up to 51 general-purpose input/output pins
• Software selectable pullups on ports when used as inputs
• Software selectable slew rate control on ports when used as outputs
• Software selectable drive strength on ports when used as outputs
• Master reset pin and power-on reset (POR)
• Internal pullup on RESET, IRQ, and BKGD/MS pins to reduce customer system cost
• 64-pin quad flat package (QFP)
• 64-pin low-profile quad flat package (LQFP)
• 48-pin quad flat no-lead (QFN)
• 44-pin low-profile quad flat package (LQFP)
